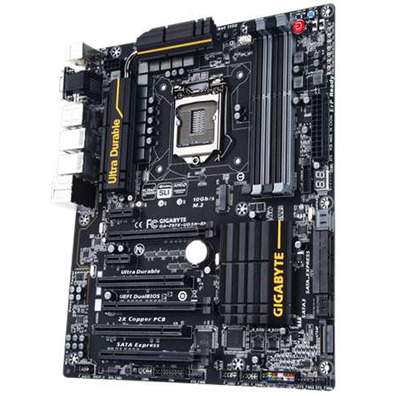

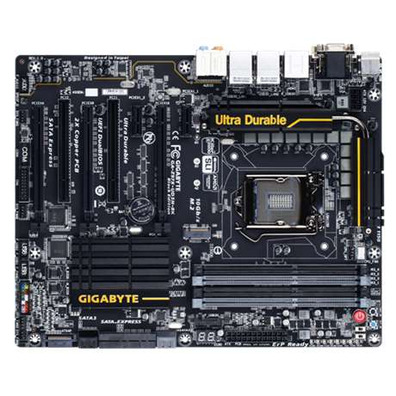

PLACA GIGABYTE Z97X-UD5H-BK

compatible memory types: DDR3-SDRAM
Type of memory slots: DIMM
Memory channels: Dual
Memory watch speeds supported: 1333, 1600 MHz
Maximum internal memory: 32 GB
Memory slots: 4
Processor family: Intel
Compatible processor: Celeron, Core i3, Core i5, Core i7, Pentium
processor socket: Socket H3 (LGA 1150)
USB 2.0, connectors: 2
USB 3.0 connectors: 1
Support hard drive interfaces: SATA
Number of SATA connectors: 9
S / PDIF output connector: Yeah.
CPU fan connector: Yeah.
ATX power connector (24 pins): Yeah.
Front panel audio connector: Yeah.
TPM connector: Yeah.
PCI Express power connectors (6 pin): 2
EPS power connector (8-pin): Yeah.
Serial port head: 1
Number of USB 2.0 ports: 2
Number of USB 3.0 ports: 6
Ethernet LAN (RJ-45) number of ports: 2
Mouse port PS / 2: 1
Headphones: 5
Microphone, input jack: Yeah.
Port of departure S / PDIF: Yeah.
Number of VGA ports (D-Sub): 1
Number of DVI.D ports: 1
Number of HDMI ports: 1
HDMI version: 1.4a
Ethernet: Yeah.
Bluetooth: No.
Component for: PC
Family of parent card components: Intel
Integrated stem card circuit: Intel Z97
Mother card, form factor: ATX
Audio output channels: 7.1
RAID levels: 0, 1, 5, 10
Audio system: Realtek ALC1150
Windows supported operating system: Yeah.
Maximum memory of graphics adapter: 1000 MB
Support for parallel process: 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX
Maximum resolution: 4096 x 2160 Pixels
Number of supported screens: 3
x1 PCI Express slots: 2
x16 PCI Express slots: 1
PCI slots: 2
Types of BIOS: UEFI AMI
BIOS, also or by memory: 128 MB
ACPI version: 5.0
Jumper Clear CMOS: Yeah.
BIOS button switch: Yeah.
CMOS cleaning button: Yeah.
Width: 30.5 cm
Depth: 24.4 cm
Software included: Norton Internet Security (OEM version)\ nIntel Rapid Start Technology\ nIntel Smart Connect Technology\ nIntel Smart Response Technology
