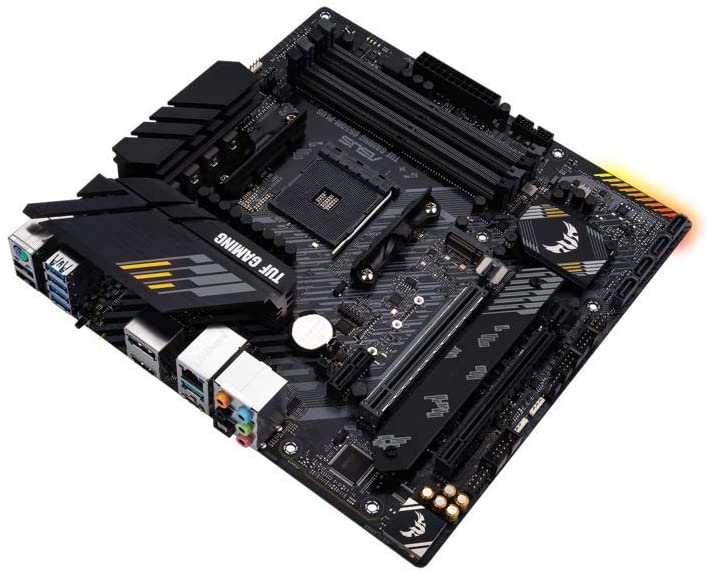

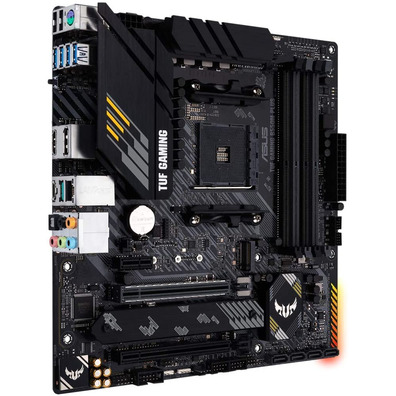

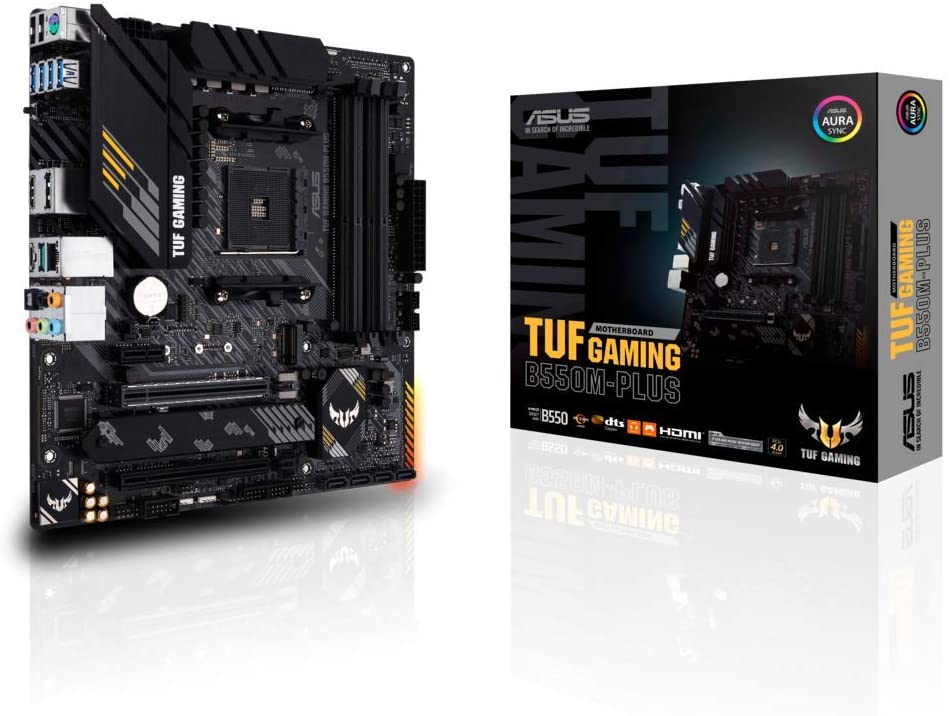

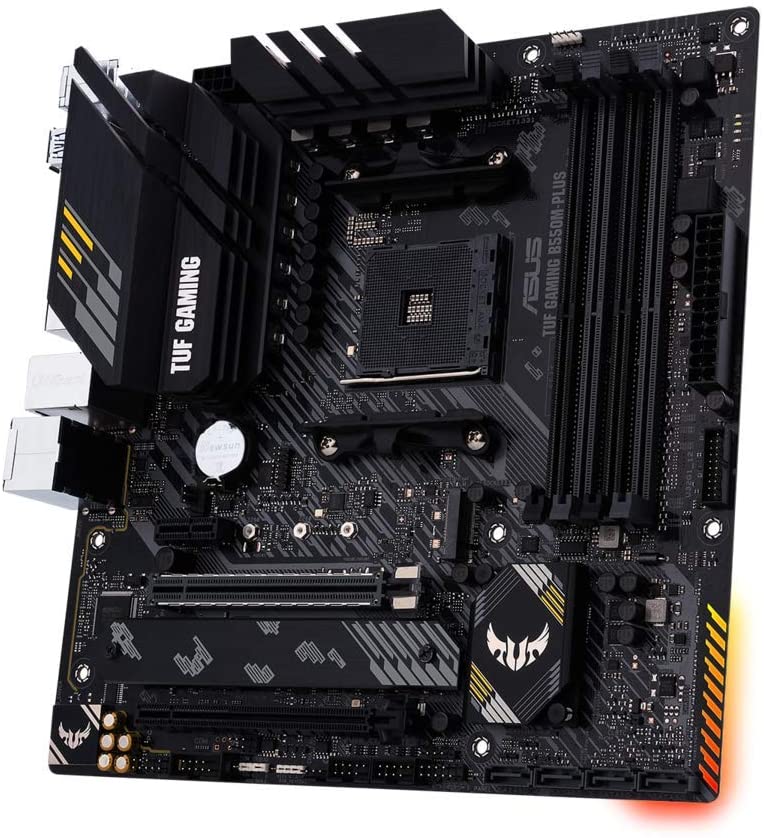

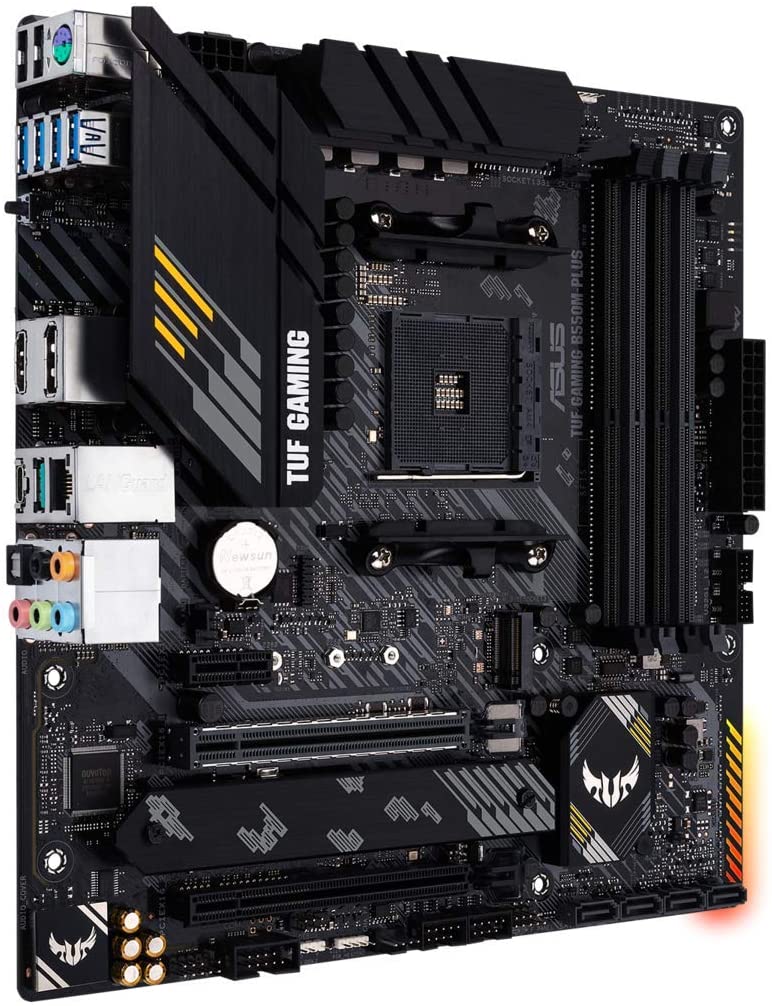

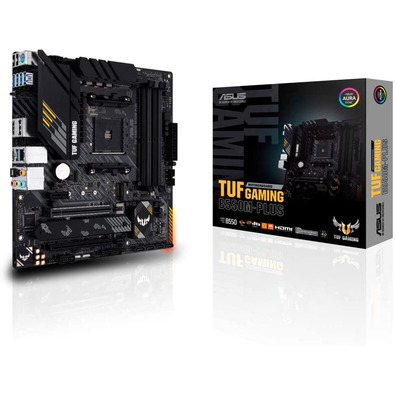

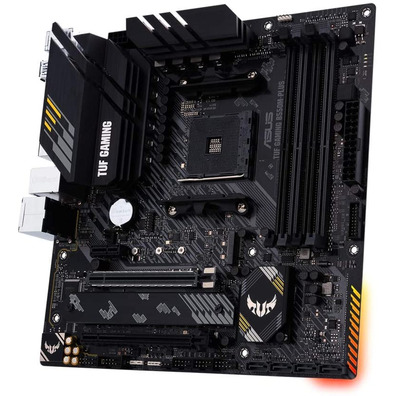

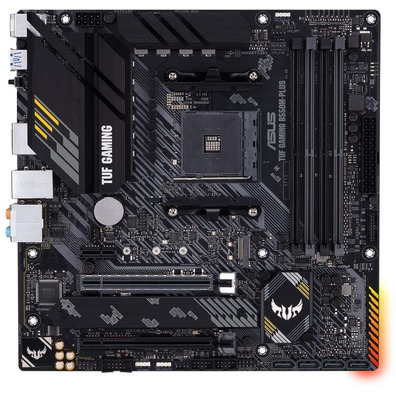

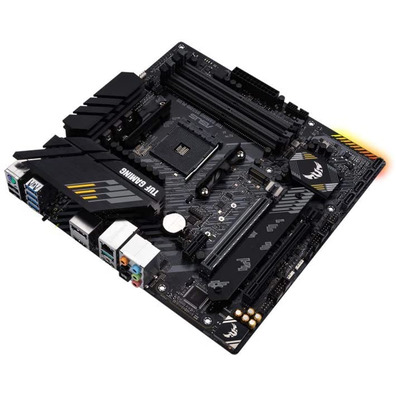

ASUS TUF Gaming B550M Plus AM4 Base Plate

ASUS TUF Gaming B550M Plus AM4 Base Plate

The TUF Gaming B550M-Plus distils the essential elements of AMD's latest platform and combines them with mirrored features and proven durability. With military-grade components, improved power supply solutions, and complete cooling options, these motherboards offer sound performance and unbreakable stability.

By choosing a TUF Gaming board, you will benefit from the TUF Gaming Alliance, a close collaboration between ASUS and a selected partner &oatern to facilitate easy assembly and provide chassis and components with a game-play and guaranteed compatibility.

Equipped with a refreshed power supply and complete cooling options, the TUF Gaming B550M-Plus is the perfect base to mount your AMD gaming &orecon n &o with a large n &uatecos.

The TUF Gaming B550M-Plus VRM uses Dr. MOS power stages that consolidate low/high profile MOSFETS and controllers into a package capable of delivering the power and efficiency needed for new AMD processors.

TUF COMPONENTS

• TUF CHOKES: TUF coils with military certification enhance the stability of the system by providing a CPU-consistent feed.
• TUF CONDENSERS: Tolerate 20% m temperature and last 5 times m &aecs.
• Digi + VRM: The m ó tensi ón Digi + (VRM) regulator is one of the best in the industry when it comes to supplying a clean and accurate CPU to the CPU.

The TUF Gaming base plates are ñ ed so that you can easily mount and configure them, even if you have no previous experience. With a TUF Gaming Alliance ecosystem that facilitates the compatibility and selection of parts and a software portal with everything you need for your configuration, the TUF Gaming motherboards allow you to create your sue ñ s gaming equipment without complications.

TUF gaming alliance

TUF Gaming Alliance is born out of the will to create an ecosystem of parts that will ensure compatibility with a wide variety of chassis, coolers, DRAM memory kits, power supplies and much more. We continue to expand the number of partners to enrich todav íres the offer of the TUF Gaming Alliance.

SafeSlot

SafeSlot is a new ñ or PCI Express slot created by ASUS that provides greater retention force and cross-resistance. Manufactured by insert-molding, SafeSlot integrates the slot with reinforced metal, resulting in a resilient m &aws connector that is anchored to the PCB by additional welding points.

ESD OPTIONS

ESD Guards prevents ñ os from electrotest downloads. Up to +/-10kV for air discharges and +/-6kV for contact downloads. Figures that vastly exceed the industry's standard of +/-6kV and +/-4kKV.

TUF LANGuard

TUF LANGuard is a military-grade innovaci that, thanks to the coupling of the ñ to the surface-mounted premium capacitors, increases the performance of the LAN connection and protects it against lightning and electricity.

SURGE PROTECTED DRAM

Interchangeable fuses protect all DRAM connectors and slots against intensity peaks and short circuits.

STAINLESS STEEL REAR I/O

The rear connection panels are made of stainless steel coated with a chrome xide &o layer that allows them to pass a 72-hour corrosive salt spray test, 3 times a long time that the industry is in the industry.

The TUF Gaming B550M-Plus is a complete package for games equipped with a long list of functions that improve the gaming experience, such as ultrarr network connections to play on the line in the best conditions, quality audio with functions to detect the position of enemies in FPS games, and the integrated RGB lighting system that synchronizes with the accessories to create custom game &otracers.

ASUS TUF Gaming B550M Plus:

• CPU
  • Integrated AMD AM4 Socket 3rd Gen AMD Ryzen ™ Processors *
  • * Visit www.asus.com for the list of supported CPUs
  • Chipset
    • AMD B550
  • Memory
    • 4 x DIMM Memory, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC
    Un-buffered
    • Intel   Extreme Memory Profile (XMP )
    • OptiMem
    • * 10th Gen Intel   Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Gr &arecufica
    • 1 x DisplayPort 1.2
    • 1 x HDMI 2.1 (4K@60HZ)
    • Multi-GPU Compatible
    • Expansion Slots &oatucn
      • 3rd Gen AMD Ryzen   Processors
      • 1 x PCIe 4.0 x16 (x16 mode)
      • 1 x PCIe 3.0 x16 (x4 mode)
      • 1 x PCIe 3.0 x1
      • * Support PCIe bifurcation for RAID on CPU function.
      • Storage
        • Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports
        • 3rd Gen AMD Ryzen   Processors:
        • 1 x z &o calo 3 M. 2 with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
        • AMD B550 Chipset:
        • 1 x z &oquiescalo 3 M. 2 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support
        • 4 x SATA 6Gb/s ports,
        • Compatible with Raid 0, 1, 10
      • • Realtek RTL8125B 2.5Gb Ethernet
        • TUF LANGuard
      • Audio
        • Realtek ALC S1200A 7.1 Surround Sound CODEC
        • high definition &oatro
        Multi-streaming, Jack-retasking on front panel, up to 24-Bit/192kHz playback
        • Character &iacuties of audio:
        • Output S/PDIF
        • Exclusive DTS Custom for GAMING Headsets.
        • Audio Isolation: Secure the separation of sound and digital ñ s, which reduces interference noticeably.
        • Audio cover
        • Dedicated audio sheets: Separate layers for the right and left channels protect them from audio.
        • Condensers manufactured in Jap &oatecon with a realistic sound, c & natural sound
        USB ports
        • Rear USB Port (Total 8)
        • 2 x USB 3.2 Gen 2 port (s) (1 x Type A + 1 x Type C)
        • 4 x USB 3.2 Gen 1 port (s) (4 x Type A)
        • 2 x USB 2.0 port (s) (2 x Type A)
        • Front USB Port (Total 6)
        • 2 x USB 3.2 Gen 1 port (s) (2 x Type A)
        • 4 x USB 2.0 port (s) (4 x Type A)
      Software Features
      • ASUS Exclusive Software
      • Aura Creator
      • Aura Sync
      • AI Suite 3
      • Performance And Power Saving Utility
      • Digi + VRM
      • Fan Xpert 2 +
      • EZ update
      • TUF GAMING CPU-Z
      • AI Charger
      • ASUS Turbo LAN
      • DAEMON Tools
      • DTS Custom for GAMING Headsets
      • Norton Anti-virus software (Free Trial for 60 days)
      • WinRAR
      • UEFI BIOS
      • ASUS EZ DIY
      • ASUS CrashFree BIOS 3
      • ASUS EZ Flash 3
      • ASUS UEFI BIOS EZ Mode
      • I/O panel I/O
        • 1 x DisplayPort
        • 1 x HDMI
        • 1 x Output S/PDIF
        • 1 x LAN (2.5G) port (s)
        • 1 x Bot USB BIOS Flashback
        • 2 x USB 3.2 Gen 2 (blue color) (1 x Type A + 1 x Type C)
        • 4 x USB 3.2 Gen 1 (blue) Type A
        • 2 x USB 2.0
      • Internal I/O
        • 2 x Connector (s) USB 2.0 supports (n) 4 USB 2.0 extra
        • 1 x Z ó s 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
        • 2 x Plug-in
        s) SATA 6Gb/s
        • 1 x Chassis fan
        s)
        • 1 x Connector Fan (s)
        • 1 x Feed Connector 24-Contact EATX
        • 1 x Front-panel Audio Connector (AAFP)
        • 1 x Addressable Gen 2 header (s)
        • 1 x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
        • 1 x Jumper Clear CMOS
        • 1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
        SATA & PCIE 3.0 x 4 mode)
        • 1 x 8-pin EATX 12V Power connectors
        • 1 x Connector port COM
        • 1 x Speaker
      • User manual
      • I/O Protection
      • 2 x SATA 6Gb/s Cable (s)
      • 1 x Support DVD
      • 1 x TUF Certification Card
      • 1 x TUF Gaming Sticker
      • 1 x M. 2 SSD screw package (s)
      • 1 x M. 2 Rubber Package (s
      • 256 Mb Flash ROM, UEFI AMI
      • Operating system
        • Windows   10 64-bit
      • Format of f &aUtibrica
        • 9.6-inch x 9.6-inch
        24.4 cm x 24.4cm)
