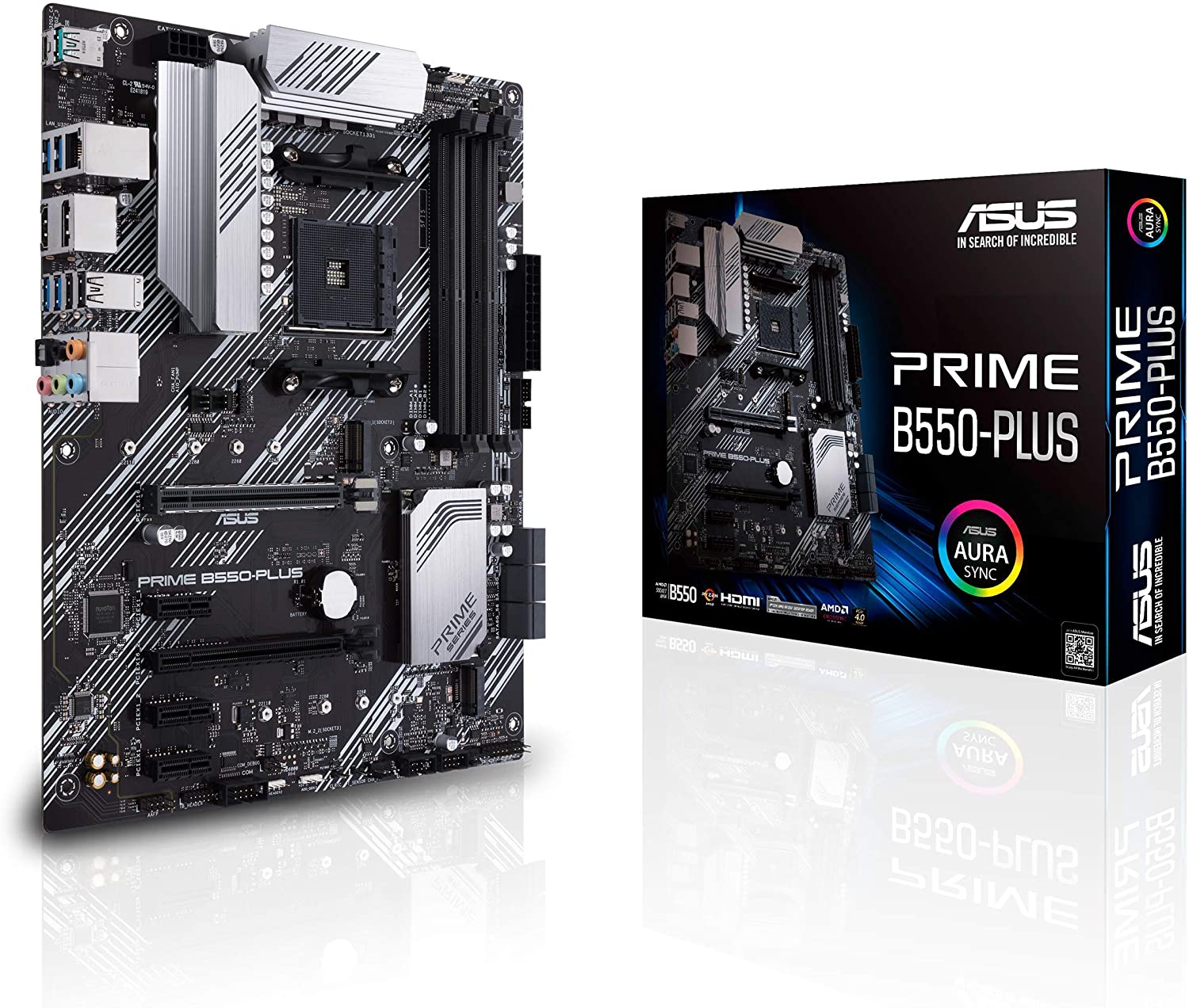

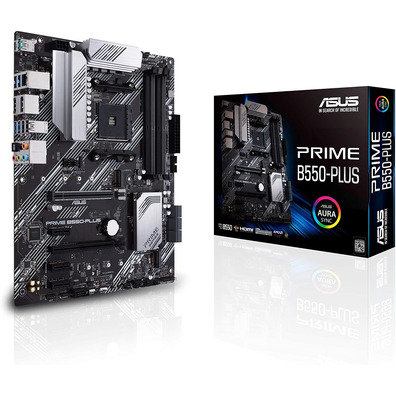

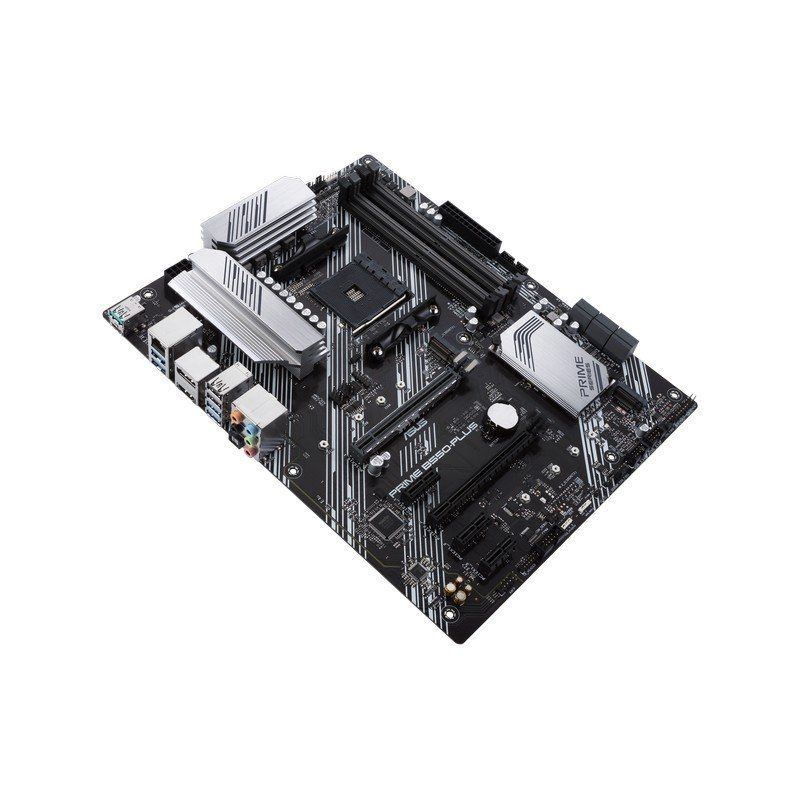

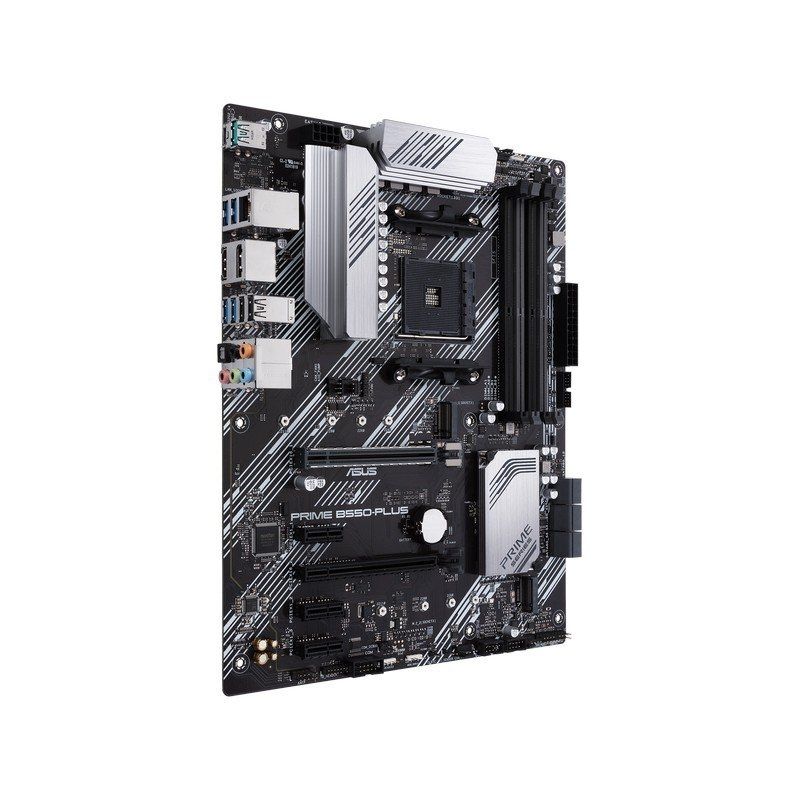

ASUS Prime B550 Plus AM4 Base Plate

ASUS Prime B550 Plus AM4 Base Plate

aj ú stala as you like: The ASUS Prime series includes a variety of controls. The B550 motherboards help you customize all aspects of your system so that you can work your way, have the maximum performance and be productive.

The ASUS Prime series is ñ ada to take advantage of the full potential performance of AMD Ryzen 3 ª Gen. Equipped with a powerful ñ or power supply, complete cooling solutions, and smart tuning options, the base plates of the Prime B550 series include very intuitive performance settings v í software and firmware.

• Advanced refrigerability: M &utiles ltiples t &eUteres rmicos and connectors h &iUterns fan
• Disiper VRM and rmico pads that optimize the transfer t &eumbrica of the MOSFETS and chokes.
• Dise ñ ada to handle the n &uanties and the additional bandwidth that characterizes the processors AMD
• Power supply system stable, refrigeraci n intuitive, options of connectivity vers &aantits
• They provide a quality of audio without p éRGB lighting and lighting controls to customize the system

ASUS Prime B550 Plus Specifications:

• AMD AM4 Socket 3rd Gen AMD Ryzen   Processors *
• * Visit www.asus.com for the list of supported CPUs.
• Chipset
  • AMD B550
• Memory
  • 4 x DIMM Memory, Max. 128GB, DDR4 4400 (O.C) /4000 (O.C. )/3200/3000/2800/2666/2400/ 2133 MHz ECC and non-ECC, Un-buffered
  • Dual Channel Memory Architecture
  • Visit www.asus.com or the user manual for the list of qualified vendors (QVL)
  • Gr
    • 1 x DisplayPort 1.2 *
    • 1 x HDMI 2.1 (4K@60HZ)
    • *Graphics specifications may vary between CPU types.
    • Multi-GPU Compatible
    • 3rd Gen AMD Ryzen   Processors
    • 1 x PCIe 4.0 x16 (x16 mode)
    • 3 x PCIe 3.0 x1 * 1
    • * Support PCIe bifurcation for RAID on CPU function
    • Storage
      • Total supports 2 x M. 2 slots and 6 x SATA 6Gb/s ports
      • 3rd Gen AMD Ryzen   Processors:
      • 1 x z &oquiescalo 3 M. 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode)
      • AMD B550 Chipset:
      • 1 x z &o 3 M. 2 with M Key, compatible with storage devices 2242/2260/2280/22110 (SATA & X4 PCIE mode) * 2
      • 6 x SATA 6Gb/s, * 2
      • Compatible with Raid 0, 1, 10
    • • Realtek   RTL8111H
      • ASUS LANGuard
    • Audio
      • Realtek ALC887 7.1 High-definition audio CODEC
      • Compatible with: Jack-detection, Multi-streaming, Jack-retasking on front panel, up to 24-Bit/192kHz
      • Character &iacuties of audio:
        • Output S/PDIF on rear panel
        • Audio insulation: Secure the separation of sound and digital ñ s, which reduces interference noticeably.
        • Dedicated audio layers: The separate layers for the right and left channels protect them from audio.
        • Lighting up your computer with the ñ or illuminated audio.
        • Antipop circuit: Reduce the noise when starting the equipment
        • Condensators manufactured in Jap &o with a realistic sound, clido and natural
        • USB ports
          • Rear USB Port (Total 8)
          • 2 x USB 3.2 Gen 2 port (s) (1 x Type A + 1 x Type C)
          • 4 x USB 3.2 Gen 1 port (s) (4 x Type A)
          • 2 x USB 2.0 port (s) (2 x Type A)
          • Front USB Port (Total 6)
            • 2 x USB 3.2 Gen 1 port (s) (2 x Type A)
            • 4 x USB 2.0 port (s) (4 x Type A)
            Software Features
            • ASUS Exclusive Software
            • Armoury Crate
            • Aura Creator
            • Aura Sync
            • AI Suite 3
            • Performance And Power Saving Utility
            • Digi + VRM
            • Fan Xpert 4
            • EZ update
            • ASUS CPU-Z
            • AI Charger
            • DAEMON Tools
            • Norton Anti-virus software (Free Trial for 60 days)
            • WinRAR
            • UEFI BIOS
            • ASUS EZ DIY
            • ASUS CrashFree BIOS 3
            • ASUS EZ Flash 3
            • ASUS UEFI BIOS EZ Mode

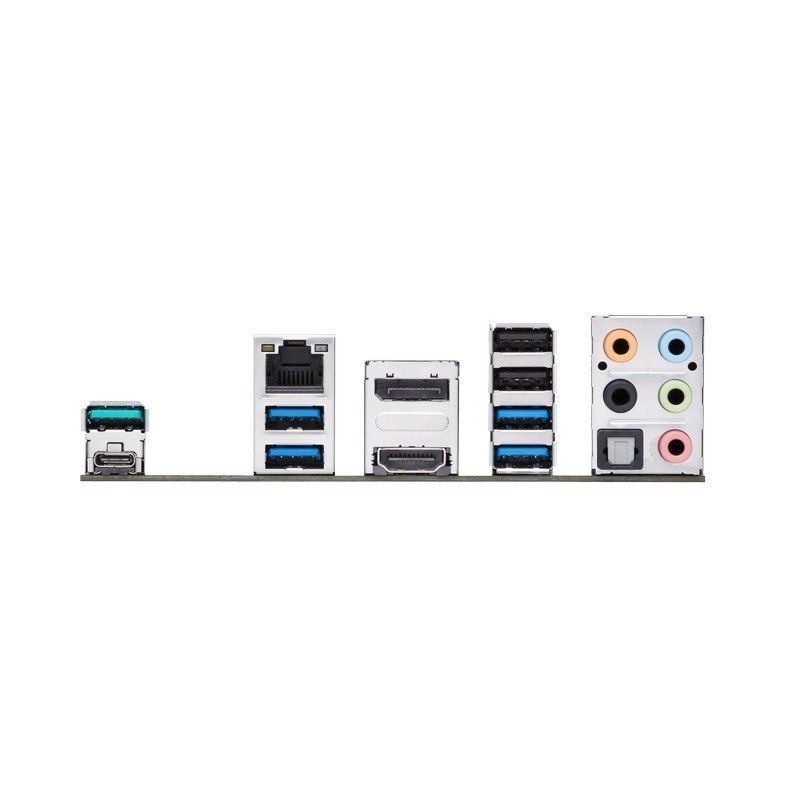

            • I/O panel I/O
              • 1 x DisplayPort
              • 1 x Network (RJ45)
              • 1 x HDMI
              • 1 x Output S/PDIF
              • 2 x USB 3.2 Gen 2 (blue)
              • 4 x USB 3.2 Gen 1 (blue) Type A
                x USB 2.0
              1 x Z ó calo 2 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode)
              • 2 x Aura Connector for RGB strips
              • 6 x Connector (s) SATA 6Gb/s
              • 1 x Connector (s) CPU fan
              • 3 x Chassis fan (s) chassis fan
              • 1 x AIO_PUMP connector
              • 1 x 24-contact EATX Power Fan Connector
              • 1 x Front panel audio connector
              AAFP)
              • 1 x Addressable Gen 2 header (s)
              • 1 x USB 3.2 Gen 1 port (s)
              • 1 x Jumper Clear CMOS
              • 1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
              • 1 x SPI TPM header
              • 1 x 8-pin EATX 12V Power connectors
              • 1 x System panel connector
            x I/O connector

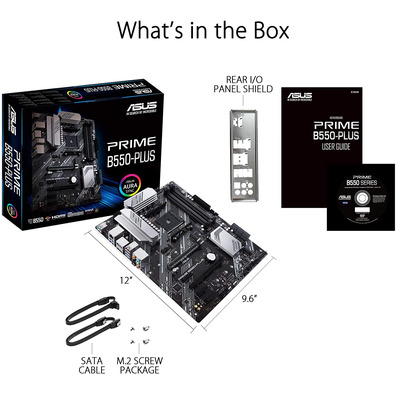

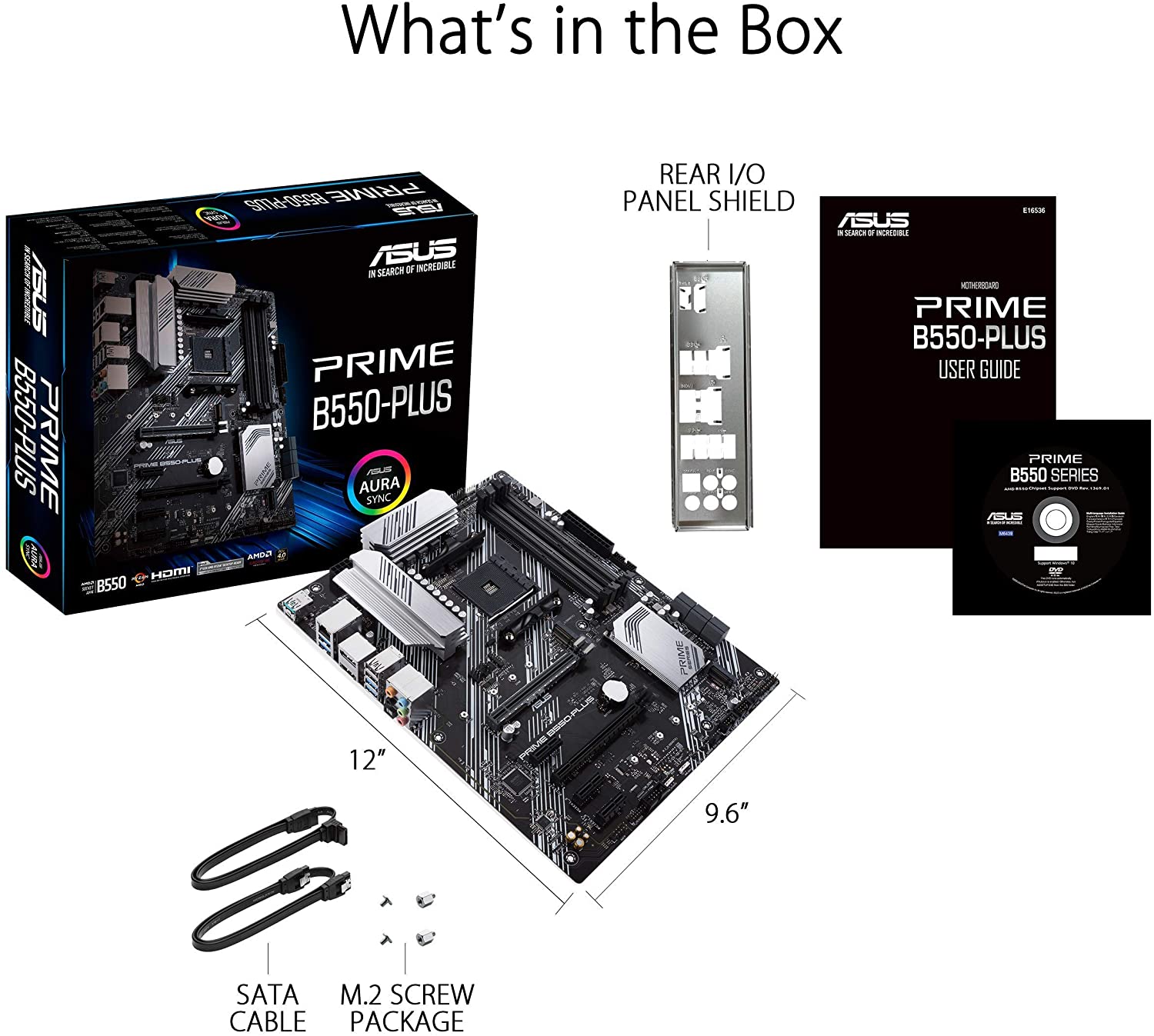

            • • 2 x Cable (s)
              6Gb/s
              • 1 x DVD media
              • 1 x M. 2 SSD screw package (s)
            • 256 Mb Flash ROM, UEFI AMI BIOS
            Capacity of gesti &oatern n
            • WOL by PME, PXE
            • Windows   10 64-bit
            System
            • Format of the ATX
            • 12-inch x 9.6-inch (30.5 cm x 24.4cm)
