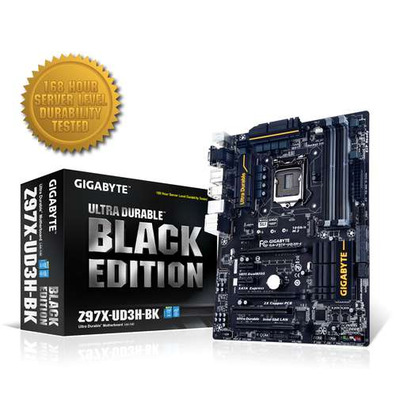

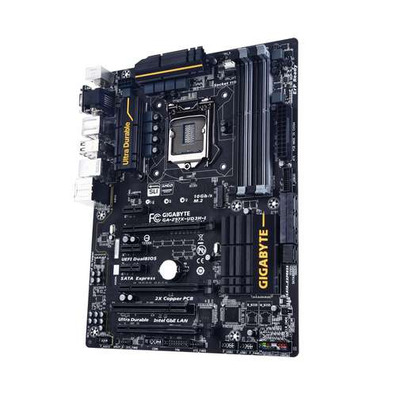

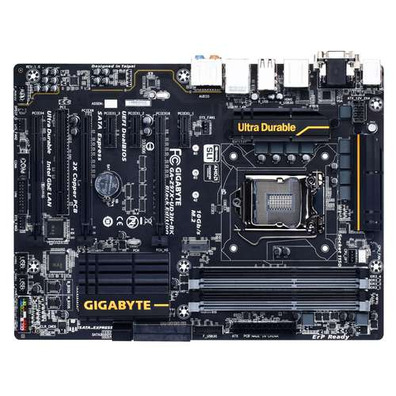

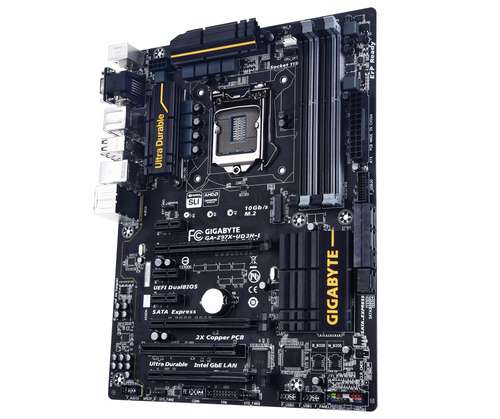

PLACA GIGABYTE Z97X-UD3H-BK

compatible memory types: DDR3-SDRAM
Type of memory slots: DIMM
Memory channel support: Dual
ECC No: Yeah.
Memory watch speeds supported: 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 2933, 3000 MHz
Maximum internal memory: 32 GB
Memory slots: 4
Processor family: Intel
Compatible processor: Celeron, Core i3, Core i5, Core i7, Pentium
processor socket: Socket H3 (LGA 1150)
USB 2.0, connectors: 2
USB 3.0 connectors: 1
Support hard drive interfaces: Serial ATA III
Number of SATA connectors: 6
S / PDIF output connector: Yeah.
CPU fan connector: Yeah.
ATX power connector (24 pins): Yeah.
Fan connector: Yeah.
TPM connector: Yeah.
Number of SATA III connectors: 6
Serial port head: 1
Number of USB 2.0 ports: 4
Number of USB 3.0 ports: 4
Ethernet LAN (RJ-45) number of ports: 1
Mouse port PS / 2: 2
Microphone, input jack: Yeah.
Port of departure S / PDIF: Yeah.
Number of VGA ports (D-Sub): 1
Number of DVI.D ports: 1
Number of HDMI ports: 1
HDMI version: 1.4a
Ethernet: No.
Ethernet interface type: Gigabit
Component for: PC
Family of parent card components: Intel
Integrated stem card circuit: Intel Z97
Mother card, form factor: ATX
Audio output channels: 7.1
RAID levels: 0, 1, 5, 10
Audio system: High Definition Audio
Maximum memory of graphics adapter: 1000 MB
Support for parallel process: 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX
Maximum resolution: 4096 x 2160 Pixels
Number of supported screens: 3
PCI Express x1 (Gen 2.x) slots: 3
PCI Express x16 Gen (2.x) slots: 1
PCI Express x16 Gen (3.x) slots: 2
PCI slots: 1
Types of BIOS: UEFI AMI
BIOS, also or by memory: 128 MB
ACPI version: 5.0
Jumper Clear CMOS: Yeah.
Width: 30.5 cm
Depth: 22.5 cm
