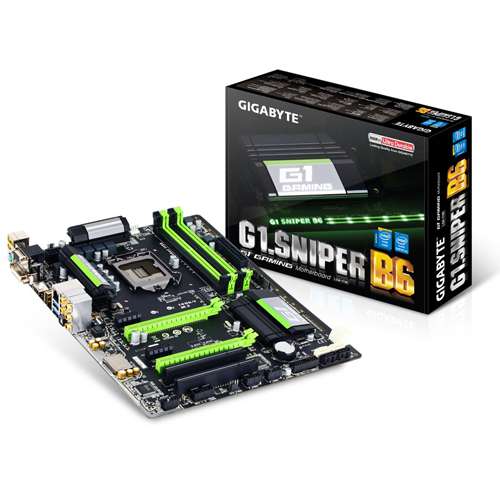

PLACA GIGABYTE G1.SNIPER B6

• Noise protection with LED lighting
• Support MultiGPU
• GIGABYTE Ultra Durable Plus Technology
• M.2 for SSD disks with up to 10 Gb / s data transfer
• Intel GbE LAN with CFOS Internet acceleration software
• Supports the 4th generation of Intel Core processors
• Intel LAN with ESD protection
• GIGABYTE Hybrid Digital Power Engine
• USB port with DAC-UP
• AMP-UP Technology Audio Technology GIGABYTE
• HD Realtek ALC1150 Audio with 115dB SNR and integrated audio amplifier
• GIGABYTE UEFA DualBios
• High-end Nicicon audio capacitors

Processor:

• Support for Intel Core i7 / Intel Core i5 / Intel Core i3 / Intel Pentium / Intel Celeron in LGA1150 packaging
• Caché L3 varies according to CPU
• Chipset Intel B85 Express

Memory:

• 4 x 1.5V DDR3 DIMM that support up to 32 GB of memory in the system
• Dual Channel memory architecture
• Supports DDR3 1600 / 1333 MHz memory modules
• Support for non-ECC memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Integrated graph:

• Integrated Graphic Processor Intel HD Graphics Support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160
• 1 x DVI.D port, which supports a maximum resolution of 1920x1200
• 1 x D-Sub port, which supports a maximum resolution of 1920x1200
• Maximum shared memory: 1 GB.
• Support for up to 3 displays at the same time

Audio:

• Codec Realtek ALC1150
• Burr Brown ® OPA2134 IT operational amplifier
• High-definition audio
• 2 / 4 / 5.1 / 7.1-channel
• S / PDIF output support

LAN:

• Chip Intel GbE LAN (10 / 100 / 1000 Mbit)
• Expansion Zócalos:
• 1 x PCI Express slot x16
• 1 x PCI Express x16, to x4 (PCIEX4)
• 2 x PCI Express slot x1
• 2 x PCI slot

Multi Graphic Technology:

• Supports AMD CrossFire technology
• Storage interface:
• 4 x SATA 6Gb / s connector
• 2 x SATA 3Gb / s connectors
• 1 x M.2 Socket 3 connector

USB:

• 4 x USB 3.0 / 2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
• 7 x USB 2.0 / 1.1 ports (3 ports on the back panel, 4 ports available through internal USB connectors)

E / S internal connectors:

• 1 x M.2 Socket 3 connector
• 1 x audio gain control switch
• 1 x ATX 12V 8-pin power connector
• 3 x system fan connector
• 1 x CPU fan connector
• 1 x front panel connector
• 1 x main power connector ATX 24-pin
• 1 x audio connector on front panel
• 4 x SATA 6 Gb / s connectors
• 1 x USB 3.0 / 2.0
• 2 x USB 2.0 / 1.1 connectors
• 1 x serial port connector
• 1 x Clear CMOS jumper
• 1 x S / PDIF Out connector
• 2 x SATA 3Gb / s connector

Panel E / S

• 3 x USB 2.0 / 1.1 ports
• 1 x optical connector S / PDIF Out
• 1 x RJ-45 port
• 2 x USB 3.0 / 2.0 port
• 1 x DVI.D port
• 1 x D-Sub port
• 1 x keyboard / mouse port PS / 2
• 1 x HDMI
• 5 x audio jack connector (central / subwoofer speaker output, rear speaker output, line input, line output, microphone input)

E / S controller:

• Chip controller E / S iTE

Hardware monitoring:

• CPU / System temperature detection
• System voltage detection
• Speed control for CPU / System fan
• CPU / System fan speed detection
• Warning of CPU / System fan failure
• CPU / system overheating warning

BIOS:

• 2 x 64 Mbit flash
• License for UEFI BIOS use by AMI
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Supports DualBios

Other Features:

• Support for Q-Flash
• Supports Xpress Install
• Support for APP Center
• Supports EasyTune
• Support EZ Setup
• USB Blocker
• Support for On / Off Charge

Operational system:

• Support for Windows 8.1 / 8 / 7

Format:

• ATX Form Factor; 30.5cm x 23.4cm
