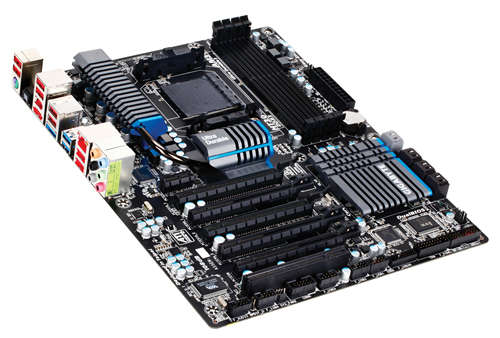

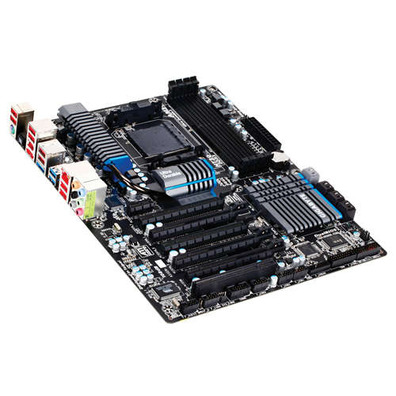

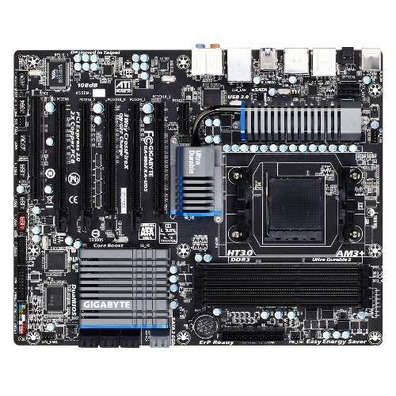

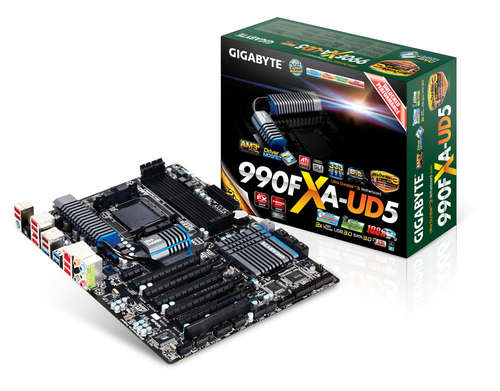

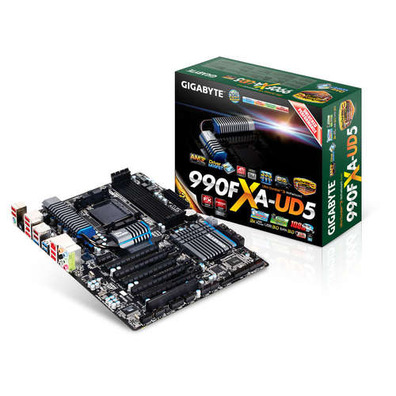

PLACA GIGABYTE 990FXA-UD5
£144,49
You will receive your order within 5 - 6 days if you do it from Monday to Friday before 18 pmView options
- Support the new AM3 + FX / AM3 Phenom series? II of AMD processors
- AMD SB950 provides 6 native SAT3 ports at a speed of 6Gbps and RAID support 0, 1, 5 and 10
- 5 PCI-E 2.0 interfaces with multi-screen support with 3way AMD CrossFireX and SLI
- 3 USB ports with GIGABYTE On / Off Charge technology
- Support USB 3.0 with transfer rates up to 5 Gbps
- Support audio Dolby Home Theater
- Reproduction of Blu-ray and HD DVD with a 108dB noise ratio
- Design - or revolutionary in terms of energy saving thanks to Easy Energy Saver technology
- Ultra Durable Technology? 3 with high quality copper cooling for lower operating temperature
- Advanced CPU VRM power design with 8 + 2 phases with support for AMD high-TDP CPUs
- Turbo XHD technology allows easy improvement of hard drive performance
- Support of hard drives up to 3TB thanks to the Hybrid EFi technology included in our DualBIOS patented
compatible memory types: DDR3-SDRAM
Type of memory slots: DIMM
Memory channels: Dual
Memory voltage: 1.5V
Memory watch speeds supported: 1066, 1333, 1600, 1866, 2000 MHz
Maximum internal memory: 32 GB
Memory slots: 4
Processor family: AMD
Compatible processor: Athlon II X2, Athlon II X3, Athlon II X4, Phenom II X2, Phenom II X4, Phenom II X6
processor socket: Socket AM3 +
Maximum SMP processor number: 1
System bus data transfer rate: 5.2 GT / s
USB 2.0, connectors: 3
USB 3.0 connectors: 1
Support hard drive interfaces: Serial ATA III
Number of SATA connectors: 8
S / PDIF output connector: Yeah.
CPU fan connector: Yeah.
ATX power connector (24 pins): Yeah.
Number of IEEE1394 connectors: 1
Front panel audio connector: Yeah.
Fan connector: Yeah.
TPM connector: Yeah.
Number of SATA III connectors: 8
EPS power connector (8-pin): Yeah.

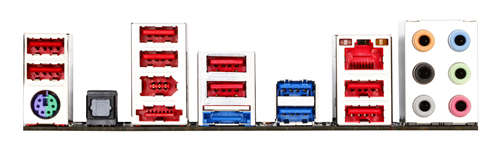

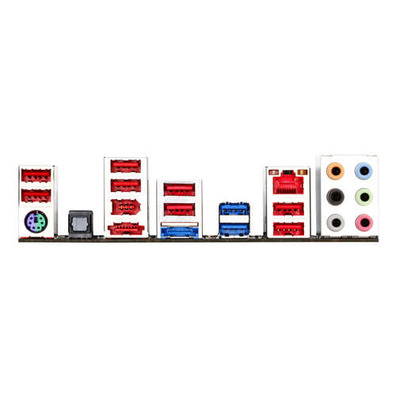

Number of USB 2.0 ports: 8
Number of USB 3.0 ports: 2
Ethernet LAN (RJ-45) number of ports: 1
Number of eSATA ports: 2
Mouse port PS / 2: 1
IEEE 1394 / Firewire number of ports: 1
Headphones: 6
Microphone, input jack: Yeah.
Port of departure S / PDIF: Yeah.
Network characteristics: Gigabit Ethernet
LAN controller: Realtek RTL8111E
Ethernet interface type: Gigabit
Component for: PC
Family of parent card components: AMD
Integrated stem card circuit: AMD 990FX
Mother card, form factor: ATX
Audio output channels: 7.1
RAID levels: 0, 1, 5, 10, JBOD
Audio system: HD
Support for parallel process: 2-Way CrossFireX, 3-Way CrossFireX
Graphic board adapter: No.
x1 PCI Express slots: 1
x4 PCI Express Slots: 2
x8 PCI Express Slots: 1
x16 PCI Express slots: 2
PCI slots: 1
Types of BIOS: AWARD
ACPI version: 1.0b
Width: 30.5 cm
Depth: 24.4 cm
Test software: Norton Internet Security
Interface controller type: Marvell 88SE9172
Conparent operating systems: Microsoft Windows 7 / Vista / XP
