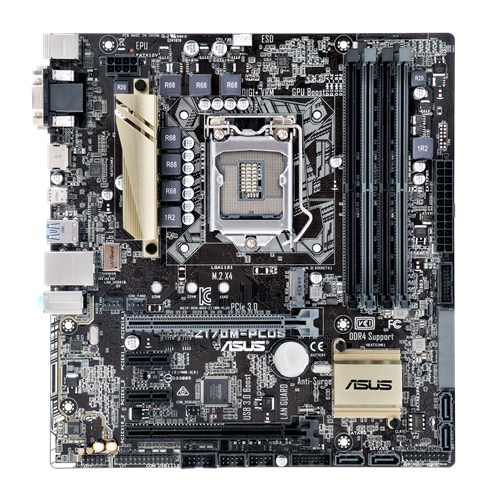

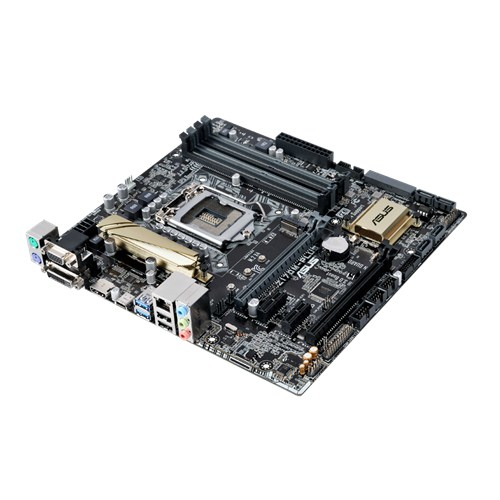

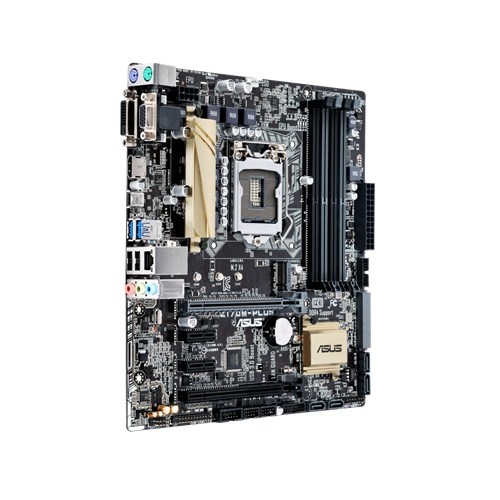

PLACA ASUS Z170M-PLUS, INTEL, 1151, Z170

compatible memory types: DDR4-SDRAM
Type of memory slots: DIMM
Memory channels: Dual
ECC No: Yeah.
Memory watch speeds supported: 2133, 2400, 2600, 2666, 2800, 2933, 3000, 3100, 3200, 3300 MHz
Maximum internal memory: 64 GB
Memory without buffer: Yeah.
Memory slots: 4
Processor family: Intel
Compatible processor: Celeron, Core i3, Core i5, Core i7, Pentium
USB 2.0, connectors: 2
USB 3.0 connectors: 2
Support hard drive interfaces: SATA, Serial ATA III
Number of SATA connectors: 1
S / PDIF output connector: Yeah.
CPU fan connector: Yeah.
Number of COM connectors: 1
ATX power connector (24 pins): Yeah.
Number of EATX power connectors: 1
Number of chassis fan connectors: 2
Front panel audio connector: Yeah.
TPM connector: Yeah.
Number of SATA III connectors: 6
EPS power connector (8-pin): Yeah.
Number of M.2 (M) slots: 1
Number of USB 2.0 ports: 2
Number of USB 3.0 ports: 2
Ethernet LAN (RJ-45) number of ports: 1
Mouse port PS / 2: 2
Headphones: 1
Microphone, input jack: Yeah.
Number of VGA ports (D-Sub): 1
Number of DVI.D ports: 1
S / PDIF in port: Yeah.
Number of HDMI ports: 1
Ethernet: Yeah.
Ethernet interface type: Gigabit
Component for: PC
Family of parent card components: Intel
Mother card, form factor: Micro ATX
Audio output channels: 7.1
RAID levels: 1, 5, 10
Support for parallel process: Quad-GPU CrossFireX
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 Gen (3.x) slots: 2
Types of BIOS: UEFI AMI
BIOS, also or by memory: 16 MB
ACPI version: 5.0
Jumper Clear CMOS: Yeah.
Width: 24.4 cm
Depth: 22.7 cm
