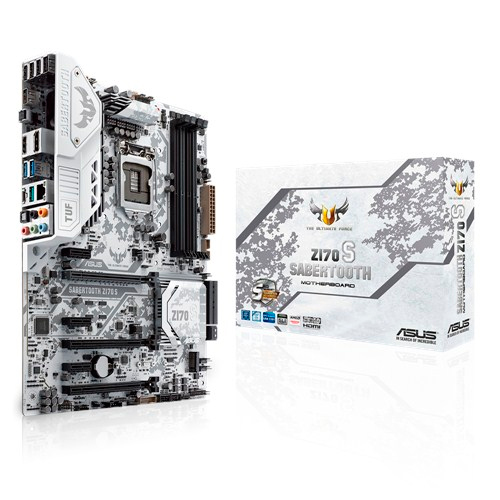

Asus SABERTOOTH Z170 S

CPU
Intel ® Socket 1151 for the 6th generation of Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium ® / Celeron ® processors
Support CPU Intel ® 14 nm
Support Intel ® Turbo Boost Technology 2.0

Chipset
Intel ® Z170

Memory
4 x DIMM memory, Max. 64GB, DDR4 2400 / 2133 MHz Non-ECC, Un-buffet
Dual Channel memory architecture
compatible with Intel ® Extreme Memory Profile (XMP)

Graphic
Integrated Graphic Processor - Intel ® HD Graphics supports
Compatible with Multi VGA output: HDMI / DisplayPort ports
- HDMI-compatible with maximum resolution 4096 x 2160 @ 24 Hz
- Compatible with DisplayPort with a maximum resolution of 4096 x 2160 @ 24 Hz
Maximum shared memory of 1024 MB
Compatible with Intel ® InTru ™ 3D, Quick Sync Video, Clear Video HD Technology, Insider ™
Meet the MultiStream Transport DP 1.2 standard for the serial connection of three monitors

Multi- GPU Compatible
compatible with NVIDIA ® Quad-GPU SLI ™ Technology
Compatible with AMD Quad-GPU CrossFireX ™ Technology
Compatible with NVIDIA ® 2-Way SLI ™ Technology
Compatible with AMD 3-Way CrossFireX ™ Technology

Expansion slots
2 x PCIe 3.0 / 2.0 x16 (x16 or dual x8)
1 x PCIe 3.0 / 2.0 x16 (max. x4 mode) * 1
3 x PCIe 3.0 / 2.0 x1

Storage
Intel ® Z170 Chipset:
2 x SATA Express port Compatible with 4 x SATA 6.0 Gb / s ports
1 x M.2 x4 Socket 3, with M Key, type 2242 / 2260 / 2280 / 22110 storage devices support (both SATA & PCIE mode) * 2
6 x port (s) SATA 6Gb / s, grey
Compatible with Raid 0, 1, 5, 10
Compatible with Intel ® Rapid Storage Technology
Compatible with Intel ® Smart Response Technology

Network
Intel ® I219V, 1 x Gigabit Network Controller
LAN Gigabit Intel ® connection: 802.3az Energy Efficient Ethernet (EEA)
Utility ASUS Turbo LAN

Audio
Realtek ® ALC1150 8 high-definition audio CODEC channels
- Compatible with: Multi-streaming, Front Panel MIC Jack-retasking
Audio characteristics:
- Optical S / PDIF output on rear panel
- BD Audio Layer Content Protection
- Audio insulation: It ensures the separation of sound and digital signals, which significantly reduces interference.
- The separate layers for the right and left channels protect the weak audio signals.
- Audio amplifier: It offers a high quality sound for headphones and sound systems
- Anti-pop circuit: Reduces noise when starting the computer
- First category sonic feeling based on audio configuration
- Clear sound True BD 192kHz / 24-bit
high quality 112 dB output SNR stereo playback (Back line output) and 104 dB input SNR recording (Line entry)
Separate capes for right and left channels to maintain the same quality

USB ports
Intel ® Z170 Chipset:
6 x USB 3.0 / 2.0 (2 in back panel, blue, 4 in plate)
Intel ® Z170 Chipset:
8 x USB 2.0 / 1.1 port (4 in back panel, black, 4 in plate)
ASMedia ® USB 3.1 controller:
1 x USB 3.1 / 3.0 / 2.0 port (1 in back panel, blue teal, Type A)
ASMedia ® USB 3.1 controller:
1 x USB 3.1 / 3.0 / 2.0 (1 in back panel, Type C, Reversible)

Special characteristics
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme OC performance
Ultimate COOL! thermal solution:
- TUF Thermal Radar 2
- TUF ICe
Safe and stable! Angel of the guard:
- TUF ESD Guards 2
- TUF LANGuard
TUF functions
TUF ENGINE! Power design:
- Digital power design in phases 8 + 4
- TUF components (New Alloy Choke, Ti-Cap. & MOSFET; with military certification)
- ASUS DIGI + Power Control Utility
Exclusive ASUS characteristics:
- GPU Boost
- USB BIOS Flashback
- MemOK!
- Al Suite 3
- Ai Charger +
- Protection against overflights
- M.2 & SATA Express
- ASUS UEFI BIOS EZ Mode with friendly graphical user interface
- USB 3.0 in front panel
- USB 3.1 Boost
- Disk Unlocker.
- Turbo LAN
- PC Cleaner
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- Multilingual BIOS
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, LED device start indicator, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking protection:
- ASUS C.P.R. (CPU parameter recovery)

Compatible operating systems
Windows 8.1 64 bits
Windows 10 64 bits
Windows 7 32 bits / 64 bits

E / S rear panel
1 x DisplayPort
1 x HDMI
1 x Network (RJ45)
1 x Optical S / PDIF output
5 x Audio Jack (s)
1 x USB 3.1 (blue toe) Type A
1 x USB 3.1 Type C
4 x USB 2.0
2 x USB 3.0 (blue) (A port can be used for USB BIOS Flashback)
1 x USB button BIOS Flashback
1 x E / S 8 audio channels
1 x TUF Detective USB port

E / S Internal
2 x USB 3.0 connector supports (n) 4 USB 3.0 extra (s) (19 contacts)
1 x connector (s) AAFP
2 x USB 2.0 connector supports (n) 4 USB 2.0 extra
2 x SATA Express connector:, Compatible with 4 x SATA 6.0 Gb / s ports
1 x M.2 Socket 3 with M Key design, type 2242 / 2260 / 2280 / 22110 storage devices support (Support both SATA & PCIE SSD)
6 x Connector (s) SATA 6Gb / s
1 x CPU fan (4-pin) connector
6 x Conconnector (s) fan chassis (4-pin)
1 x CPU OPT Fan connector (4-pin)
2 x Ventilation Assistant connector (1 x 3 -pin, 1 x 4 -pin, [White])
1 x Output head S / PDIF
1 x 24-contact EATX power connector
1 x 8-contact ATX 12V power connector
1 x Thunderbolt head
1 x System panels (Q-Connector)
1 x Chassis intrusion connector
1 x MemOK button!
3 x Thermal sensor connector
1 x DRCT head
1 x 5-contact connectors EXT _ FAN (fan extension)
1 x Jumper Clear CMOS
1 x CPU OV
1 x Liquid pumping head
1 x 14-1 TPM connector

Accessories
User Manual
Guide of accessories
ASUS Q-Shield
4 x Cable (s) SATA 6Gb / s
1 x Q-connector (s) (1 in 1)
1 x DVD support
1 x M.2 Screw Package
1 x CPU installation tool
1 x Bridge (s) SLI
1 x TUF Certification Card
1 x 5-year TUF guarantee card (by country)
- 1 x Dust-resistant structure
- 1 x Dust-resistant E / S back
1 x TUF INSIDE sticker (s) (gray)
1 x STAY COOL BE TUF sticker (s) (gray)

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, multilingual BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My favorites, Quick notes, Last records,
F12 PrintScreen and ASUS DRAM SPD memory information (Serial Presence Detect)

Management capacity
WfM 2.0, DMI 3.0, WOL by PME, PXE

Factory format
ATX factory format
12 inches x 9.6 inches (30.5 cm x 24.4 cm)
