Asus 1700 ROG Strix Z690-i Gaming Wifi Base Plate

Asus 1700 ROG Strix Z690-i Gaming Wifi Base Plate

The ROG Strix Z690-I Gaming WiFi motherboard deploys a s &oacuerlide deliver power supply and cooling to release the full strength of the 12 ª Intel Core processors, all orchestrated by ASUS-exclusive smart controls that provide advanced user experiences. The frames and load times can be increased to &uatu; s with the all-new support for the DDR5 and PCIe 5.0 memory. In addition, the integrated WiFi 6E and PCIe 4.0 M. 2 slots provide an ultra-high performance with an infinite variety of scenarios. In addition to all that, the innovations f &aetuices for users help to simplify the process of building PC.

INTEGRAL PERFORMANCE

ROG Strix Z690-I Gaming WiFi helps you to take advantage of your building's construction &o n of games with high-end energy delivery, DDR5 memory support, optimized cooling and intelligent controls that allow you to manage the configuration of overclocking, cooling, networking and audio.

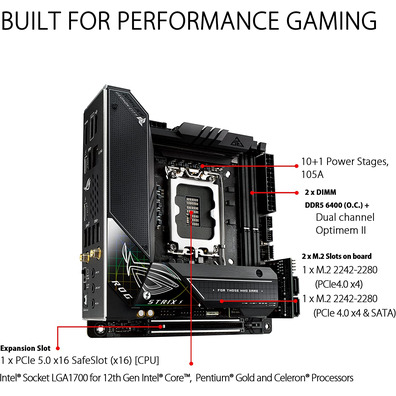

DISE Ñ OR ENERG &IateA

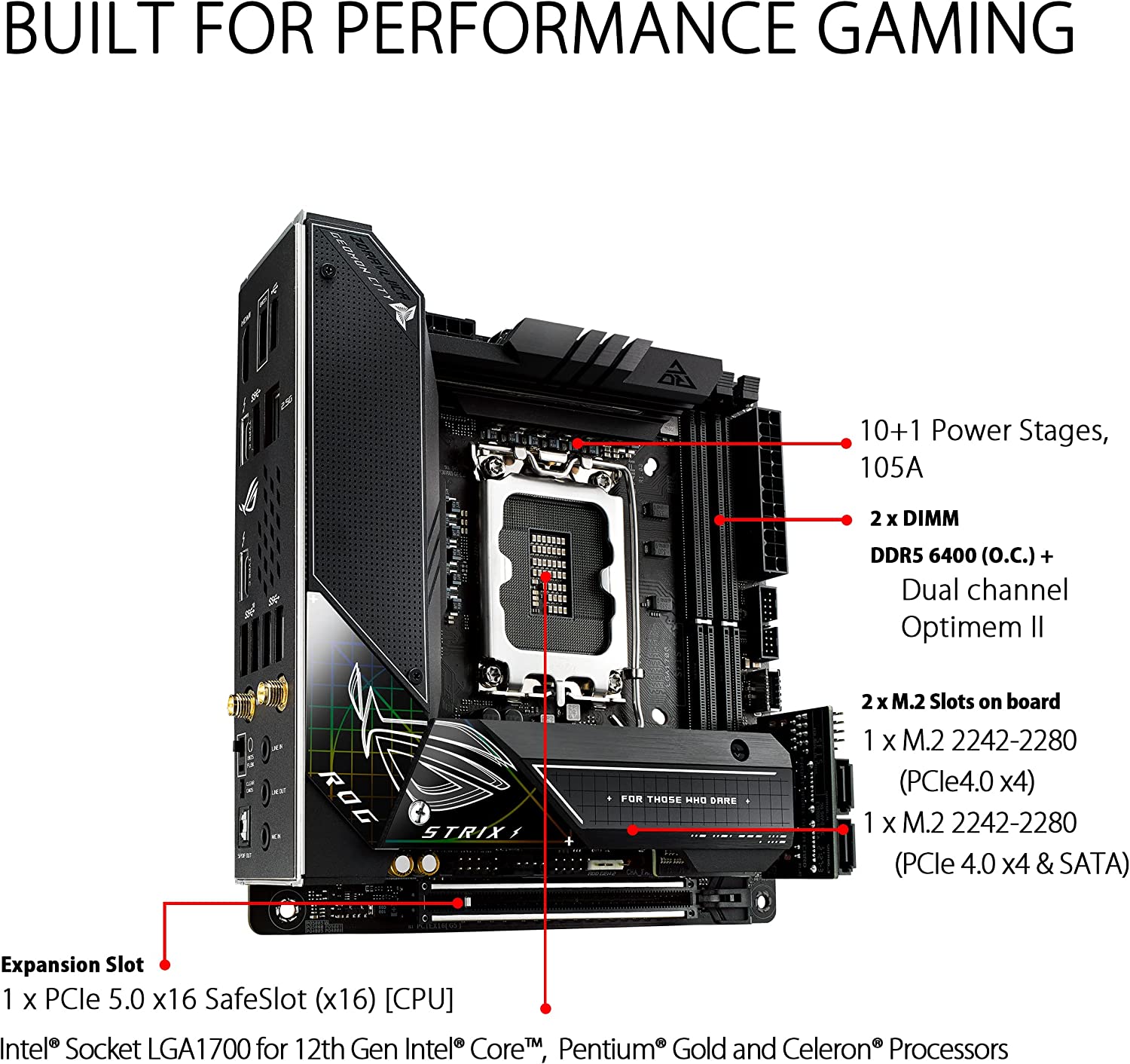

Power Stages on Equipment

The 10 + 1 power stages combine MOSFETS and high-side, low-side controllers into a single package, providing power and efficiency that the latest Intel processors can take advantage of.

Durable Condensers and Alloy Chokes

High-end chokes and long-lasting capacitors are ñ ed to withstand extreme temperatures, enabling performance that exceeds industry standards.

Procool II Feed Connector

The ASUS ProCool II connector is built with strict specifications to ensure full contact with the power cable cabling. A metal cover improves heat dissipation and the low impedance of the electrical é helps prevent hot spots and strengthens reliability.

DIGI + power control

The voltage regulator module (VRM) Digi + is one of the best in the industry, ensuring a clean and ultra-soft power delivery to the CPU.

ten-layer PCB

The ñ or PCB will dissipate the heat around the VRM to improve overall system stability and provide the CPU m &arecos overclocking margin.

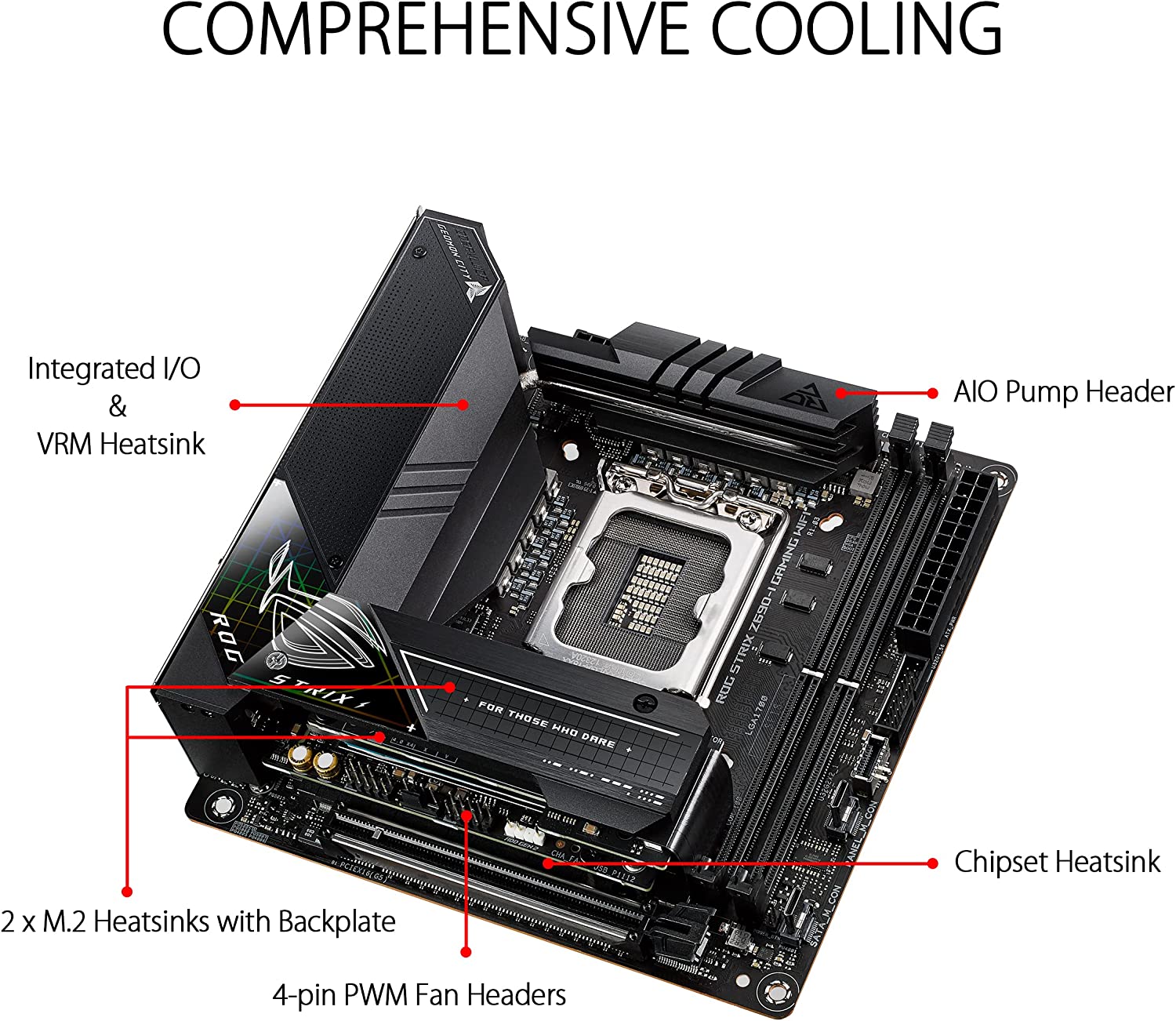

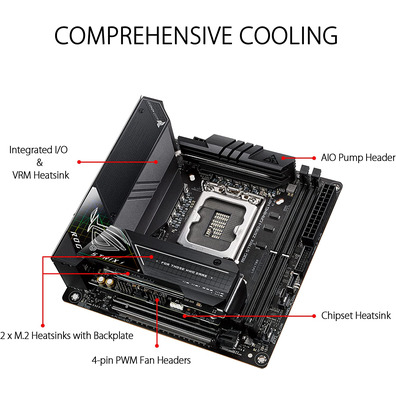

REFRIGERACI &OULDN

VRM integrated I/O cover and heat sinks

Two thick heat sinks that are attached to the metal E/S protector enfold the VRM. This structure provides a broad mass and surface to deal with the thermal t &eascias of the last Intel processors.

Rmicas t pads

The specially-dise ñ s t &eider; pads transfer heat efficiently from the inductor and the phase matrix to the heat sink.

M &aecons fr í a by dise ñ o

The ROG Strix Z690 motherboards feature integral cooling options that can be configured to bring the Fan Xpert 4 tool into Armory Crate or within the UEFI BIOS.

MEMORY AND STORAGE

DDR5 overclocking force

The integral memory adjustment options are the cornerstone of the ROG motherboards. For DDR5, the Strix Z690 line-up breaks down the performance mitts by providing a stacked set of overclocking pairs not only for high speed kits, but even for entry-level memory modules that have a locked power management IC (PMIC).

Ready for PCIe 4.0

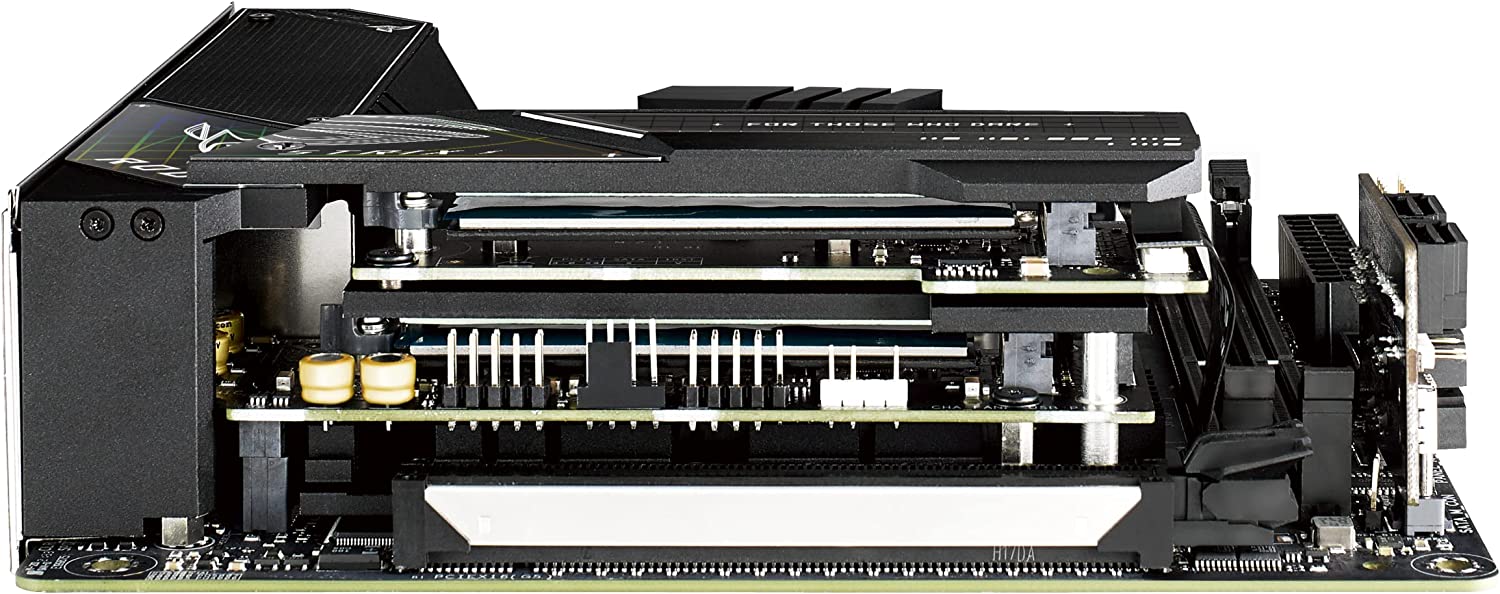

With three M. 2 slots located at &eaciously, ROG Strix Z690-I Gaming WiFi takes advantage of the powerful bandwidth of the CPU and chipset to deliver ultra-high PCIe 4.0 data transfers, Intel NVM Express RAID and high capacity drive options that exceed traditional SATA.

SMART CONTROL

Cancelation of bidirectional noise with IA

This powerful ASUS exclusive utility leverages a huge deep learning database to reduce the background noise of the phone and incoming audio while preserving the voices. Annoying keyboard noises, mouse clicks and other environmental noises are removed so you can listen and be heard with perfect clarity while playing or during calls.

Overclocking ROG AI

ROG AI Overclocking is a smart utility that helps you to take advantage of your construction ón by profiling your CPU and cooling system to predict the configuration of voltage and frequency. Accessible through the AI Suite software on Windows or directly through UEFI &eUteats. There are a variety of customizable configurations available for experienced overclockers, and an option for self-tuning is available for beginners.

Cooling AI

The technology for ASUS AI Cooling manages and controls autom the fans connected to the motherboard to ensure a configuration of the current system load and temperature.

AI networks

The patented ROG GameFirst VI utility is ñ ada to help all users (beginners, experts, and all dem) optimize network configuration to ensure a smooth play in the fluid line. As a novelty in   this generation, GameFirst VI has a technology-enhanced boost and identification technology to ensure an optimum and intelligent network optimization.

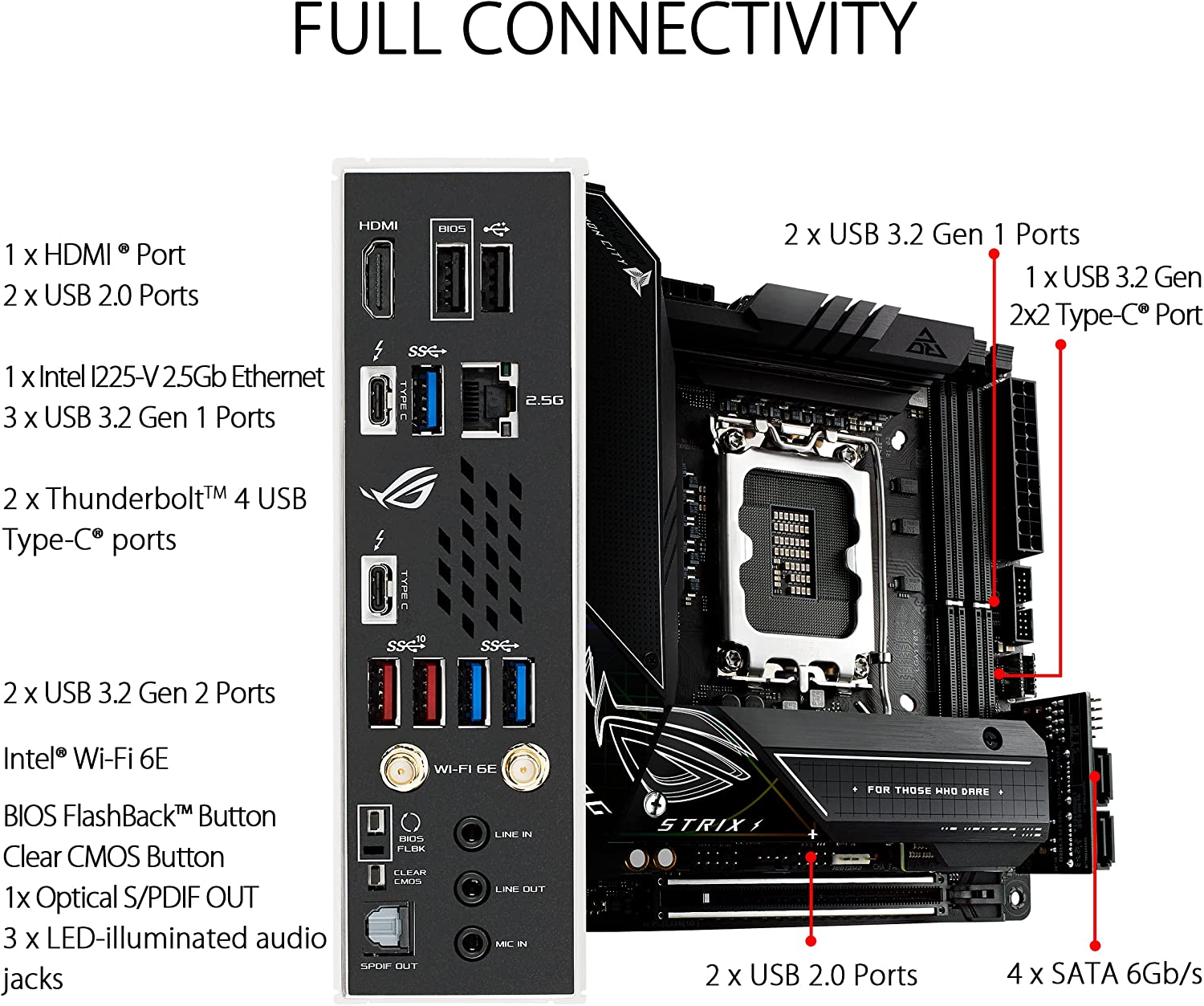

DER CONNECTIVITY

ROG Strix Z690-I Gaming WiFi presents a ñ or innovative dise that offers diverse connectivity options and incre &iutedially r &aaipidas for experiences in the super-soft line and ultrarr data transfers.

STORAGE

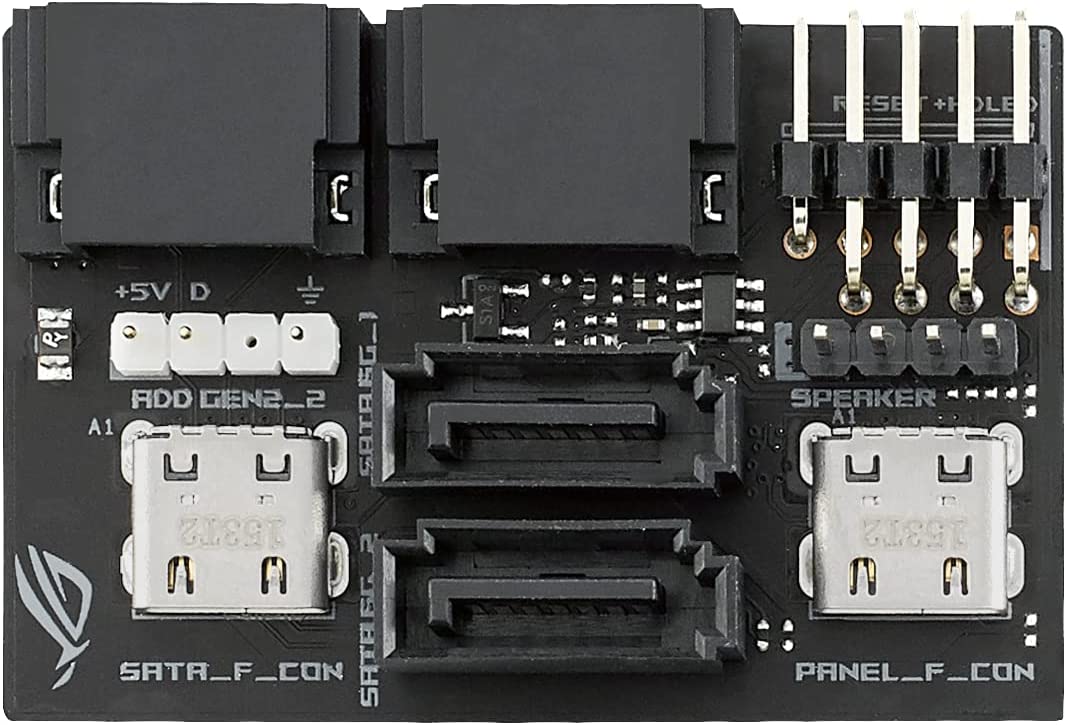

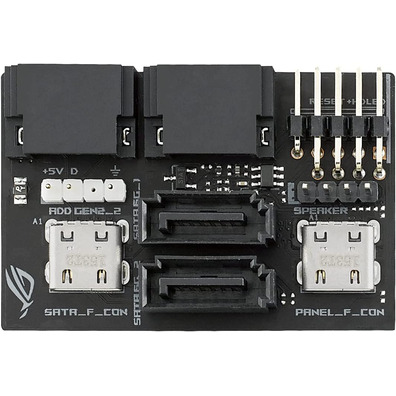

ROG SATA Card

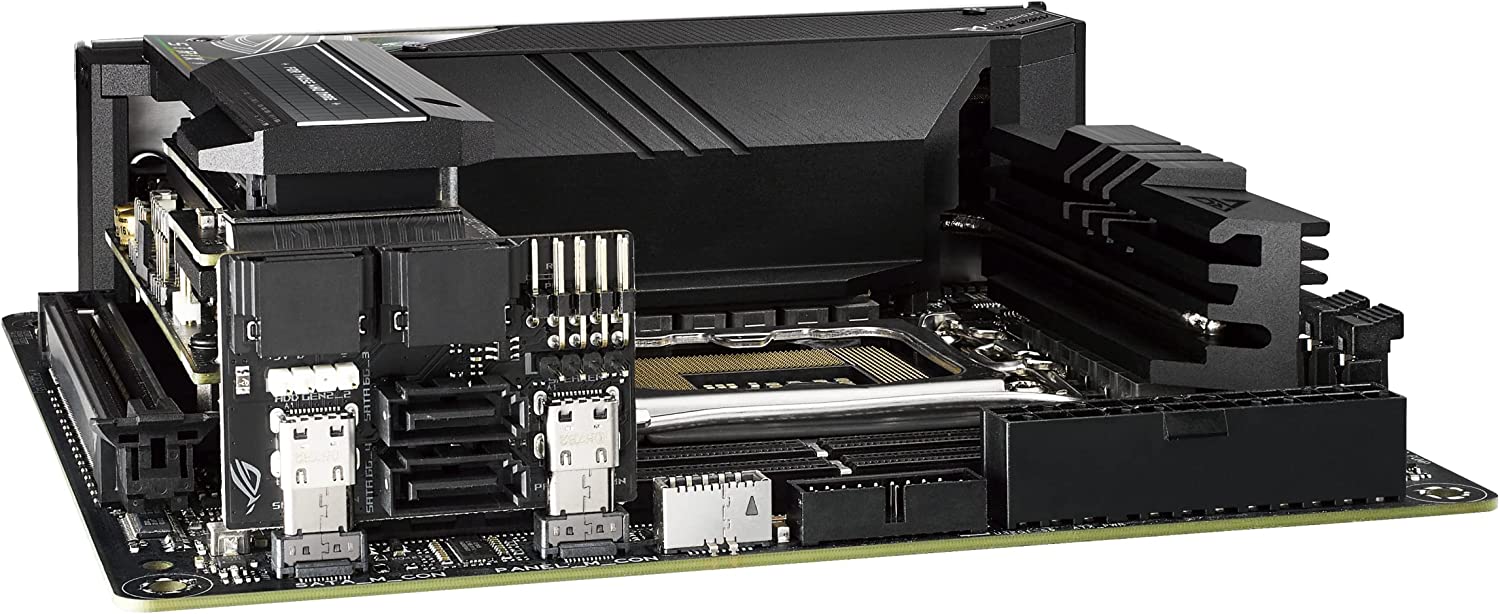

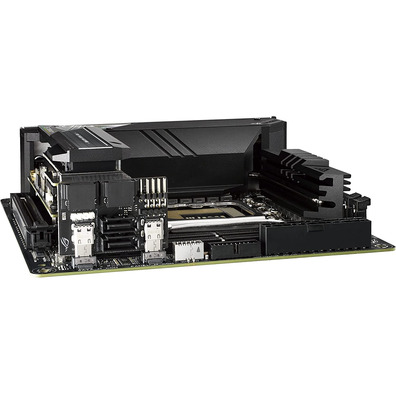

ROG Strix Z690-I Gaming WiFi comes with an expansion card that provides additional functionality that includes four SATA ports, an ARGB lighting header and connectors for a front panel header and a PC speaker. This space-efficient use allows builders to build some of the compacted PC builds with all functions, or you can also connect the power-on bot to the 2-pin Power_BTN on board for compilations to the compact &uatals.

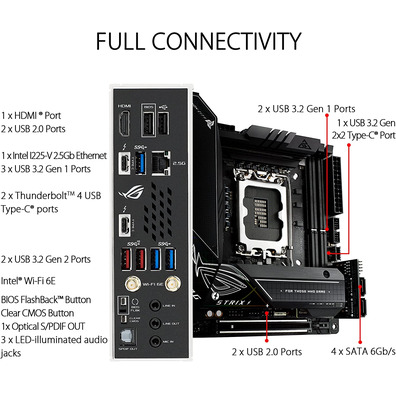

THUNDERBOLT

Two Thunderbolt 4 ports

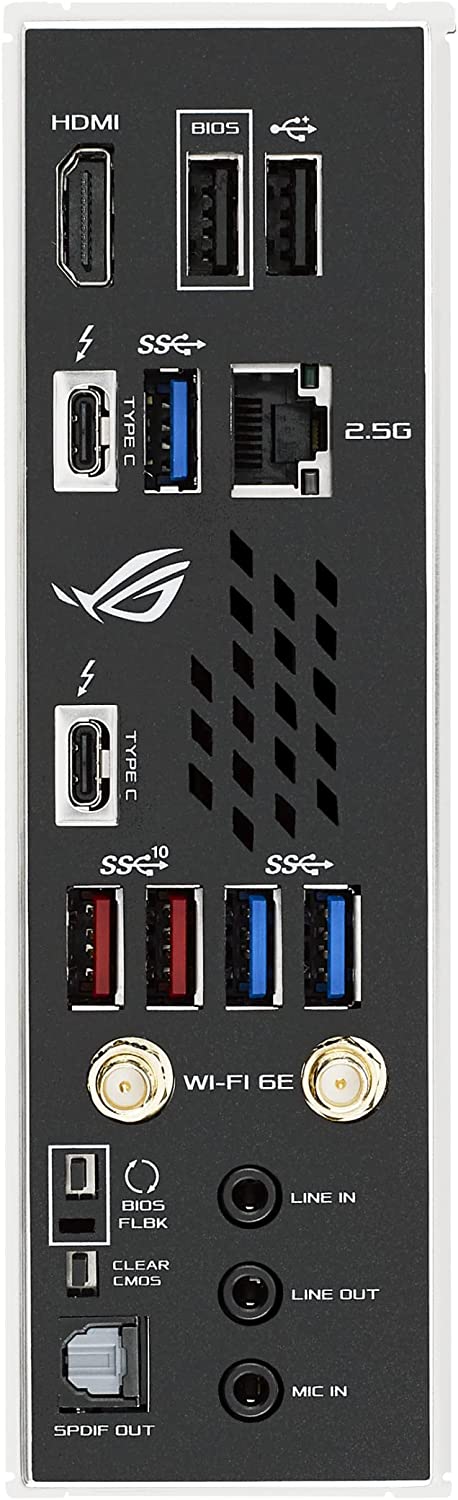

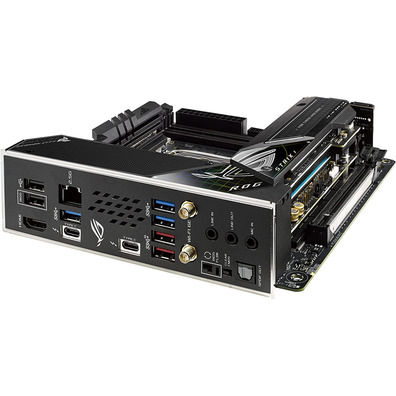

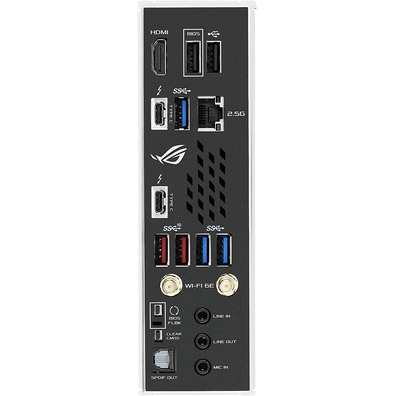

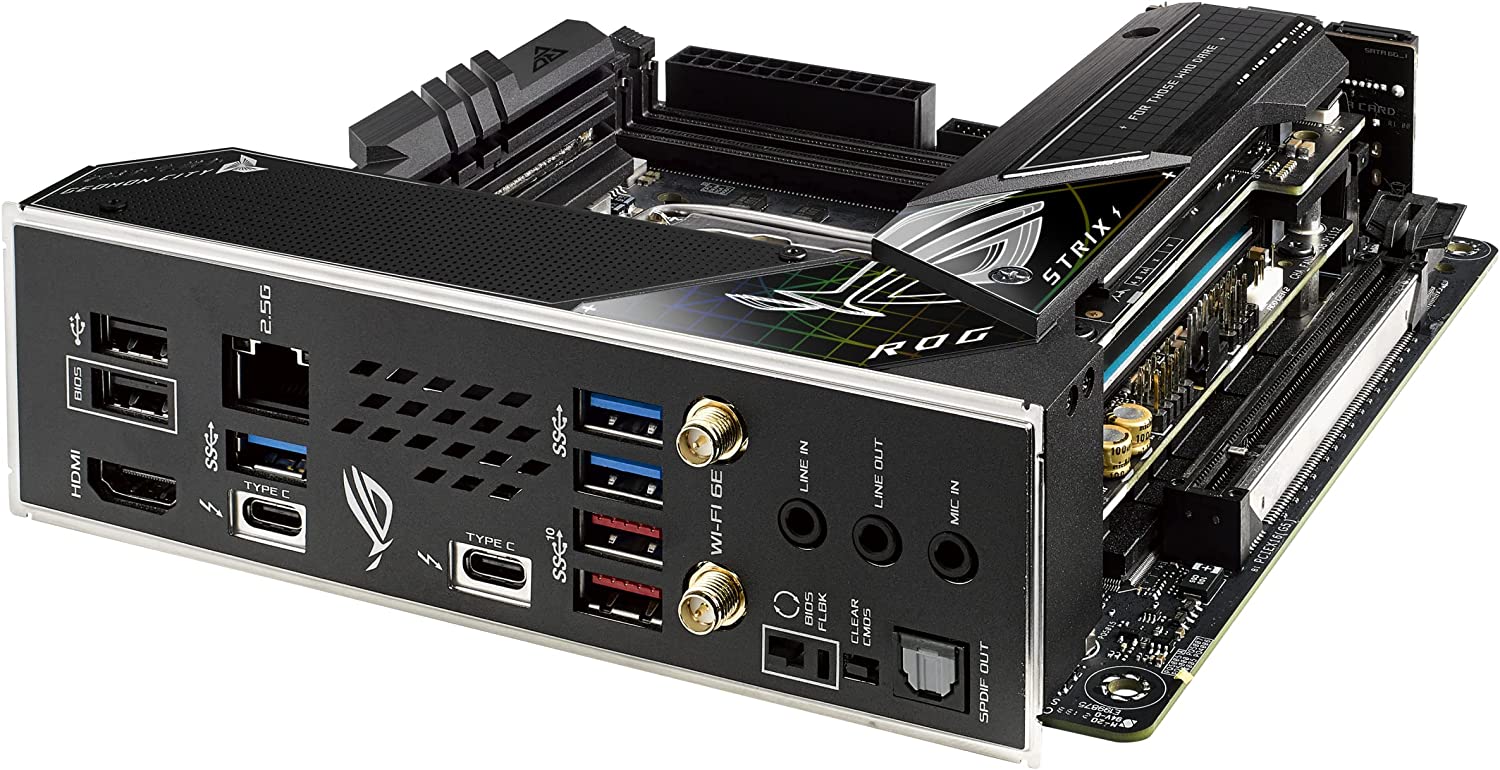

Mini-ITX systems often find homes in entertainment centers for HTPC tasks. The ROG Strix Z690-I Gaming WiFi motherboard is prepared with two Thunderbolt 4 USB C ports on the rear E/S panel whose 40 Gbps two-way connectors can handle two external 4K screens at a time, adem &aalds of a variety of other compatible accessories.

REDES

WIFI 6E

The technology for WiFi 6E on board takes advantage of the radio spectrum recently available in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to offer wireless network speeds and improved capacity, as well as improved performance in dense, dense environments.

Intel 2.5 Gb Ethernet

The integrated 2.5 Gb Ethernet gives you a boost to your cable connection, providing Ethernet connection speeds up to 2.5 times m. r &aUtedas for file transfers m &aUte; r &aetups, low-delay games, and broadcast high-resolution video.

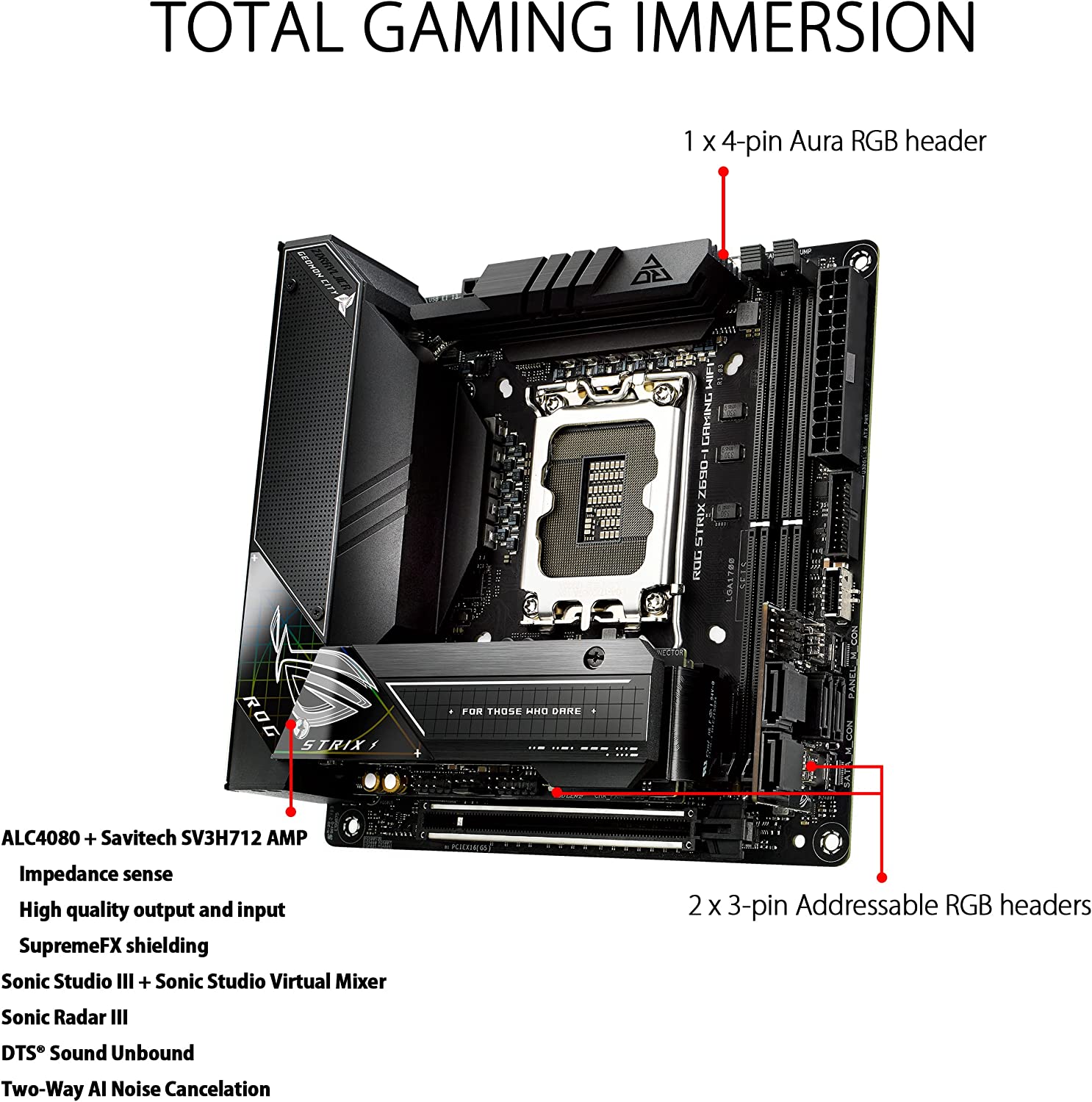

AUDIO

SupremeFX

ROG SupremeFX is a combination of hardware and software that provides superior audio. In ROG Strix Z690-I Gaming WiFi, SupremeFX has the ALC4080 c &odeute; to increase the solution of 192 kHz to 384 kHz reproduci n &o in all channels. The output of the front panel is transmitted through a highly integrated Savitech amplifier that is capable of handling a wide variety of gaming and high fidelity headphones.

Specifications:

• Format: Mini ITX
• Chipset: Intel Z690
• Multi-GPU: No
• Number of PCI Express slots: 1
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2, Serial ATA III
• N &uteer; number of supported processors: 2
• Processor
  • Processor Socket: Socket 1700
  • Processor Family: Intel Celeron, Intel Core i5-12 ª Gen, Intel Core i9-12 ª Gen, Intel Pentium
• Memory
  • Memory slots: 2x DIMMs
  • Memory slot type: DIMM
  • Internal memory m &axime: 64 GB
  • Supported memory module capacities: 32 GB
  • Non-ECC: Yes
  • Memory-less memory: Dual
  • Supported memory types: DDR5-SDRAM
  • Supported memory clock speeds: 6400 (OC)
• Audio
  • Audio output channels: 7.1
  • Audio system: Realtek ALC4080
