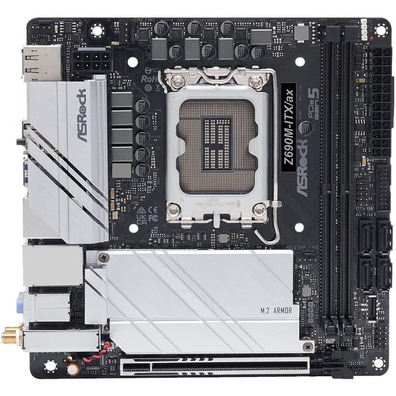

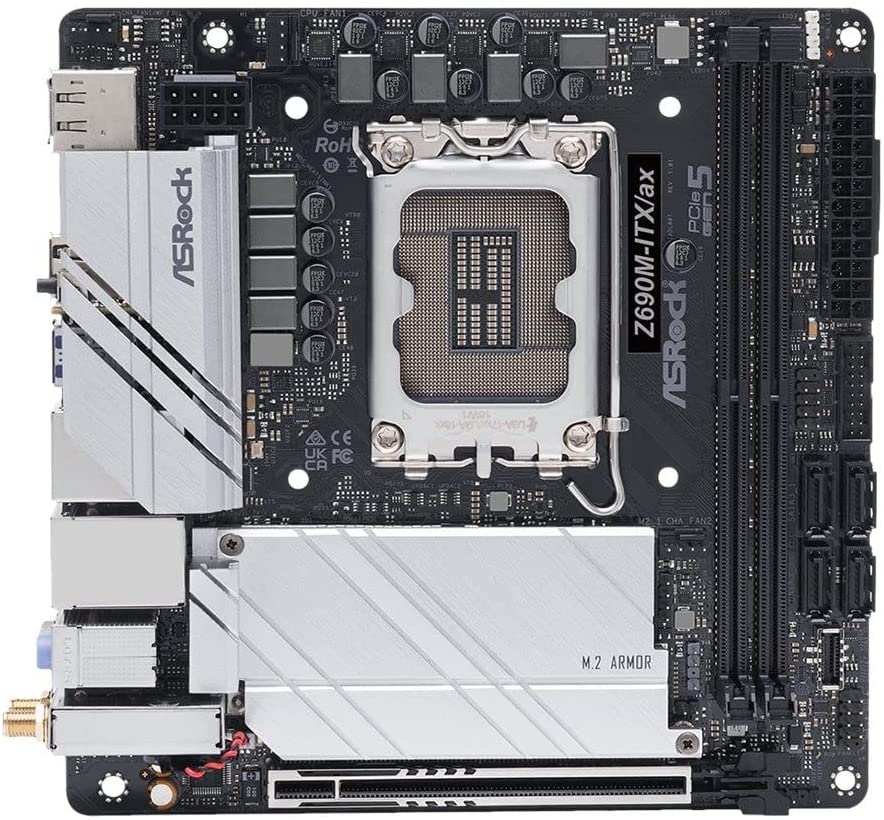

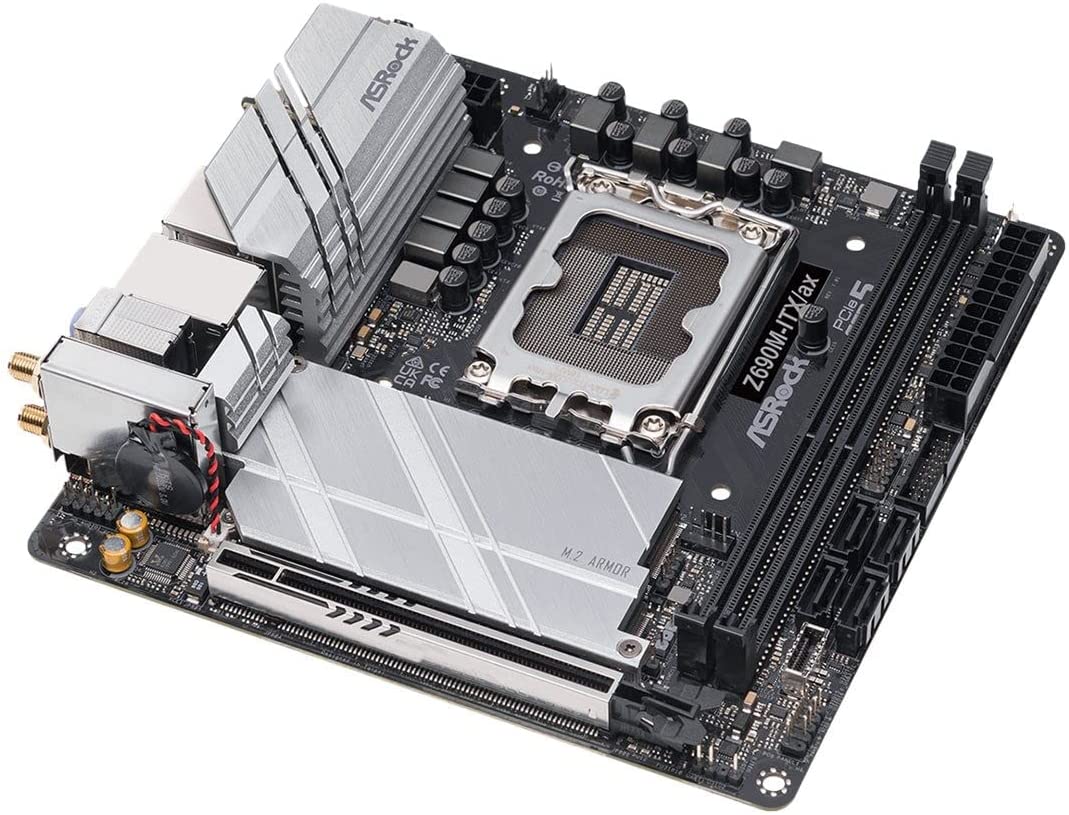

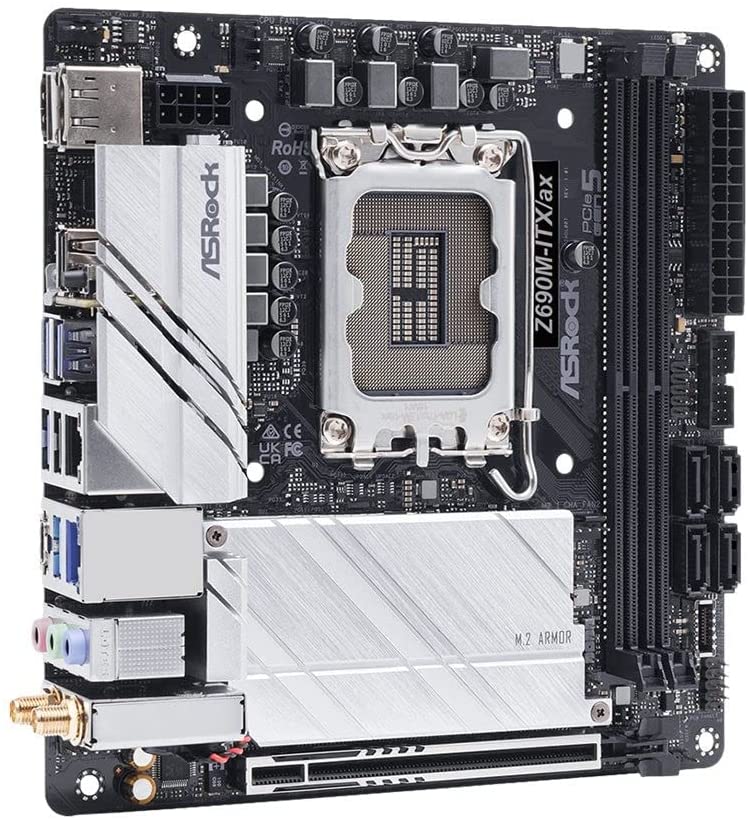

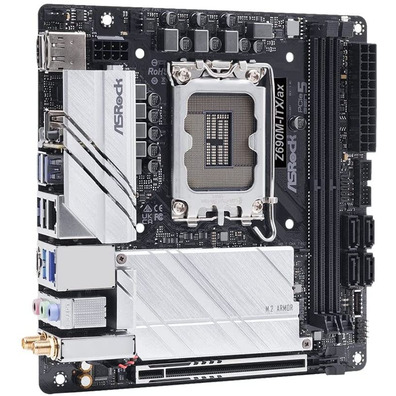

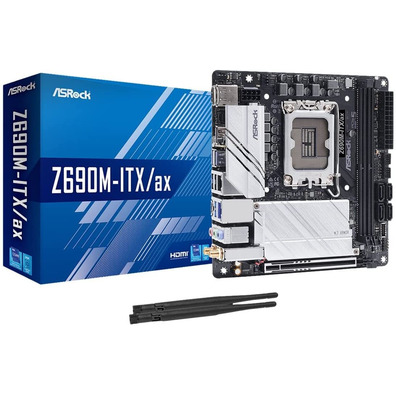

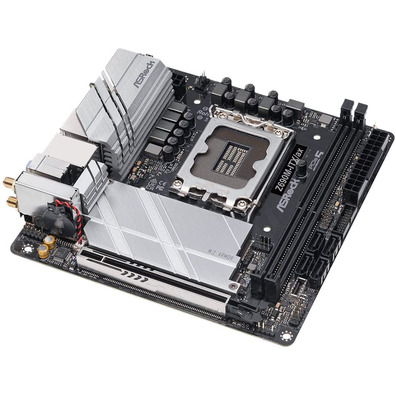

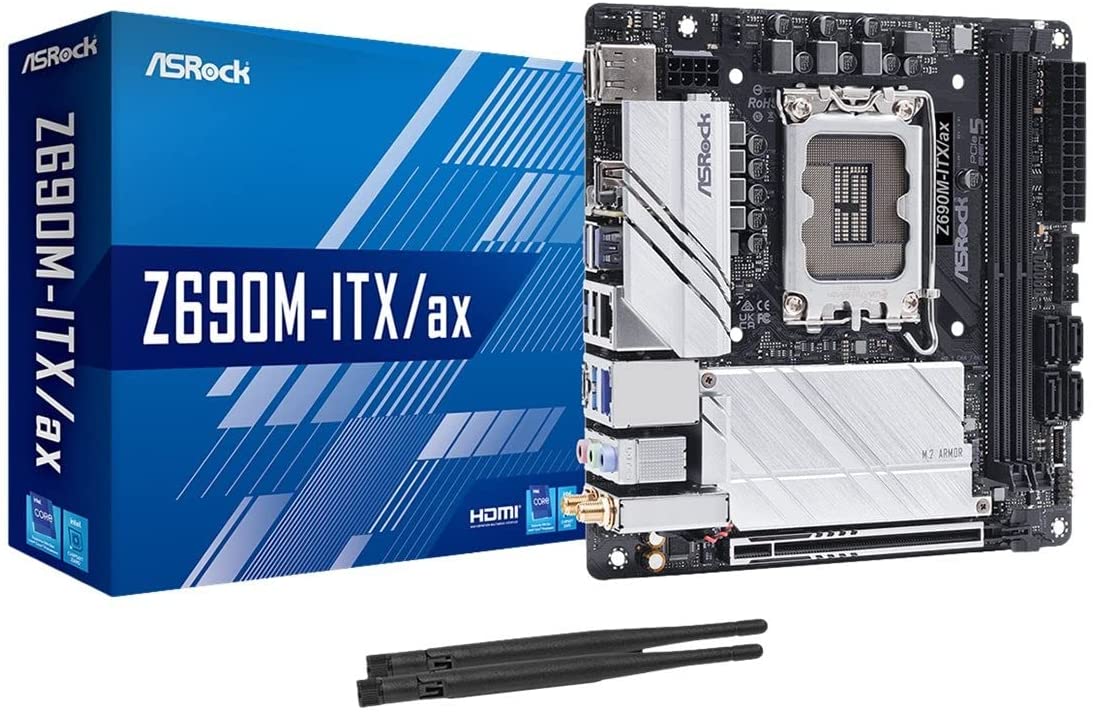

Base Plate Asrock 1700 Z690M-ITX/AX DDR4

Asrock Base Plate 1700 Z690M-ITX/AX DDR4

Dise ñ or optimized VRM

Dr. MOS

&iexex; Dr. MOS is the integrated power-stage solution that is optimized for application s í n reductive applications! In comparison with traditional discrete MOSFET, it intelligently delivers a high stream to each phase, resulting in improved performance and superior performance.

Dise ñ or 8-phase power

With resilient components and a power delivery to the CPU completely fluid. In addition, it offers unmatched overclocking capabilities and improved performance with low temperature m &arecons for advanced players.

8-layer PCB

&iex; The 8-layer PCB provides traces of ñ to stable and power forms that offer a low temperature & lower temperature and higher energy efficiency for memory overclocking! Therefore, you are able to support the last m &onodules of memory with the memory performance of the extreme &aasties.

PCIe 5.0 + technolog surface mount íg

In comparison with the conventional DIP-style PCIe slot, the SMT-type PCIe slot improves the flow of the ñ to the and maximizes high-speed stability, a key advance for fully admitting the illumination speed of the latest &ualtid PCIe 5.0. The latest PCI Express 5.0 is capable of delivering an impressive 128 GBps bandwidth, ready to unlock the full potential of the future high end graphics.

Nahimic audio

Audio that matters

Whether you're using, headsets or speakers, to bring in USB, Wi-Fi, anal output or even HDMI, Nahimic Audio offers you the attractive, vibrant and rich listening experience.

Improving the quality of communication &oatun

The powerful algorithms to guarantee the best conversation without noise, providing a constant level of voice regardless of the distance of your phone. The Nahimic audio engine cleans up the sound and eliminates the noise of interference and reduces the variance of the voice. The result is a better understanding and less fatigue.

Definitive game experience

Sound Tracker: The Sound Tracker is a visual indicator that is ñ to the addresses where the predominant sounds come from. Each sound is correctly positioned in 360 ° on a radar for a total dive during the game.

Works on any device: Enjoy high quality, vibrant surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and guarantees the best sound with any of them. Nahimic measures and improves to optimize the technology and offers the best experience.

POLYCHROME RGB

Adem &arectors of the built-in RGB &oatro n, tambi &eacetín features integrated RGB headers and an addressable RGB header that allows the motherboard to connect to compatible LED devices, such as strips, fans, dissipators, refrigeration, etc. The users also can synchronize RGB LED devices to bring the Polychrome RGB Sync certified accessories to create their own unique lighting effects.

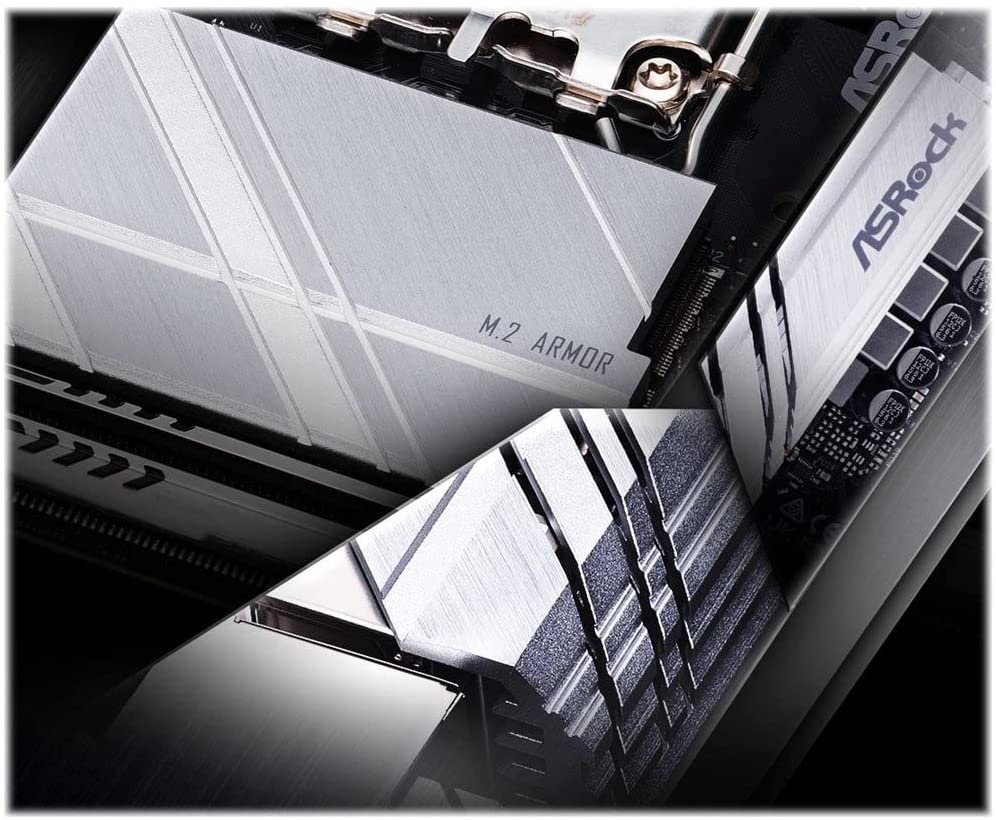

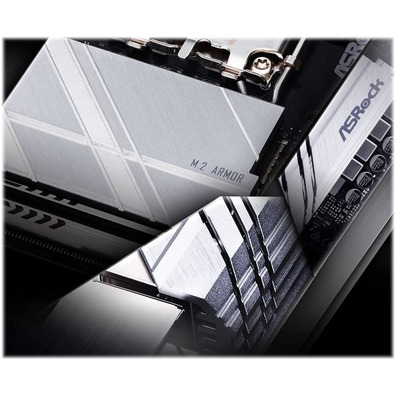

High-speed2 &oatu. M. 2

This motherboard is capable of accommodating M 2 storage devices M. 2, one of which can support PCI Express 4.0 M. 2 SSD, is able to perform twice the speed in comparison with the third generation prior, providing an ultra-high data transfer experience.

2.5 Gb/s LAN &oatern n

The 2.5 Gb/s intelligent LAN platform is ñ ada for a maximum network performance for the demanding requirements of the sun &eacuity networks, the content creators, the players in the line and the high quality broadcast media. Increases network performance up to 2.5 times the bandwidth in comparison with the gigabit Ethernet test, enjoy a connectivity experience and no concessions for games, file transfers, and backups.

Base frequency booster (BFB) technology

The BFB technology allows the use of growing TDP to enjoy the base frequency boost with the hidden power of the processors with non-K series of users and selected base plates of the 600 series of ASRock. While ASRock BFB gives life to the non-K series CPUs, the frequency of impulse to &urecon depends on the cooling system applied on your platform.

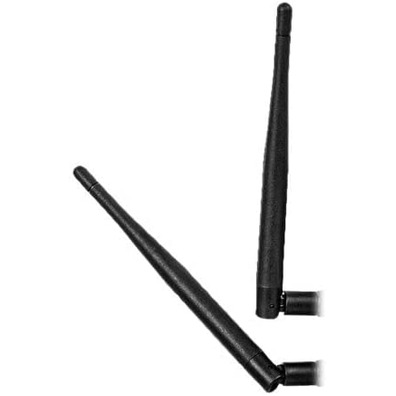

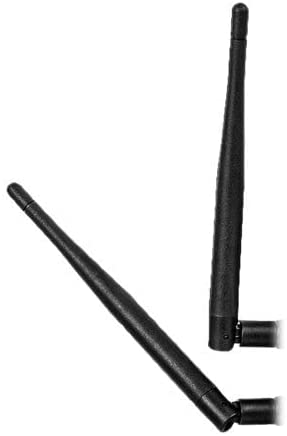

WiFi 6E 802.11ax

The technology for WiFi 6E has been extended to the entire new 6 GHz spectrum band, providing WiFi capacity and getting an Internet connection to &ualtius better and m &aecas. In addition to offering high speed, WiFi 6E also improves the low latency and supports service levels equivalent to 5G networks.

USB 3.2 Gen2x2 20Gbps (front + rear)

The latest USB 3.2 Gen2x2 Type-C offers a data transfer rate of up to 20 Gbps, which is twice as much as the previous generation, which provides an ultra-high data transfer interface with a reversible ñ or USB Type-C that adapts to the connector in any way.

Flashback BIOS

Obt the update of the appropriate BIOS m &aecons with just one click. Users can easily obtain the latest BIOS compatibility with a USB and a power supply, without the need for CPU, RAM, or other components.

Specifications:

• Details T &eUcics
  • Format: Mini ITX
  • Chipset: Intel Z690
  • Multi-GPU: No
  • Amount of PCI Express slots: 1
  • Processor family:   Intel
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 2

• Processor Socket: Socket 1700
• Processor Family: Intel Core i3-12 ª Gen, Intel Core i5-12 ª Gen, Intel Core i7-12 ª Gen
Intel Core i9-12 ª Gen
• Memory
  • Memory slots
  DIMM
  • Internal memory m &axime: 64 GB
  • Non-ECC: Yes
  • Memory without buffer: Yes
  • Memory channel support: Dual
  • Supported memory types: DDR4
  • Supported memory clock speeds: 3200 MHz, 5000 + (OC)
  • V &iudero deo
    • Graphics chipset: Intel
    • HDCP: Yes
    • M &axime resoluci &oatron n: 7680 x 4320 Pixels
  • Audio
    • Audio output channels: 7.1
    • Audio system: Realtek ALC897
  • Expansion slots &oatern
    • PCI Express Configurations: 1 x16
    • N number of slots (total) PCI Express:   1
    • X16 PCI Express slots: 1
    • Versi PCI Express entries &oatecn: 5.0
I/O
• Power connector &iUte; to EPS (8-pin): 1
• ATX power connector (24 pins): Yes
• Fan connector: Yes
• USB 2.0 connectors: 1
• N &ute; number of connectors to chassis fan: 1
• N &uterer of SATA connectors 3: 4
• M. 2 connectors: 2
• RGB/LED Strip Connectors: 2

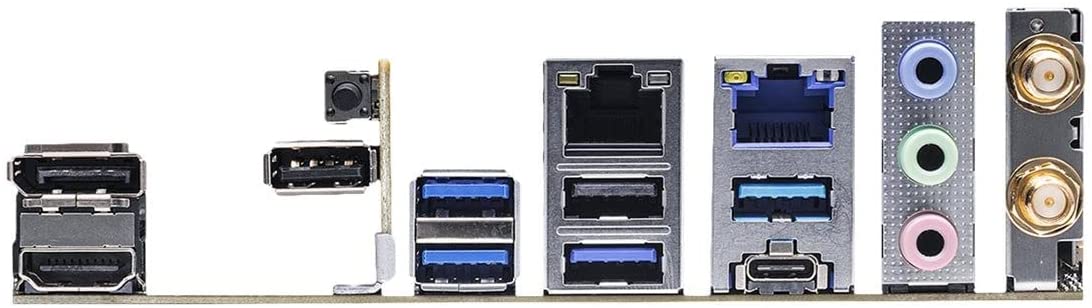

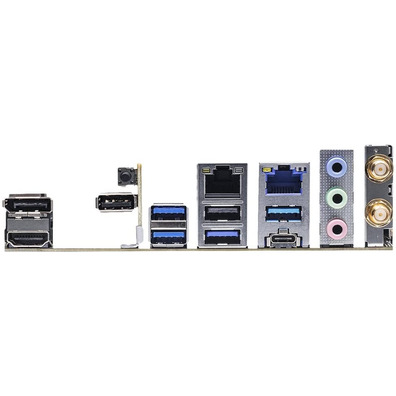

• Rear Panel I/O Ports (Input/Output)
  • Speaker, headphone, output jack: 2
  • Amount of DisplayPorts: 1
  • Number of HDMI ports: 1
  • Amount of USB ports 3.2: 4
  • Amount of Thunderbolt ports: 1
  • Ethernet (RJ-45):   2
  Regulators
  • RAID Levels: 0, 1, 10, 5
