Nox Modus Blue Edition ATX 3.0

Nox Modus Blue Edition ATX 3.0

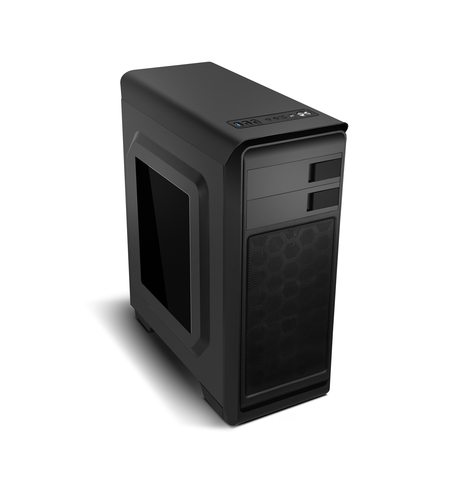

Nox incorporates a new chassis in his Origin, Modus series. It is a compact, elegant and sober half-life chassis. It has been designed completely in black, with metal finish mesh on the front and a side window that allows you to see the inside of the equipment and all its components.

- Clear side window
- Metal front panel mesh
- Includes a 120 mm blue LED fan
- USB connection 3.0
- Up to 3 hard drives
- Two USB 2.0 ports
- Space for two fans

Elegance and sobriety

Modus is a half-life compatible with ATX and mATX plates. Fully designed in black both inside and outside front finish count in mesh metal and side window that will allow to see the inside of the team, making it an elegant chassis.

Extensive benefits

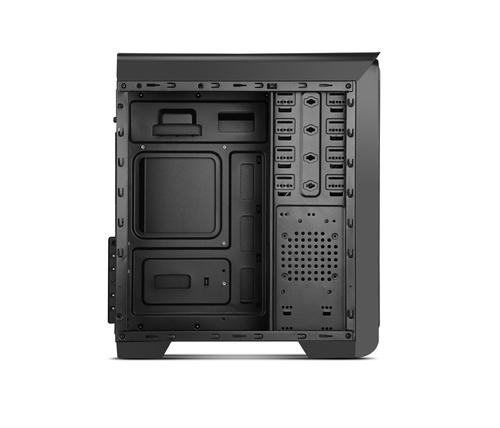

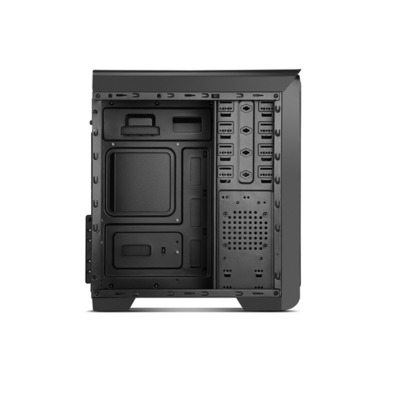

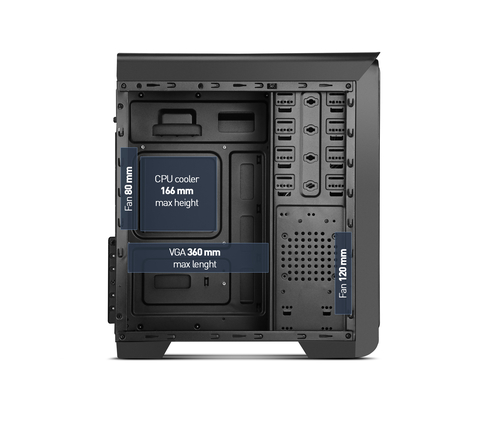

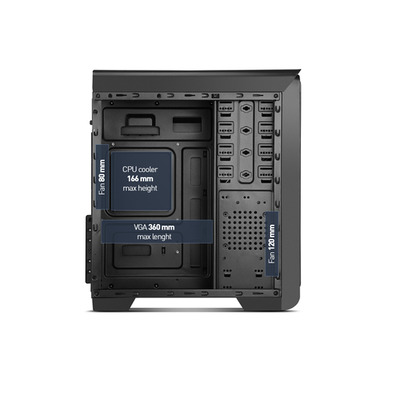

In the inside of Modus it is possible to install graphic cards up to 360 mm in length and coolers of a maximum height of 166 mm.

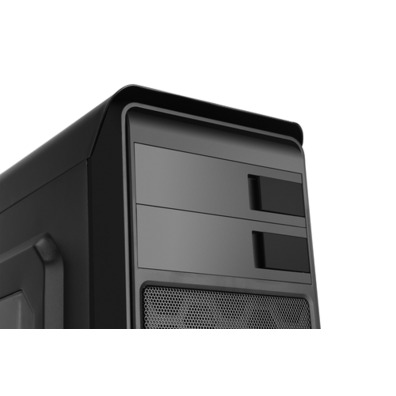

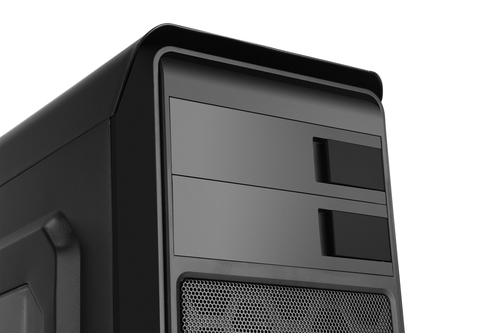

It has 2 external bays of 5.25?? and 3 internal bays, two of 3.5?? and one of 2.5??, as well as 7 expansion slots. In addition, it allows to install a standard ATX power supply.

Ventilation system

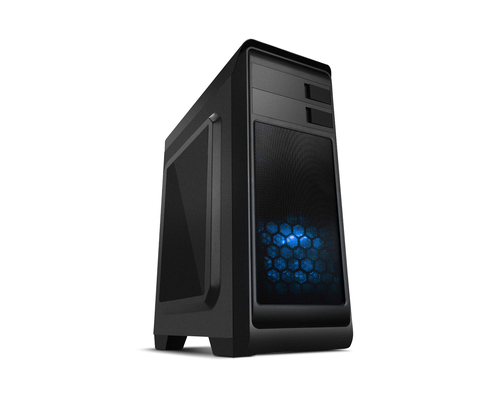

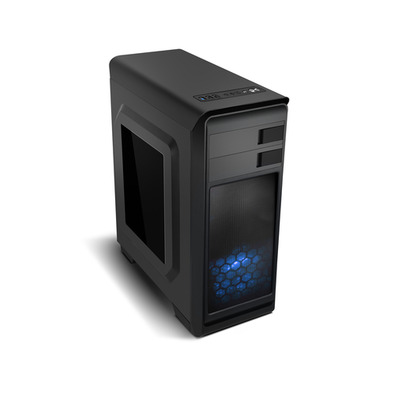

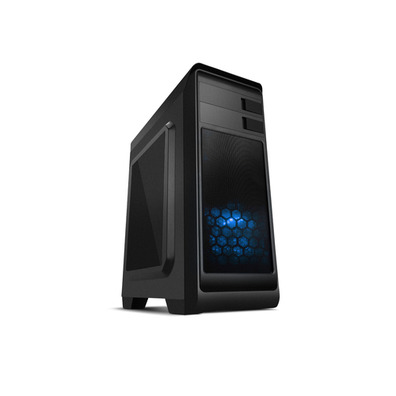

Modus has a 120 mm blue LED fan pre-installed on the front and the possibility to install another 80 mm on the back.

Thanks to the mesh metal finish of the front and the side grid, the air flow inside the equipment is guaranteed, ensuring optimal cooling of all components

Easy access

To facilitate accessibility to connections, Modus incorporates a USB 3.0 port, two USB 2.0 ports and audio connections into its top panel.

• Form factor: Midi-Tower
• Type: PC
• Materials: SPCC
• Number of ports 5.25 ": 2
• Number of ports 3.5 ": 2
• Support parent card factor forms: ATX, Micro- ATX
• Product color: Black
• Number of bays 2.5: 1
• Number of internal bays of 3.5 ": 2
• Number of external 5.25 "receptacles: 2
• Side window: Yeah.
• Material thickness: 0.4 mm
• Lighting: Yeah.
• Lighting location: Front
• Color lighting: Blue
• Number of expansion slots: 7
• Maximum height of the coolest CPU: 16.6 cm
• Maximum length of the graphics card: 36 cm
• Power supply included: No.
• Number of USB 2.0 ports: 2
• Number of ports type A USB 3.0 (3.1 Gen 1): 1
• Audio input: Yeah.
• Audio output: Yeah.
• Front fans installed: 1x 120 mm
• Maximum of front fans: 1
• Diameter of supported front fans: 120 mm
• Maximum of subsequent fans: 1
• Diameter of supported rear fans: 80 mm
• Refrigeration: Yeah.
• Hard drive sizes supported: 2.5.3.5 \'
• LED indicators: Yeah.
• Button to restore: Yeah.
• Width: 196 mm
• Depth: 465 mm
• Height: 415 mm
• Weight: 3.3 kg
