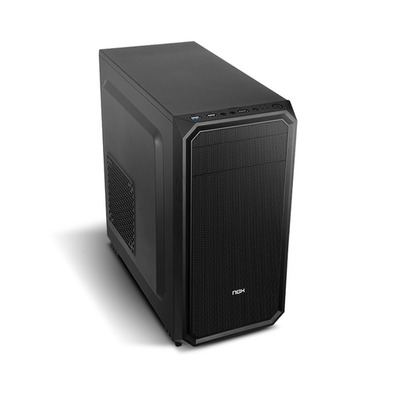

Nox Coolbay MX2. Minitorre

Coolbay MX2

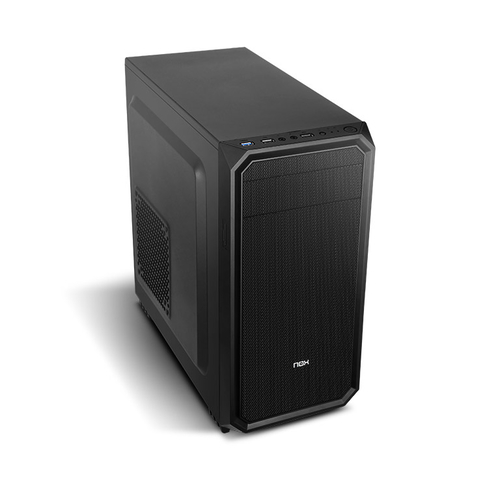

Nox expands the Coolbay series with Coolbay MX2. A compact and elegant chassis, designed completely in black with metal finish mesh on the front.

- Integrated card reader;
- Space for large graphics;
- Compatible with liquid cooling;
- Up to 4 fans;
- Frontal metal mesh;
- High speed USB 3.0 port;
- Capacity for 4 hard drives.

Elegant and compact

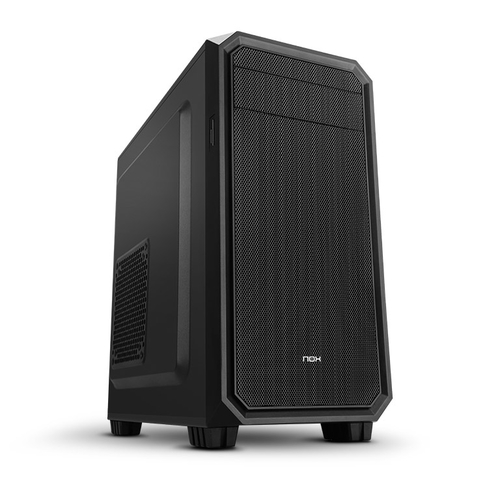

Coolbay MX2 is a compact chassis in mini-tower format compatible with mATX plates. Made entirely in black both inside and outside, the front features metal finish mesh, following the design of the other models of the Coolbay series.

Excellent cooling

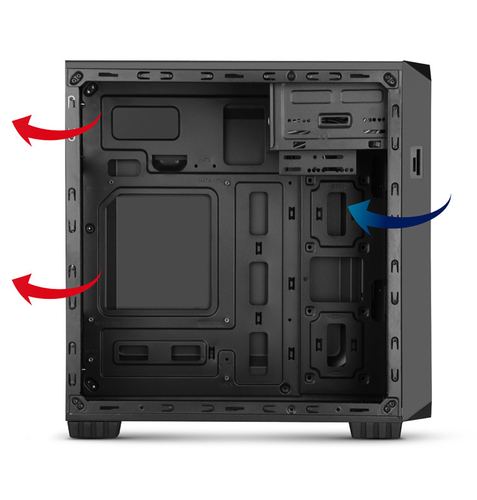

Coolbay MX2 has a 120 mm fan pre-installed on the front and the possibility of installing 3 additional fans; one 120 mm on the front, one 120 mm on the back and one 120 / 140 mm on the side.

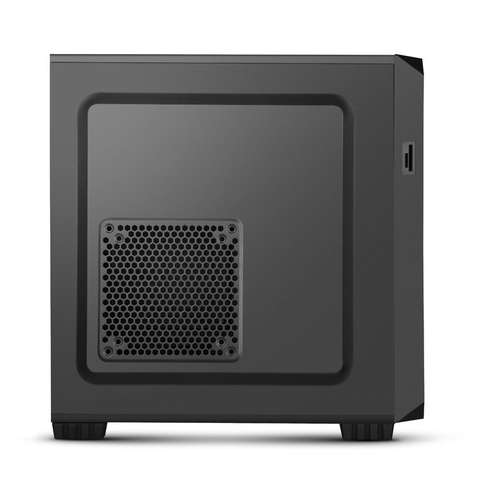

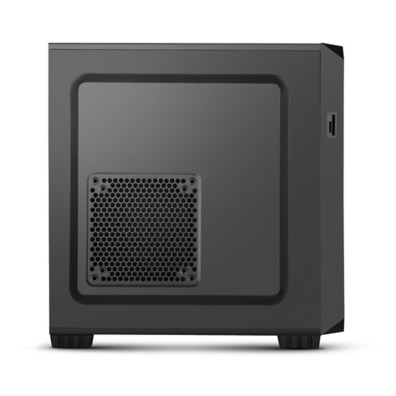

Thanks to the mesh metal of the front and the side grid, the air flow inside the equipment is guaranteed, ensuring optimal cooling of all components.

On the other hand, Coolbay MX2 is prepared to house liquid cooling systems inside, with space for a 120 / 240 mm radiator on the front and a 120 mm radiator on the back.

Extensive benefits

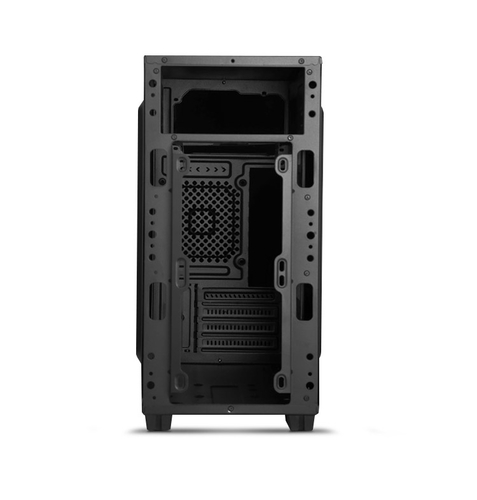

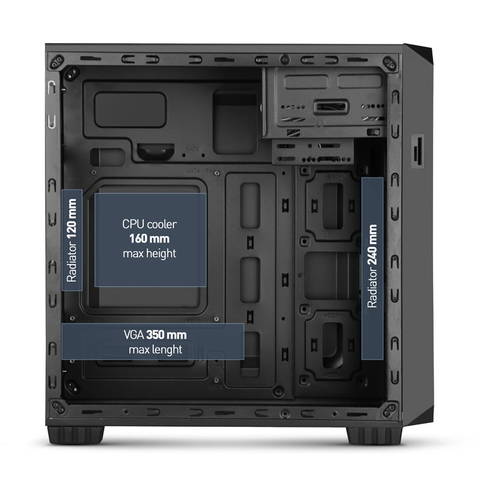

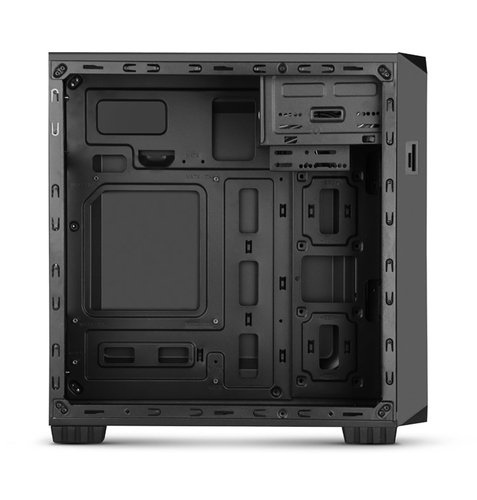

While it is a small chassis, its interior offers possibilities for hosting a high-performance equipment, since it has the capacity to install graphics up to 350 mm in length and CPU coolers of a maximum height of 160 mm. It has an external bay of 5.25 "and four internal bays, two of 3.5" and two of 2.5 "as well as 4 expansion slots. In addition, we can install a standard ATX power supply.

Comfort and easy access

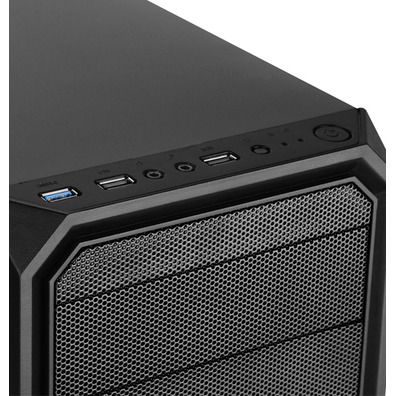

For more accessibility to connections, the Coolbay MX2 top panel incorporates access to: a USB 3.0 port, two USB 2.0 ports, and audio connections. And also, on the side, it incorporates a SD / micro SD card reader.

• Form factor: Mini-Tower
• Type: PC
• Materials: Metal, of plastics
• Number of ports 5.25 ": 1
• Number of ports 3.5 ": 2
• Support parent card factor forms: ATX, Micro- ATX
• Product color: Black
• Number of bays 2.5: 2
• Number of internal bays of 3.5 ": 2
• Number of external 5.25 "receptacles: 1
• Side window: No.
• Number of expansion slots: 4
• Maximum height of the coolest CPU: 16 cm
• Maximum length of the graphics card: 35 cm
• Power supply included: No.
• Number of USB 2.0 ports: 2
• Number of ports type A USB 3.0 (3.1 Gen 1): 1
• Audio input: Yeah.
• Audio output: Yeah.
• Front fans installed: 1x 120 mm
• Maximum of front fans: 1
• Diameter of supported front fans: 120 mm
• Maximum side fans: 1
• Diameter of supported secondary fans: 120.140 mm
• Maximum of subsequent fans: 1
• Diameter of supported rear fans: 120 mm
• Refrigeration: Yeah.
• Liquid cooling capacity: Yeah.
• Compatible front radiator fan size: 120,240 mm
• Compatible rear radiator fan size: 120 mm
• Hard drive sizes supported: 2.5.3.5 \'
• Integrated reading card: Yeah.
• compatible memory cards: MicroSD (TransFlash), SD
• LED indicators: Yeah.
• Width: 198 mm
• Depth: 400 mm
• Height: 396 mm
• Weight: 2,4 kg
