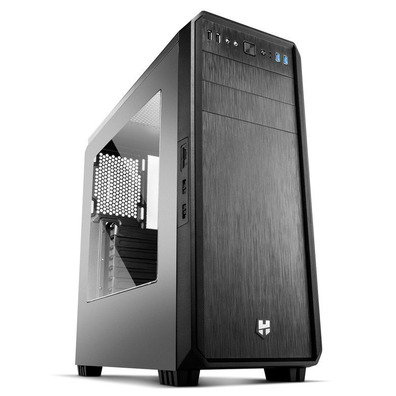

NOX Hummer ZS USB Tower 3.0 Black

NOX Hummer ZS USB Tower 3.0 Black

Hummer ZS Zero is the most compact chassis in the renewed Hummer series. A black and white half-life with a large acrylic window that allows you to see the inside of the equipment and all its components.
Inside it is possible to house a high performance equipment with an excellent cooling system that will allow the equipment to operate in an optimal way.

• Isolated compartment for power supply and HDD
• Clear side window
• Two speed controllers for up to 4 fans with three positions (LOW / STOP / HIGH)
• Great choice for liquid cooling systems
• Includes 2 120 mm fans
• SD / micro SD compatible card reader
• High-speed USB 3.0 connection
• Detail of metal mesh on the front
• Magnetic dust filter
• Excellent system to order the cables
• Space to install up to 7 fans
• Compatible with graphics up to 380 mm

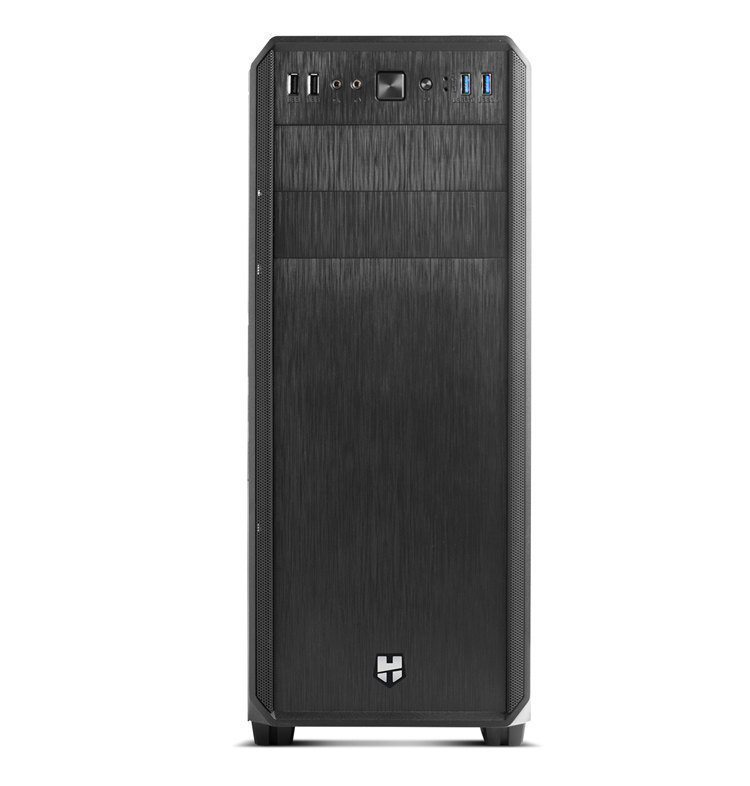

Access and front panel

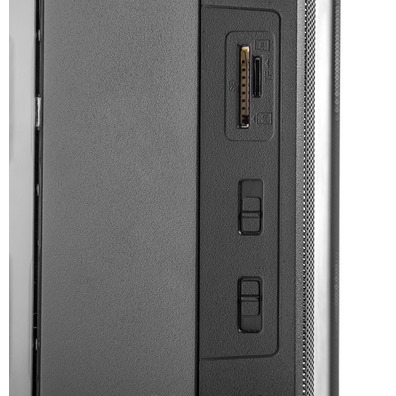

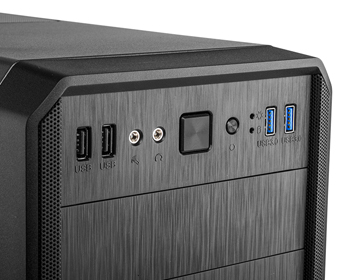

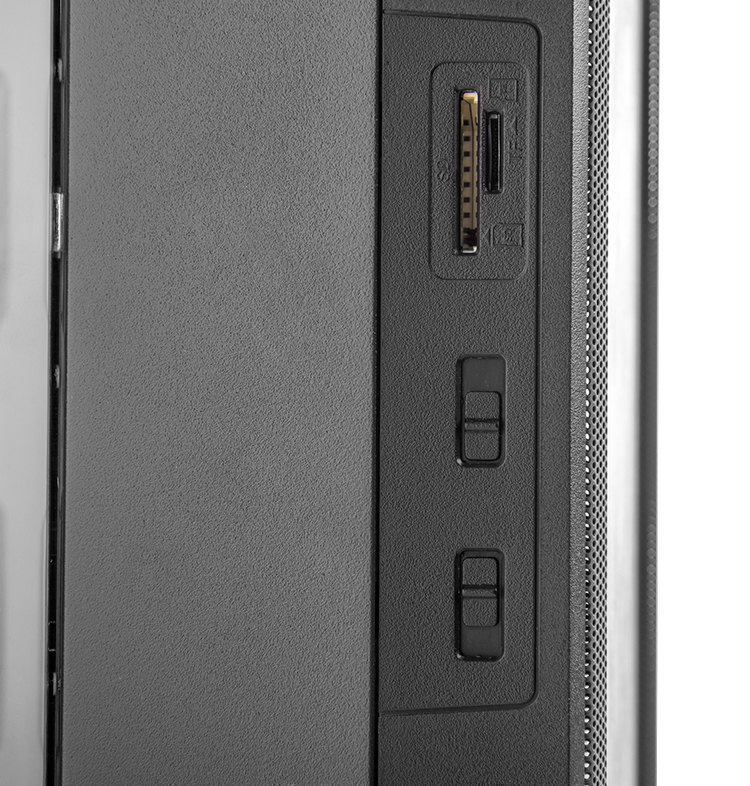

The Hummer ZS Zero front panel has two USB 2.0 ports and two USB 3.0 ports, as well as audio connections. On the side panel we find, on the one hand, two speed controllers to control up to 4 fans, adjustable in 3 positions: LOW / STOP / HIGH, and on the other hand, SD and Micro SD card reader, which facilitates accessibility to the connections of all our external devices.

Cabling and air flow management

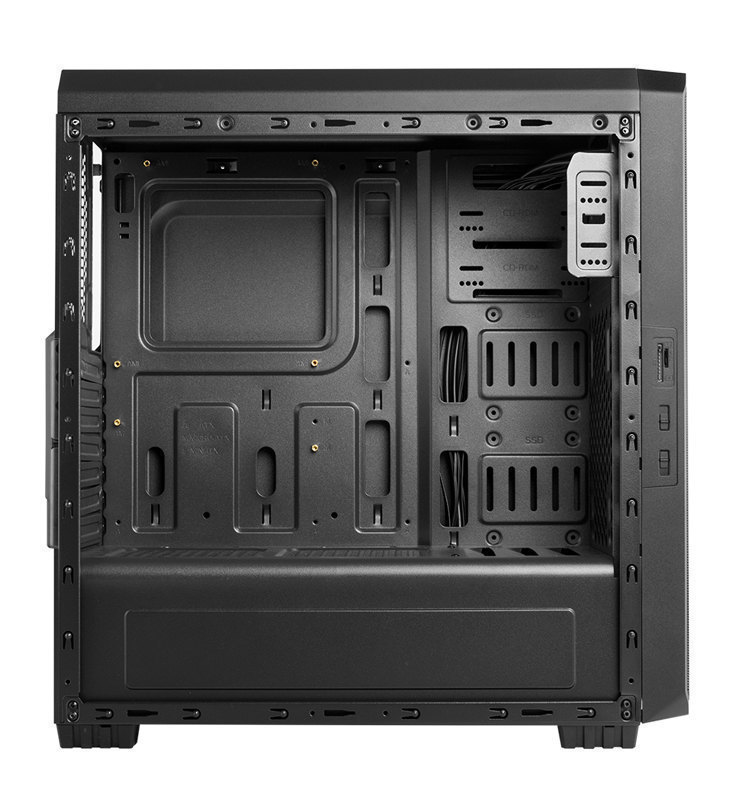

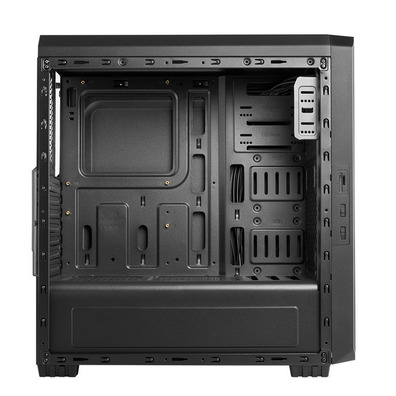

Thanks to the large side for wiring management, it is possible to make a clean and orderly assembly behind the base plate, so that nothing influences the air circulation.

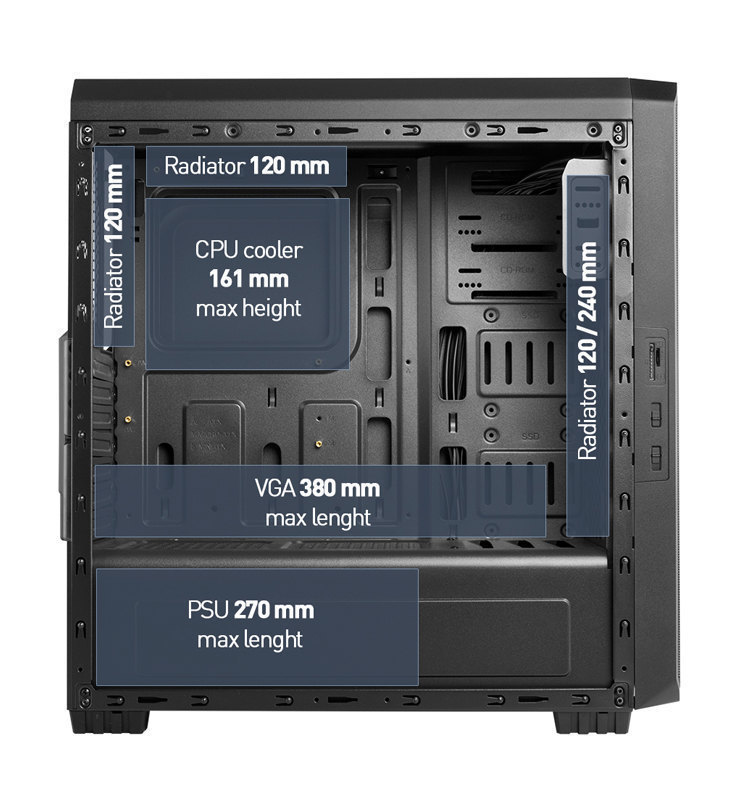

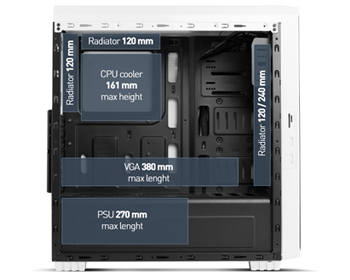

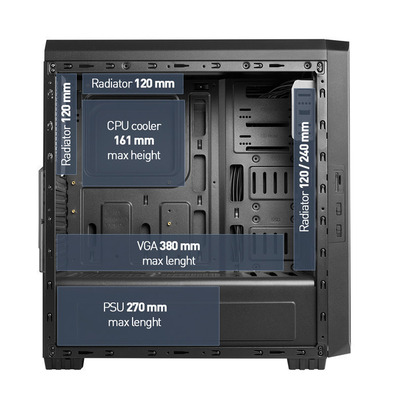

Despite being the small one in the series, Hummer ZS Zero has space to house a high performance equipment, as inside it is possible to install a long graph, up to 380 mm and coolers of a maximum height of 161 mm.

Storage capacity

As for storage options, Hummer ZS Zero has space to install up to 6 units, as it has two external bays of 5.25 "and capacity for four more units inside, two of 3.5" on the bottom and two SSD of 2.5 "on the side.

This detail allows better use of the interior space, making a cleaner assembly that helps improve the air flow.

Design

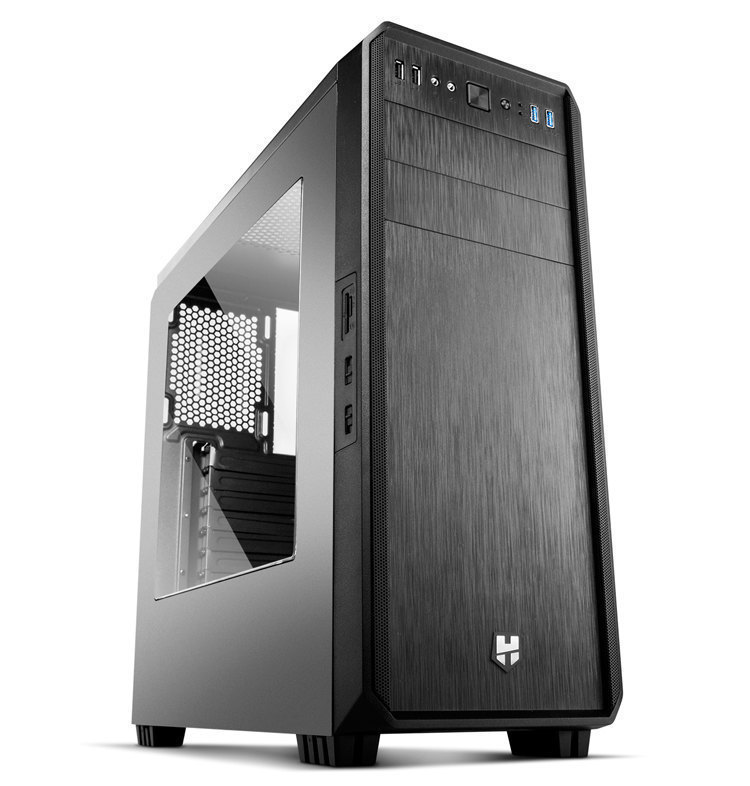

The small Hummer series continues with the characteristic design of the entire series, sober front and elegant finishes. The front has been designed with abrupt effect and mesh metal details on the sides.

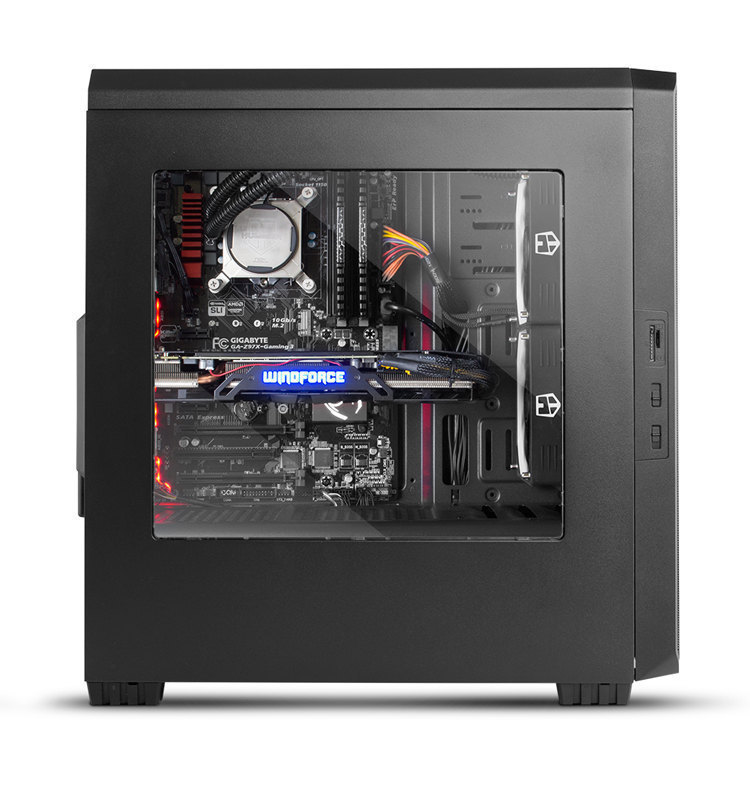

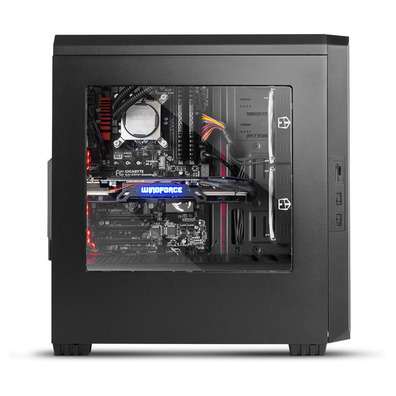

The acrylic window on the side will allow you to have a perfect view of the inside of the equipment and all its components.

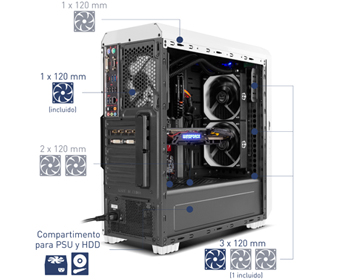

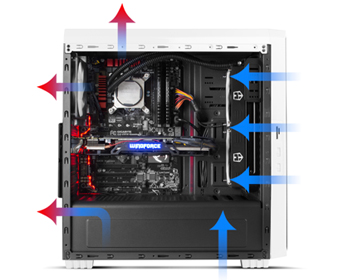

Ventilation system

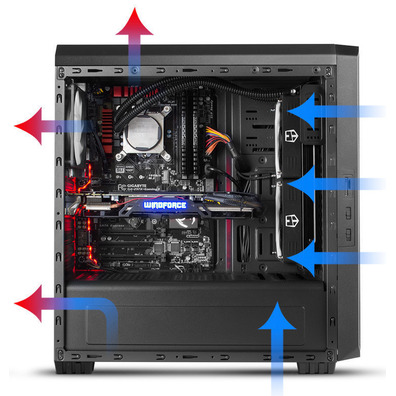

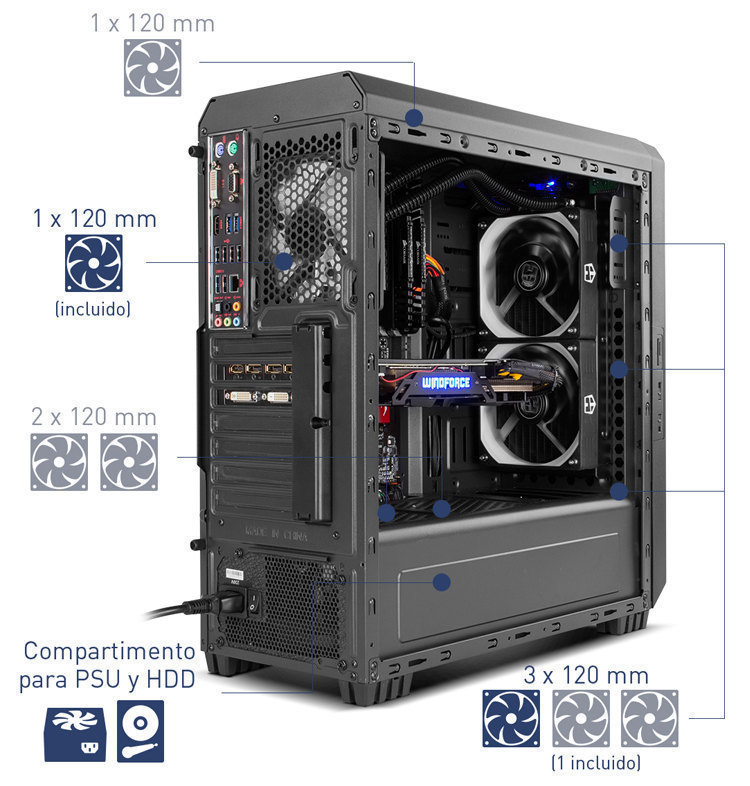

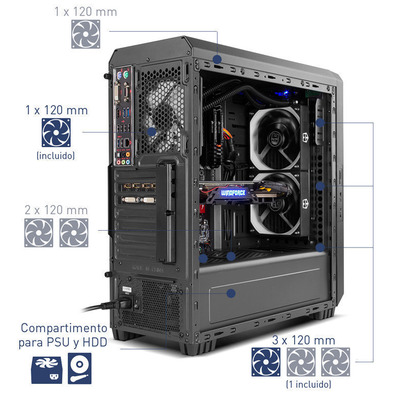

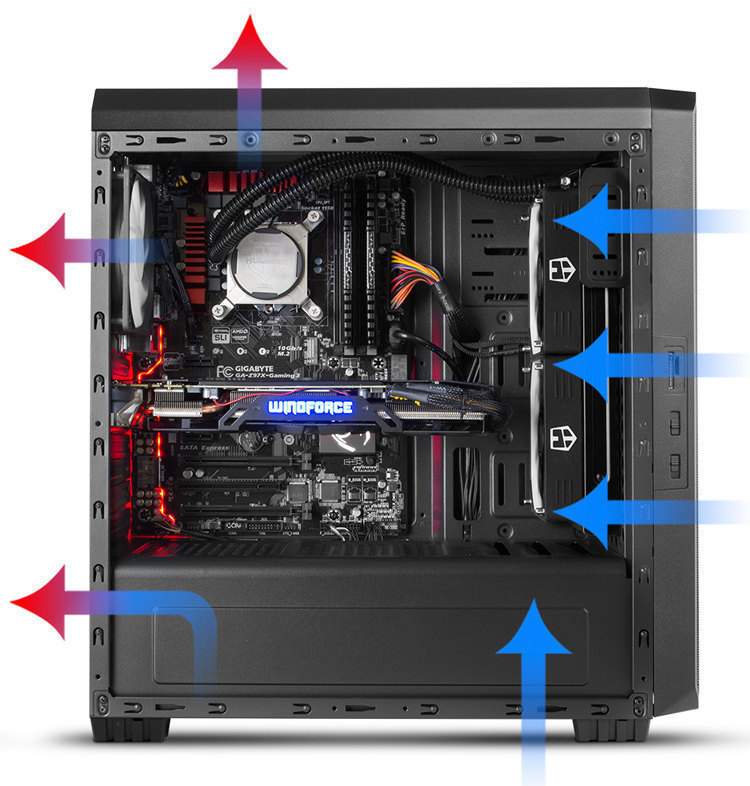

Hummer ZS Zero has an excellent ventilation system, which ensures effective air flow inside the equipment. It has two 120 mm fans, one on the front and one on the back. In addition, it offers the possibility to install three fans more than 120 mm; two on the front and one on the top.

It has a compartment at the bottom to locate the PSU and the HDD, so that the heat released by them is not transferred to the other components. In addition, this compartment has the possibility of installing two 120 mm fans at the top to extract the heat generated by the PSU and the HDD.

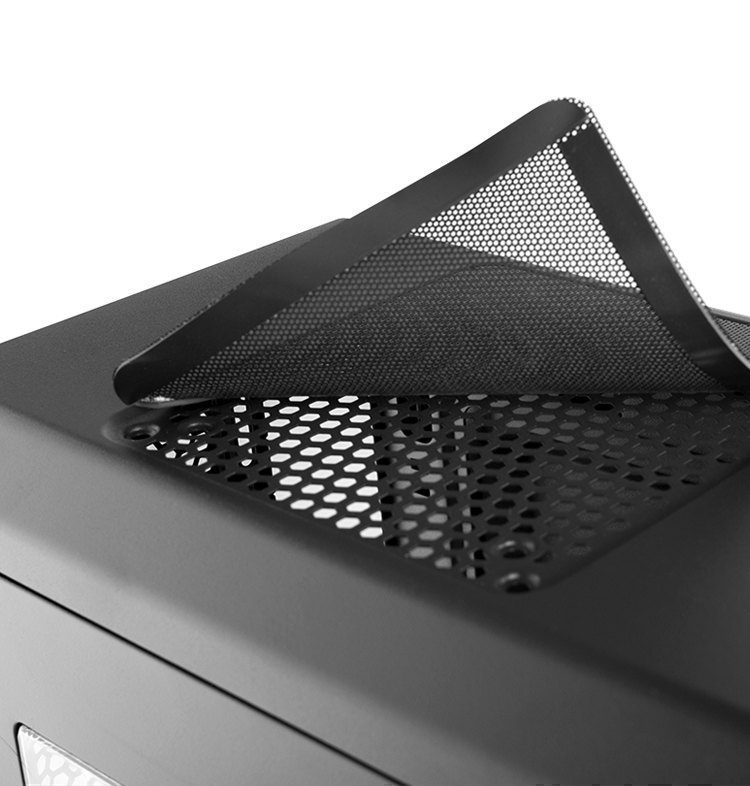

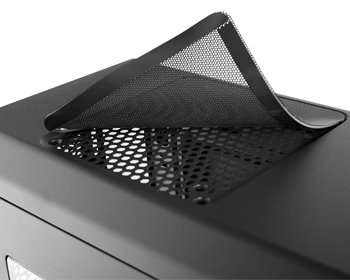

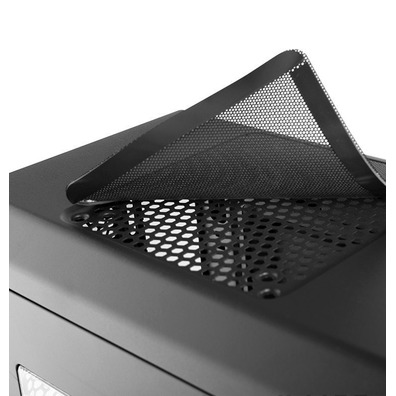

In its top panel it has an imanted dust filter, which in addition to helping us keep the equipment clean, will help to drive the heat from the inside out to maintain an excellent air flow.

Cooling options

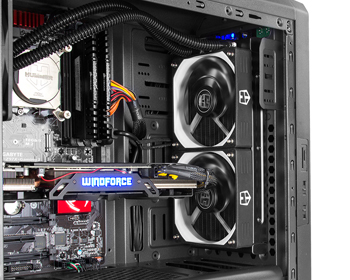

In order for all the components of the interior of our equipment to function to the maximum performance, it is necessary to maintain a correct cooling, so Hummer ZS Zero has the possibility to install liquid cooling systems inside. Its front has space for cooling systems with 240 mm double radiator and on the top and rear panel it is possible to house a 120 mm radiator.

Specifications
