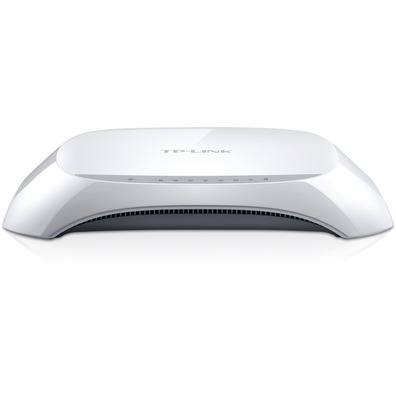

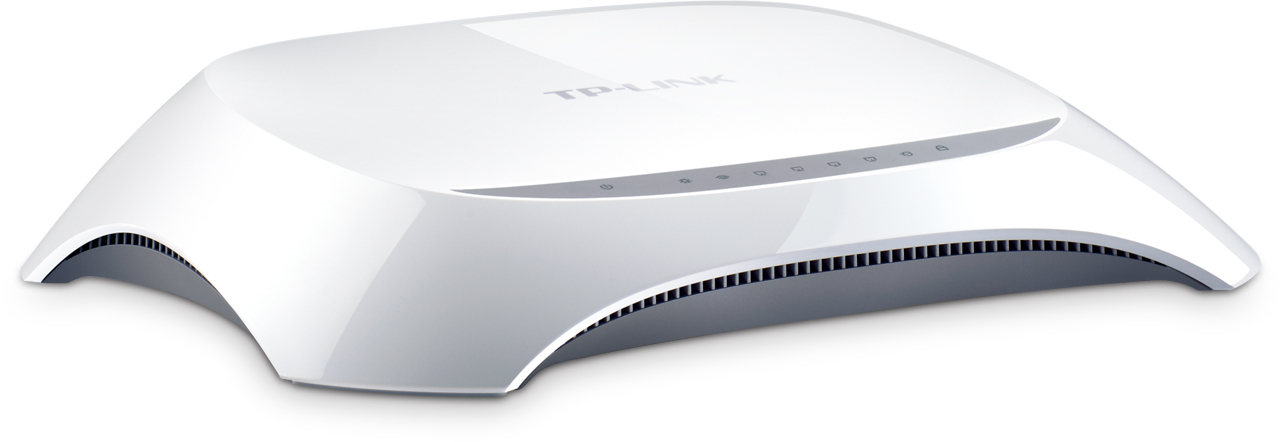

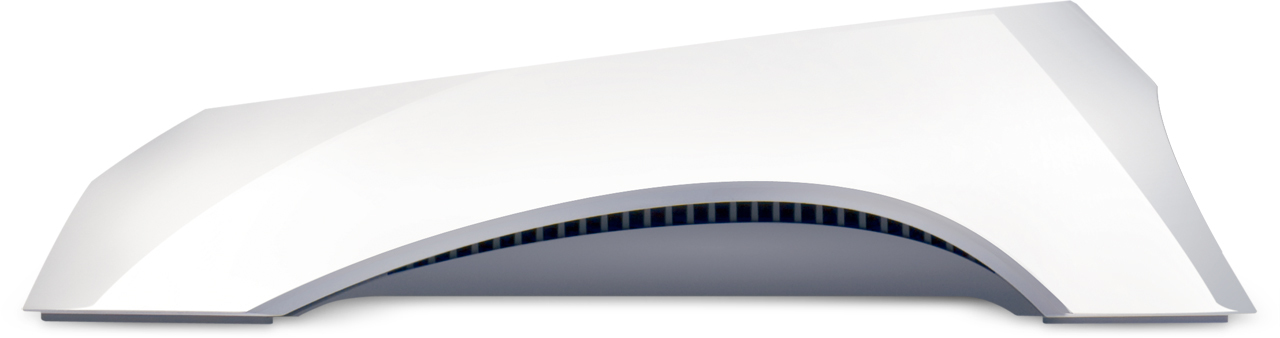

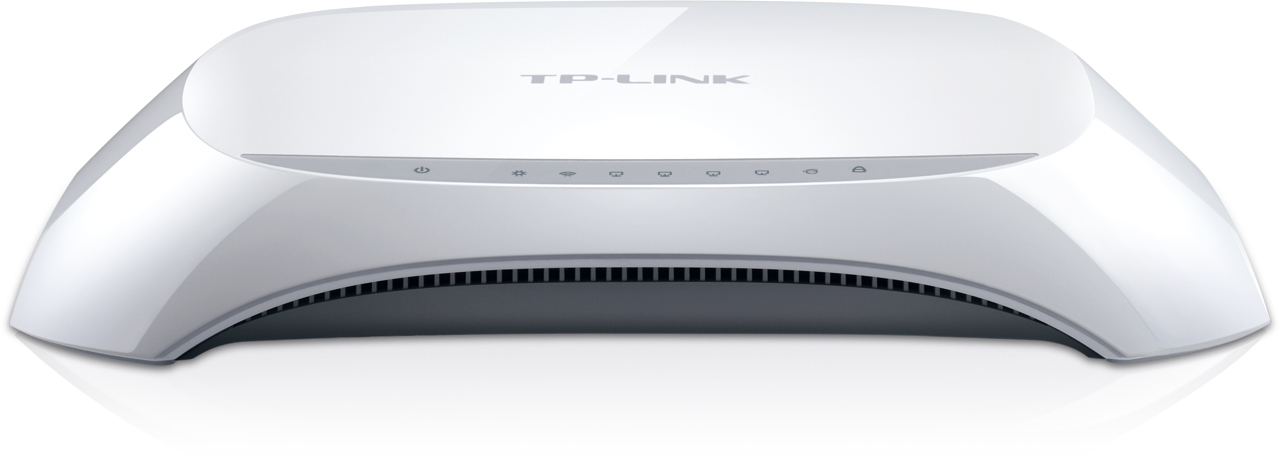

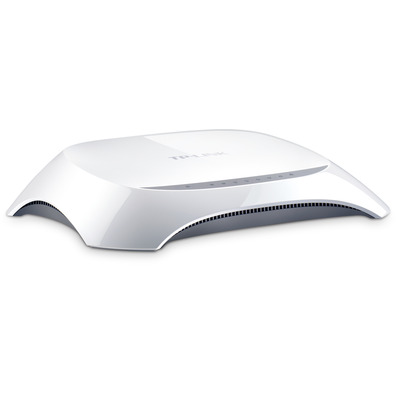

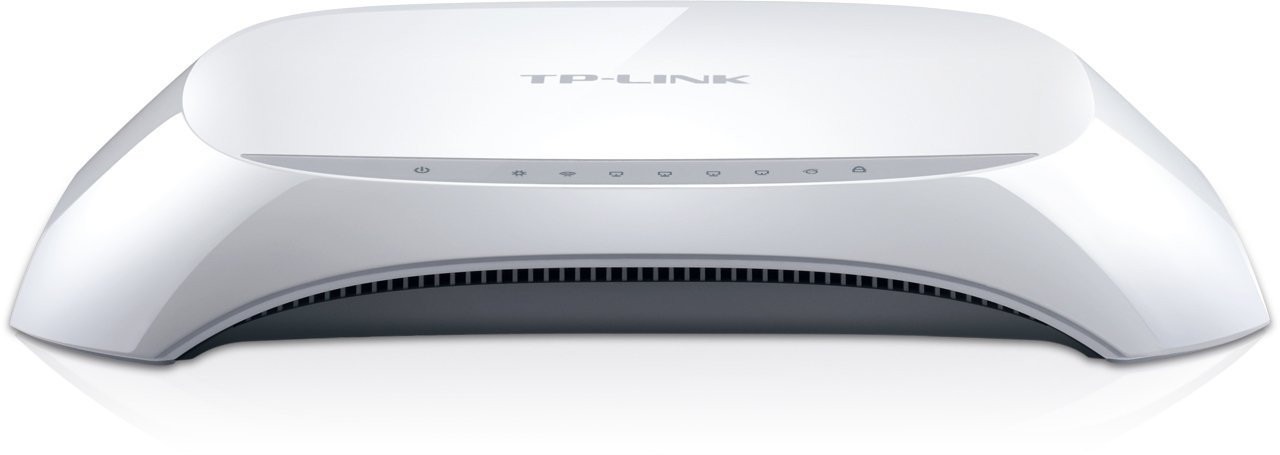

WIRELESS ROUTER TP-LINK N300 TL-WR840N

TP-LINK is a global supplier of products for SOHO and No. 1 networks of market participation in China, with products translated to more than 100 countries to tens of millions of customers. Committed to a powerful R & D, effective production and strict quality management, TP-LINK continues to offer award-winning products of wireless communication networks, ADSL, Rockets, Switches, IP cameras, Powerline adapters, printing servers, media converters and network adapters for the world\'s end users.

Based on the confidence of tens of millions of customers, TP-LINK is growing to become one of the most competitive suppliers of network products with aspirations to become one of the 3 network brands and to fight for the greatest participation of the world market, as it advances in the world of networks to better serve our most valuable customers with a life-saving product.

Specifications

TP-LINK TL-WR840N. Wi-Fi standard: IEEE 802.11n, WLAN data transfer rate (max): 300 Mbit / s, Wi-Fi standards supported: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN, data transfer speed: 10,100 Mbit / s, Cabling technology: 10 / 100Base-T (X). Network standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, Sensitivity receiver: 270M: -68dBm @ 10% PER 130M: -68dBm @ 10% PER 108M: -68dBm @ 10% PER 54M. Type of antenna: Internal. Security algorithms supported: 128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, VPN support: PPTP, L2TP, IPSec

General

• TPLINK brand
• Guarantee 2 years of guarantee
• Part Number TL-WR840N
• Categories LAN WIRELESS

Technical details

• EC certification. FCC. RoHS
• Integrated on / off switch If
• Rack assembly No
• Energy control
• Input current 0.6

Packaging content

• AC adapter included If
• Cable included Alternate current
• Quick Configuration Guide If
• User Manual Yes

Administration characteristics

• Web-based administation If
• Restore Button Yes
• Service quality (QoS) support If
• Universal Plug and Play (UPnP) Yes

Network

• Frequency range 2.4 - 2.4835 GHz
• IEEE 802.3u, IEEE 802.11b, IEEE 802.11n, IEEE 802.3, IEEE 802.11g

Security

• WPA, WPA-PSK, WPA2, WPA2-PSK, 128-bit WEP, 64-bit WEP supported security algorithms
• MAC, address filter Yes
• Support VPN PPTP. L2TP. IPSec

Weight and dimensions

• Height 3.5 cm
• Width 18.2 cm
• Depth 12.8 cm

Other characteristics

• Sensitivity receiver 270M: -68dBm @ 10% PER, 108M: -68dBm @ 10% PER, 54M: -68dBm @ 10% PER, 11M: -85dBm @ 8% PER, 130M: -68dBm @ 10% PER, 6M: -88dBm @ 10% PER, 1M: -90dBm @ 8% PER
• 9VDC energy requirements
• Type of internal antenna

Wireless LAN features

• Number of antennas 2
• WLAN data transfer speed, supported 11.54.300 Mbit /

Connectivity

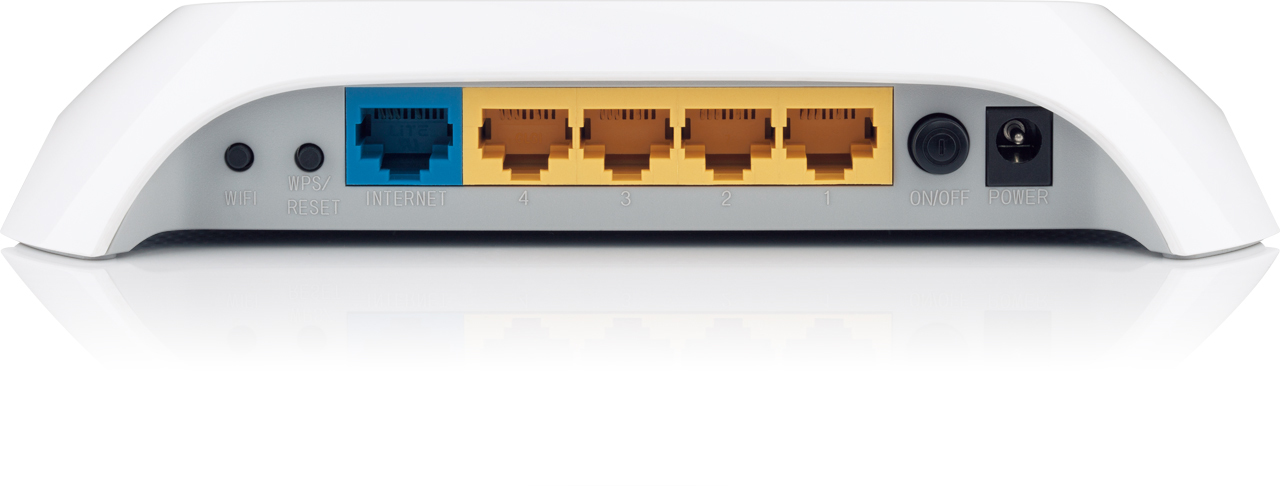

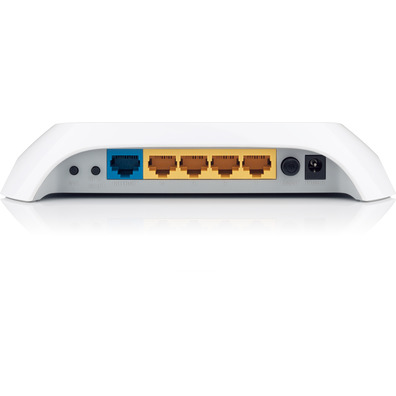

• Ethernet (RJ-45) 4
• Input Jack CD Yes
• Color
• Grey color. White

Protocols

• DHCP, client Yes
• DHCP, server Yes
• DMZ Support If

Features of LAN Ethernet

• ethernet connection If
• Wiring technology 10 / 100BASE-T (X)

Data transmission

• Transfer speed 10.100 Mbit / s

Environmental conditions

• Relative humidity interval during storage 5 - 90%
• Relative humidity interval for operation 10 - 90%
• Storage temperature interval -40 - 70 ° C
• Operating temperature interval 0 - 40 ° C
• Lighting / Alarms
• LED indicators Yeah.

Operating system / software

• SLinux operating system supported If
• MAC operating system supported If
• Windows supported operating system:

Windows Vista Enterprise x64, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 2000, Windows 7 Home Premium x64, Windows 7 Home Professional x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Home Basic, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Last Business x64, Windows Windows Vista Business x64, Windows 8 Home Professional, Windows 8 Home XP, Windows 8 Home Premium, Windows 8 Home Premium, Windows 8 Home Premium, Windows xP, Windows 8
