Wireless Router Tp-Link N300 tl-wr810n

Router Wi-pocket Fi / AP / TV adapter / Repeater to 300Mbps TL-WR810N

Portable design, ideal for home and travel use

Integrated power supply, does not need the typical voluminous adapter

Supports Wireless Router, Repeater, Customer and Access Point modes

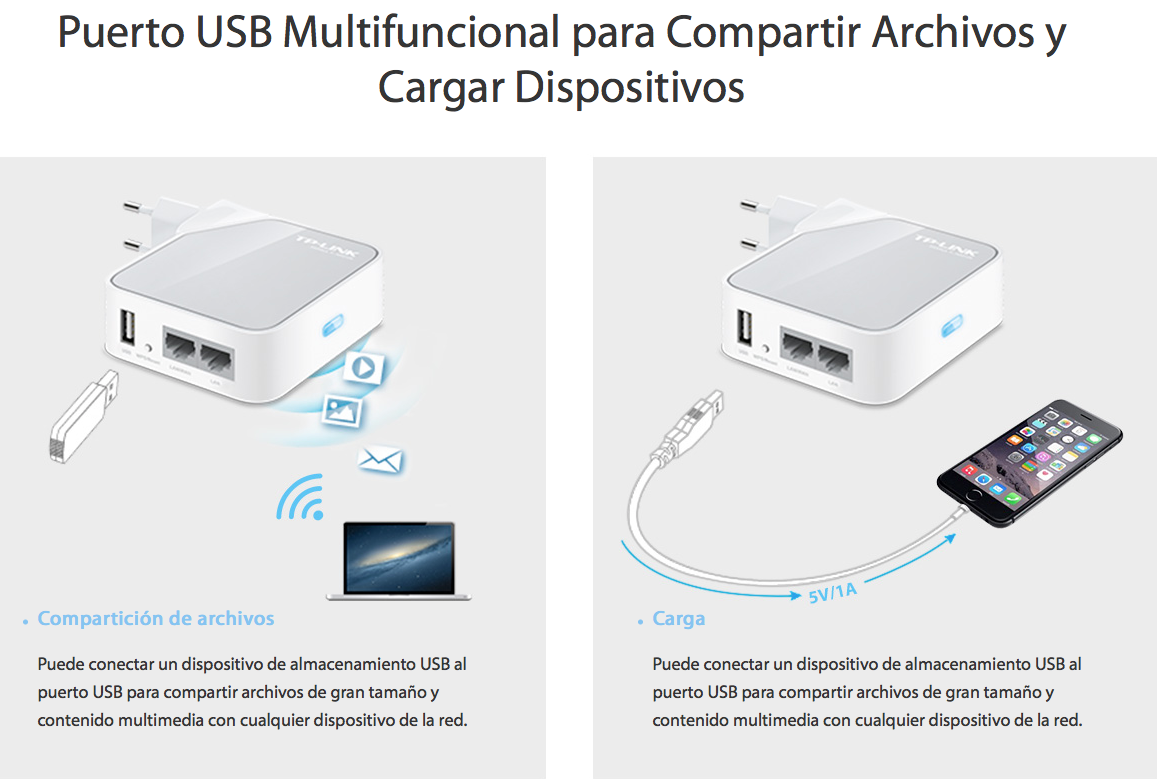

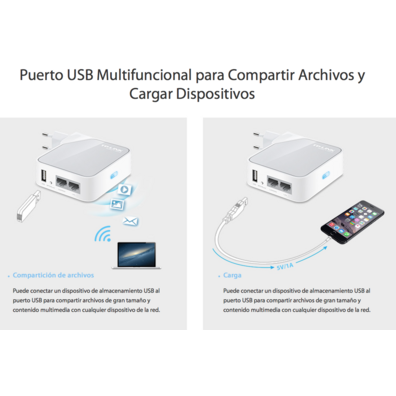

Versatile USB port to share files and battery load

Create an instant Wi-Fi Hotspot!

Router Wi-Fi pocket / AP / TV adapter / 300Mbps

TL-WR810N

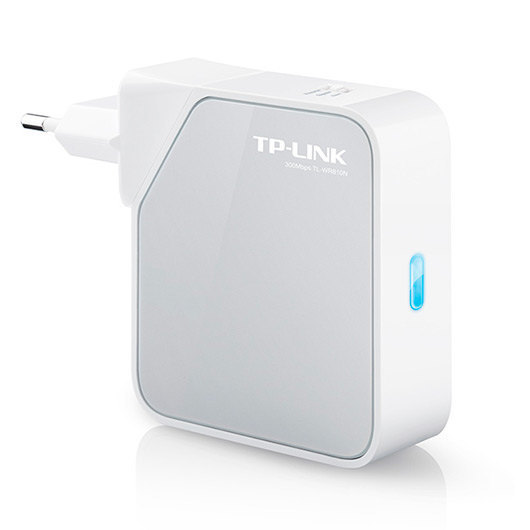

Portable and Compact

The compact size of the TL-WR810N allows you to save it in your pocket and take it with you, sharing the Internet access wherever you go. The built-in adapter makes it perfect for travelers, students and anyone who wants to go with Wi-Fi everywhere.

Multiple modes of operation ideal for domestic or travel use

To meet the wireless needs of almost all situations that may arise, the TL-WR810N has Router, Repeater, Customer and Access Point modes.

On the Journey Road

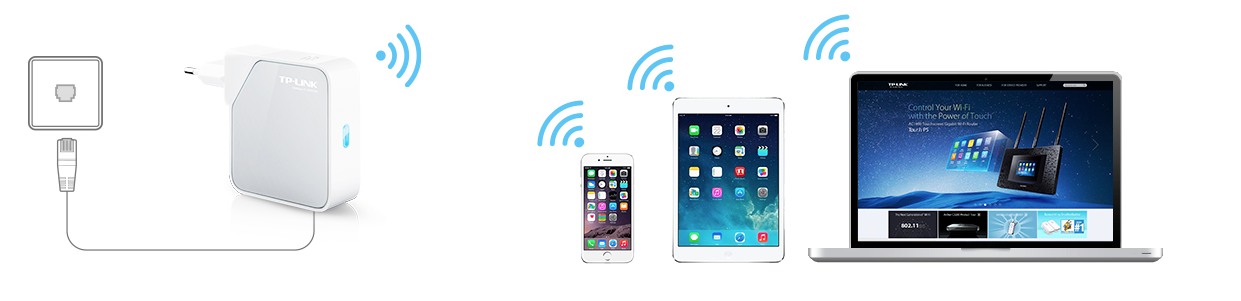

Create a private wireless network and share Internet connection with multiple Wi-Fi devices instantly. Ideal for use in hotels.

♪ Share the Internet connection and enjoy while traveling the content transmission with a Chromerecast or Amazon Fire TV Stick.

At home

• Repeater mode

Extend the existing Wi-Fi to improve signal intensity and maximize coverage.

• Customer Mode

It allows devices that require a cable connection to access an existing Wi-Fi network.

• Access Point Mode

It creates a wireless network for Wi-Fi devices.

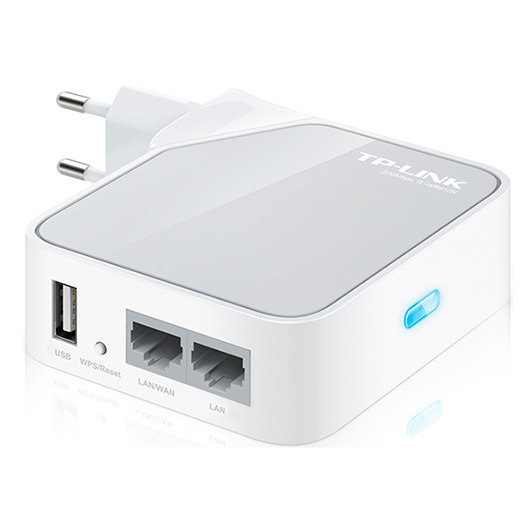

HARDWARE CHARACTERISTICS

• Interfaz1 Puerto WAN / LAN 10 / 100Mbps
• 1 Port LAN 10 / 100Mbps
• 1 USB port
• 1 Button of Reset
• 1 Operation mode selection switch

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions85 x 75 x28 mm (3.3 x 3.0 x 1.1 in.)

Type of AntenaIntegrated

INALAMBRIC CHARACTERISTICS

• Frequency
• List11n rate: Up to 300Mbps (dynamic)
• 11g: Up to 54Mbps (dynamic)
• 11b: Up to 11Mbps (dynamic)
• Reception270M sensitivity: -70dBm @ 10% PER
• 130M: -75dBm @ 10% PER
• 108M: -88dBm @ 10% PER
• 54M: -78dBm @ 10% PER
• 11M: -100dBm @ 8% PER
• 6M: -92dBm @ 10% PER
• 1M: -100dBm @ 8% PER
• Transmission power:
• < 20dBm (2.4GHz)
• FCC:
• < 30dBm
• Wireless Modos Router, Access Point, Customer, Repeater

Inalamonic Functions Activated / Disactivated Wireless Emission, WDS Bridge, WMM, Wireless Statistics

Wireless safety64 / 128 / 152-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

SUFTWARE CHARACTERISTICS

• Quality of WMM Services and Band Width Control
• Type of WANIP Dynamics / Static IP / PPPoE / PPTP / L2TP
• Access Control Management
• Local management
• Remote Management
• DHCPServer, Customer, List of DHCP Customers and Address Reserve
• Shipping of PuerosVirtual Server, Port Triggering, UPnP and DMZ
• DNS Dynamic DynDns, Comexe and NO-IP
• VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
• Local Management Access Control, Hosting List, Access Programming, Rules Management
• Firewall Security, Firewall SPI
• IP address filter / MAC address filter / Dominion filter
• Linking IP and MAC Directions

OTHER

• EC, FCC, RoHS certificates

Content of the TL-WR810N package

• Ethernet cable
• Quick installation guide

Requirements of Microsoft ® Windows ® 98SE, NT, 2000, XP, Vista ™ or Windows 7 / 8 / 8.1 / 10, MAC ® OS, NetWare ®, UNIX ® or Linux.

• Environmental Factors
• Storage temperature: -40-70-o (-40-158-o)
• Operating humidity: 10% ~ 90% without condensation
• Storage humidity: 5% ~ 90% without condensation
