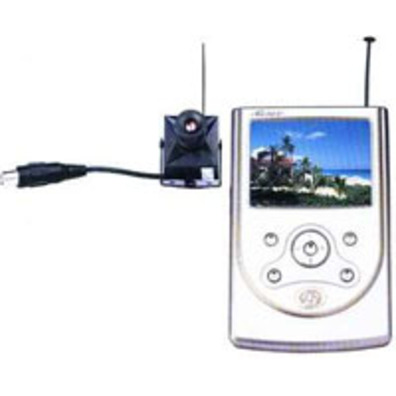

Wireless LCD Receiver + 1 Security Camera

Product Features:

• Receive frequency: 900MHz-2150MHz

• Frequency System: PAL/NTSC automatically chang

• LCD definition: 480x240

• Camera apparatus: 1/3, 1/4 picture sensor

• Horizontal definition: 380 lines



More Description:

• Can redirect the signal to TV

• Receive frequency: 900MHz-2150MHz

• Frequency System: PAL/NTSC automatically change

• LCD definition: 480x240

• Power supply: 4 x AA alkaline batteries or refresh battery, DC7.5V power supply

• Work Temperature: 0-40 degrees

• Dimension: 148x96x26.5 (mm)

• Box size: 260 x 160 x 60 (mm)

• Net Weight: 330g (including the battery)

• Camera apparatus: 1/3, 1/4 picture sensor

• System: PAL

• Validity pixel: 628 x 582

• Picture area: 5.78 x 4.19mm

• Horizontal definition: 380 lines

• Scan frequency: 50Hz

• Minimum illumination: 3LUX

• Sensitivity: +18DB-AGL ON-OFF

• Output Power: 50mW/250mW/300mW

• Output frequency: 1.2G

• Frequency control: adopt CPU frequency lock the wreath to control, with high frequency stability.

• Tramsmission signal: Picture

• Deliver the distance: 50-100M

• Voltage: DC+9V-DC+12V

• Current: 300mA

• Power consumption: <640mW



What's inside the box:

• RC800 LCD Wireless Receiver (x1)

• 211C Wireless Cam (x1)

• AC 220V 2 Flat Pins Power Adaptor for Cam (x1)

• AC 100V~240 2 Round Pins Power Adatpor for LCD Receiver (x1)

• Car Lighter Adaptor for LCD Receiver (x1)

• AV cable (x1)

• English User Manual (x1)
