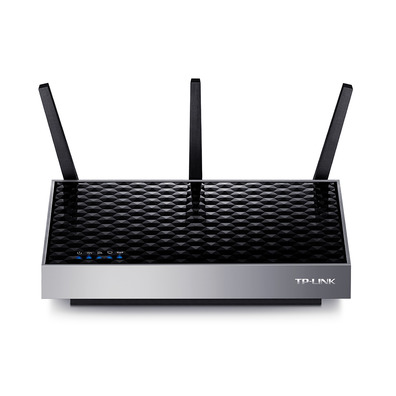

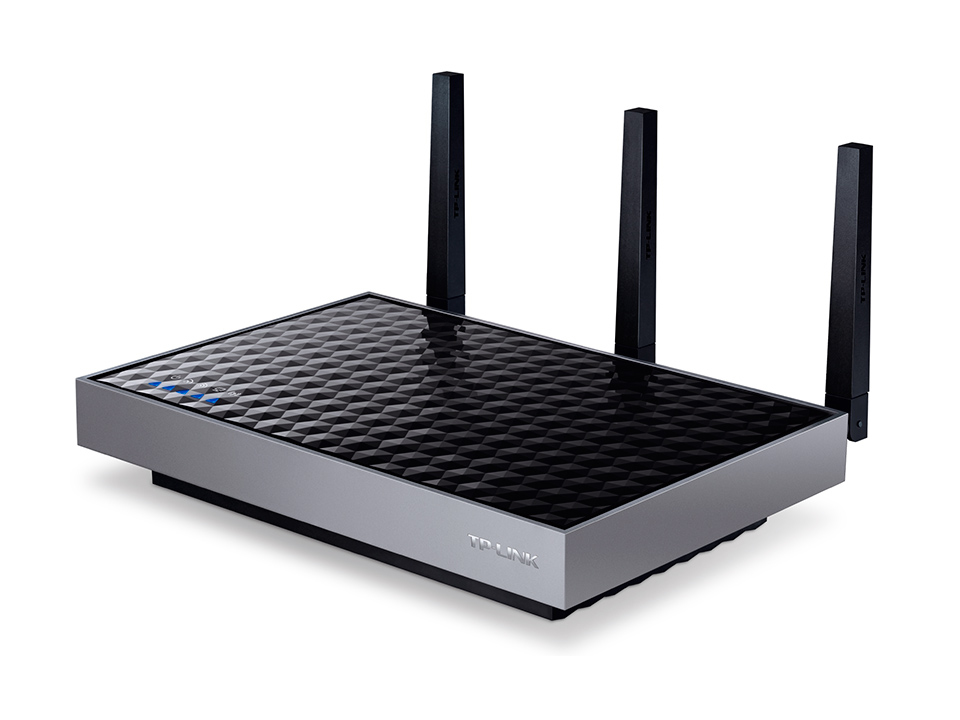

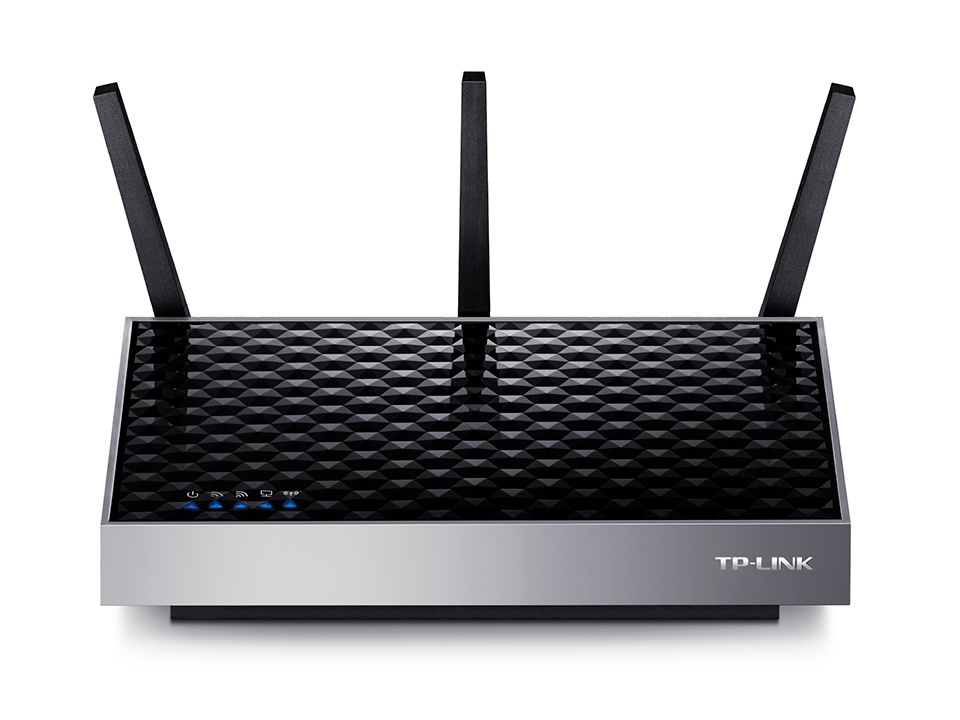

Wi-Fi coverage extension AC1900 RE580D
£109,64
You will receive your order within 5 - 6 days if you do it from Monday to Friday before 18 pmView options

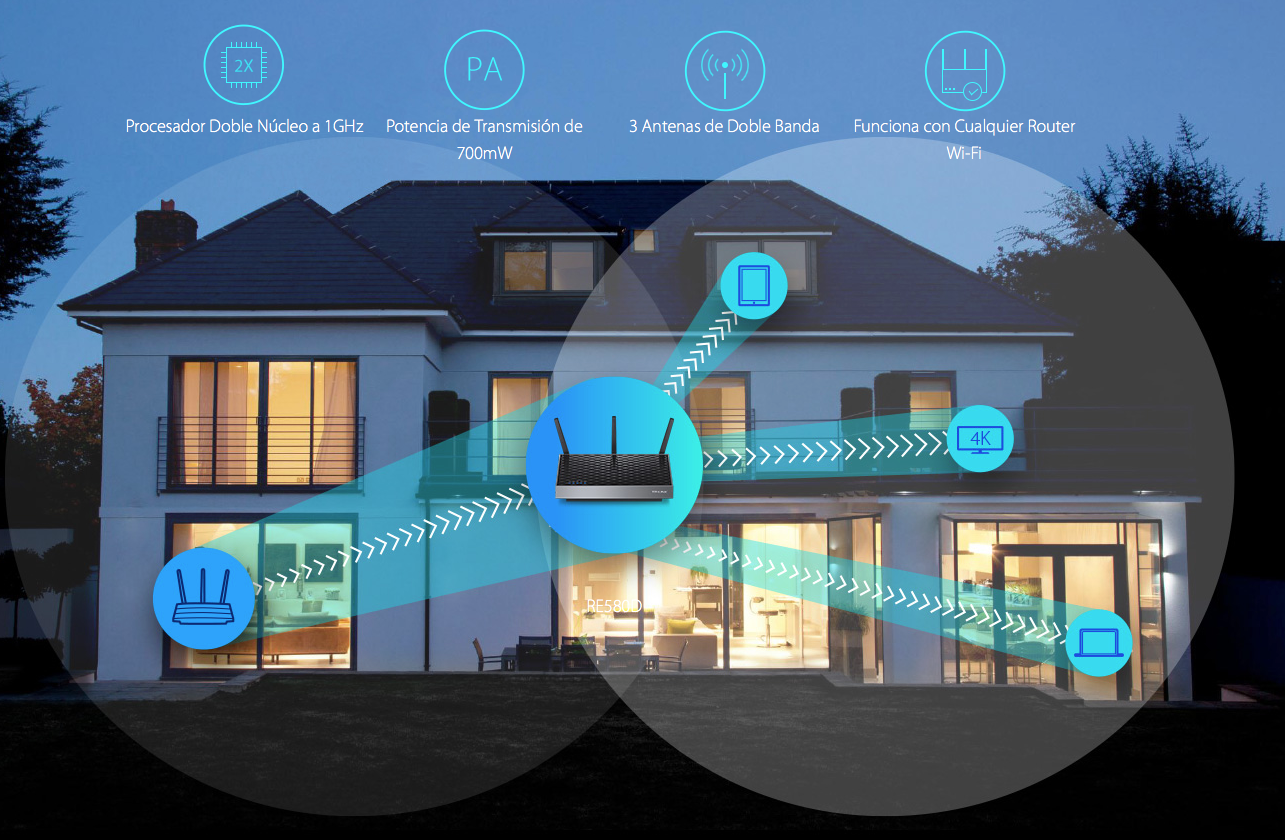

Expand the coverage of the Wi-Fi network up to 900 square meters
With three external double-band antennas and 700mW high-power amplifiers, the RE580D can establish a stable wireless connection with any Wi-Fi router and increase its network coverage to 930 square meters. The 1GHz double core processor provides maximum Wi-Fi performance, keeps your smartphone and tablets connected while moving by its
Beamforming technology to get Wi-Fi Oriented in a precise way
Beamforming Technology guides the Wi-Fi transmission in the direction of your connected devices,
Concentrating where the maximum signal needs it. The use of Wi-Fi bandwidth
Fi increases reach and provides connections
efficient and oriented Wi-Fi.
High Speed Mode
The RE580D can use both 5GHz and 2.4GHz bands to create
a single ultra fast connection by transmitting data by one band and receiving data by another.
This is particularly beneficial when performing tasks
for intensive bandwidth use as streaming of
HD video or online games.
Wi-Fi Double Band Simultaneous
Velocities up to 1900Mbps
The RE580D uses the Wi-Fi 802.11ac standard to deliver Wi-Fi dual-band connections
with combined speeds up to 1900Mbps (1.3Gbps in the 5GHz and 600Mbps band
in the 2.4GHz band). This impressive speed means you can count on the
RE580D to provide reliable connections for intensive use tasks of width of
band like streaming HD / 4K video, play online without cutting and downloading large files.

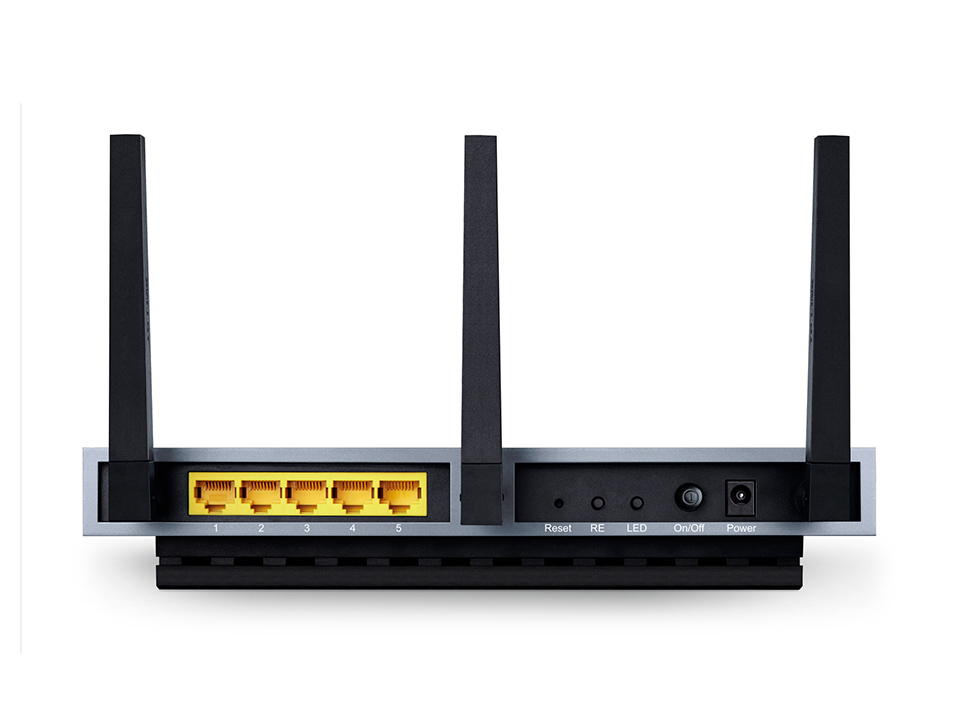

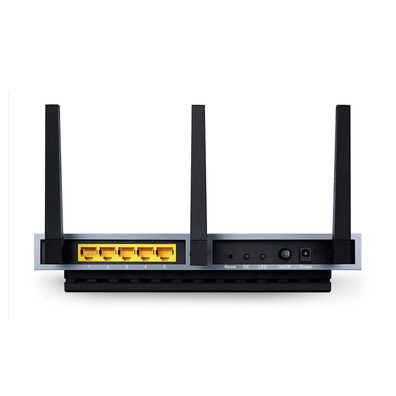

With five Ethernet gigabit ports, the RE580D provides fast and stable connections to all its favorite wiring devices, including smart TVs, video consoles, DVs and Blu-ray players.
HARDWARE CHARACTERISTICS
Interface 5 Ethernet 10 / 100 / 1000Mbps ports (RJ45)
E Button (Range Extensor), Reset Button, LED Button, Power Button
3 External Double Band Antennas
External Power Source 12V / 2.5A
Dimensions 242 X 162 X 44mm
INALAMBRIC CHARACTERISTICS
IEEE 802.11a / b / g / n / ac Wireless standards
Frequency 2.4GHz & 5GHz (11ac)
Signal rate 5GHz: up to 1300Mbps
2.4GHz: up to 600Mpbs
Reception sensitivity 5GHz:
11a 6Mbps: -92dBm
11a 54Mbps: -74dBm
11ac HT20 MCS8: -66dBm
11ac HT40 MCS9: -62dBm
11ac HT80 MCS9: -58.5dBm
2.4GHz:
11g 54M: -76dBm
11n HT20 MCS7: -73dBm
11n HT40 MCS7: -70.5dBm
EC Transmission Power:
< 20dBm (2.4GHz)
< 23dBm (5GHz)
FCC:
< 30dBm
Wireless Modes Extensive Coverage
Wireless functions Wireless statistics
Improvement in the Concurrent Mode in the Wi-Fi 2.4G / 5G bands
High Speed Mode for an exceptional speed in HD and video games
Access Control
LED control
Domain Access Function
Wireless safety 64 / 128-bit WEP
WPA-PSK / WPA2-PSK
OTHER
EC, FCC, RoHS certificates

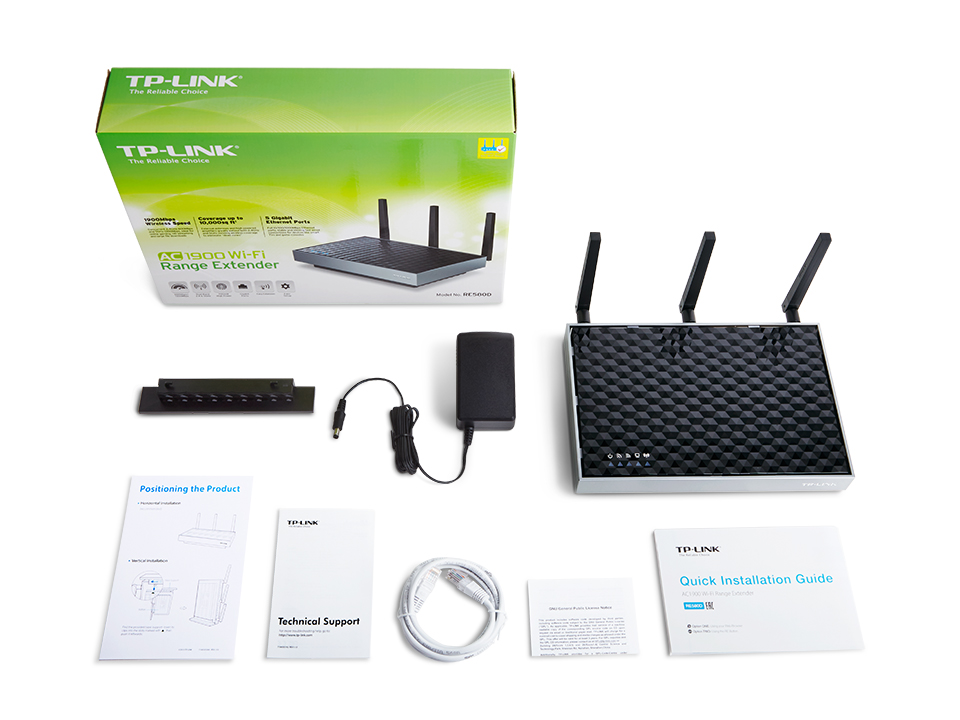

Content of the WI-Fi Extensor Package AC1900
Ethernet RJ-45 cable
3 Dismountable Antennas
Adjuster to Current
Quick Installation Guide
Box dimensions 340 x 240 x 76mm
Microsoft ® Windows ® 98SE, NT, 2000, XP, Windows 7, 8, Mac ® OS,
NetWare ®, UNIX ® or Linux
Environmental factors Operating temperature: 0 ° C ~ 30 ° C (32 ° F ~ 86 ° F)
Storage temperature: -40 ° C ~ 70 ° C (-40 ° F ~ 158 ° F)
Operating humidity: 10% ~ 90% without condensation
Storage humidity: 5% ~ 90% without condensation
