Sharkoon M25W ATX White

Sharkoon M25W ATX White

The sets of the Sharkoon M25 called the attention by its minimalist design ATX, which is particularly impressive due to its versatile possibilities of installation and tidy appearance, both inside and outside. The M25-W is available in both black and white. Your side panel acrylic delivers what players are looking for, staying lit thanks to its fan LED that comes mounted on the rear panel of the box. However, the distinctive feature of this elegant box is not its appearance, but its spectacular sound: thanks to its integrated sound card the players benefit not only the perfect combination of the team but also of incredible surround sound.

Sound virtual 7.1

The built-in sound card comes attached to the front connectors of the box and is appropriate as a second sound source for the operation of loudspeakers and headphones in the PC. In addition, systems current Windows can be upgraded easily with sound virtual 7.1. Audio software for Windows included allows you to carry out individual functions of eq with effects as well as settings in the microphone (volume increase). The settings can be stored and grouped in the PC for later use in four different profiles. On each of these four profiles can be applied an unlimited number of configurations. The integrated sound card connects to the motherboard via the internal USB port.

Organization systematic

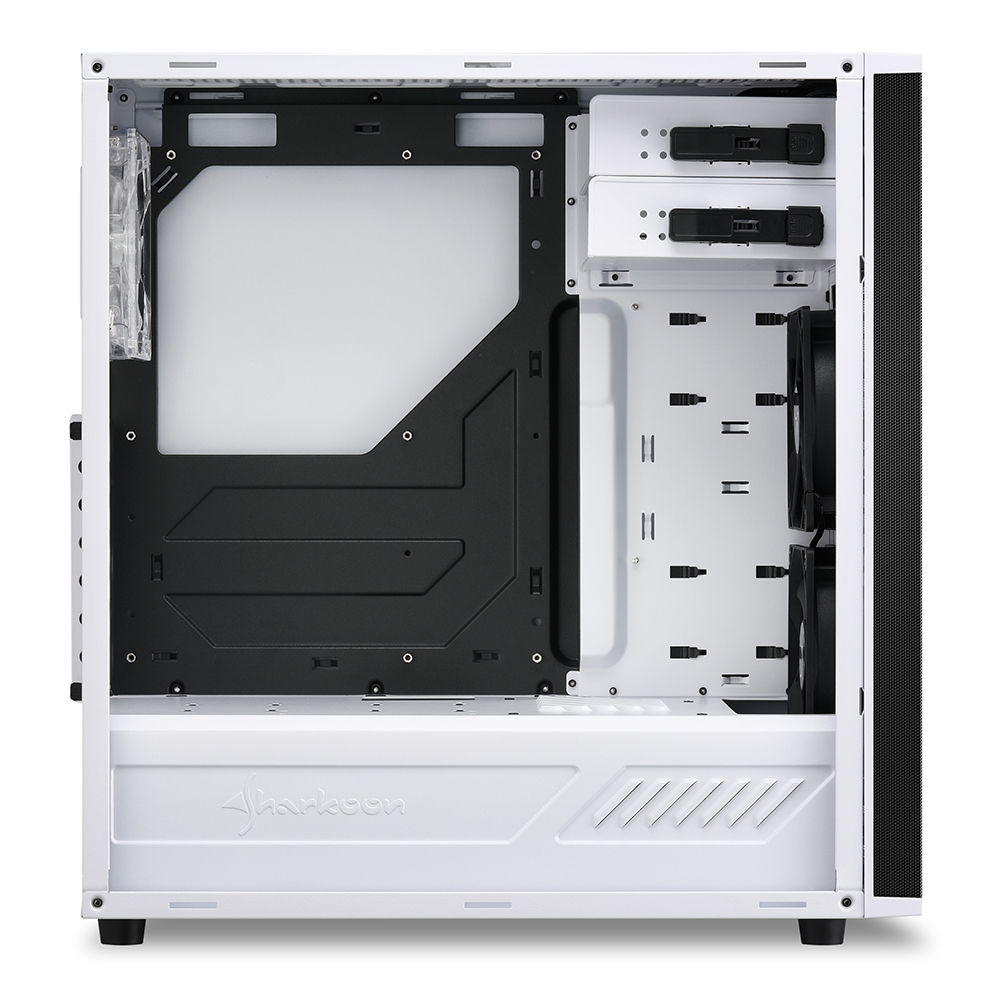

The construction is so special in the interior of the box offers huge possibilities for the installation unobtrusive of the various components. The wiring is inconspicuous, located well hidden in order to avoid affecting the flow of air inside the box. The source of power as well as up to three hard drives 3.5" can be installed separately at the bottom of the box inside the tunnel, thus avoiding the affect to your appearance. The ventilation slots in the tunnel, on the side or at the top, ensure optimum cooling of the hard drives. The base plate and the remaining components have a perfect wiring thanks to the cable outputs. The installation of a new heat sink for the CPU is extremely easy thanks to an opening on the motherboard tray. You can install a cooling tower up to 16.7 cm in height. The maximum length of the graphics card is 40 cm; power supplies with a maximum length of up to 20.5 cm, Three dust filters pre-installed to protect the hardware from contamination. For cleaning, easy to remove and put back. Another filter also comes pre-installed on the top panel, being equally easy to remove thanks to the magnetic clamping.

Design with no cables on the front panel

Another great advantage of the M25-W is the design with no cables on the front panel. The front panel can be easily removed without having to disconnect the cable one. This facilitates tremendously the installation of a disk drive of the 5.25" or 3.5".

Optimal preparation for a flow of air perfect

The front panel has numerous air inlets to the right and to the left, hidden behind the cover of grid, ensuring the supply of cold air. Also on the front panel, behind the dust filter, they come pre-installed two fans of 120 mm alternatively, are available the corresponding holes for the installation of two fans of 140 mm For the cooling water, the M25-W offers the possibility of incorporating in the front panel of a radiator of 240 mm or 280 mm, with a total height of 5.5 cm including the fan. On the rear panel of the box comes a pre-installed fan LED 120 mm Also, if you wish you can install also, under the magnetic filter of the top, three fans of 120 mm or two 140 mm aperture oval offer excellent opportunities to position perfectly fans or radiators.

Modern front connectors

Two USB 3.0 and two audio ports on the front panel provide easy access to connect peripheral devices and more important. The USB 3.0 ports are connected via a connector on the motherboard 19 pin.

Options assembly versatile

For optical drives, the M25-W offers two bays, a 5.25" drive with auto lock, without needs of tools for installation. By means of the attached cover bay 5.25" to 3.5", for example, can be entered quickly and easily to a card reader in one of the two bays by 5.25". If it is necessary, we will incorporate two 2.5" HDD/SSDs. If you need more space, the screwing of the bays can be completely removed. At the bottom of the box can be installed separately up to two hard drives to 3.5" or two 2.5" HDD/SSDs by means of a mounting adapter. There is also space available for another disk drive to 3.5" at the bottom of the box. Behind the motherboard tray of the M25-W, and above the tunnel, there are two assemblies for trays of bays to 2.5". This allows the installation, with the help of the relevant thumbscrews, up to two 2.5" HDD/SSDs.

Specifications for Sharkoon M25W:

• PORTS AND INTERFACES:
  • Number of ports type A USB 3.0 (3.1 Gene 1): 2
  • Audio input: If
  • Audio output: If
• WEIGHT AND DIMENSIONS:
  • Height: 465 mm
  • Width: 210 mm
  • Weight: 6.5 kg
  • Depth: 450 mm
• PACKAGING:
  • User Manual: If
• COOLING:
  • Diameter of front fans supported: 120 mm
  • Diameter of rear vents supported: 120 mm
  • Diameters of fans higher supported: 120,140 mm
  • Maximum front fans: 2
  • Maximum fans later: 1
  • Maximum fan top: 3
  • Front fans installed: 2x 120 mm
  • Fans rear installed: 1x 120 mm
• POWER SUPPLY:
  • Power supply included: No
  • Location of power source: Fund
• STORAGE MEDIA:
  • Hard drive sizes supported: 2.5,3.5"
• ERGONOMICS:
  • Cable management: Yes
  • LED indicators: If
• DESIGN:
  • Number of bays 2.5": 2
  • Number of ports 3.5": 3
  • Number of ports 5.25": 2
  • Maximum height of the CPU cooler: 16,7 cm
  • Product Color: White
  • Form Factor: Midi-Tower
  • Filter anti-dust: Yes
  • Forms of factor motherboard supported: ATX,Micro-ATX,Mini-ITX
  • Lighting: If
  • Illumination location: case Fans
  • Lighting color: Blue
  • Materials: Acrylic
  • Maximum length of the graphics card: 40 cm
  • Maximum length of PSU: 20.5 cm
  • Number of expansion slots: 7
  • Type: PC
