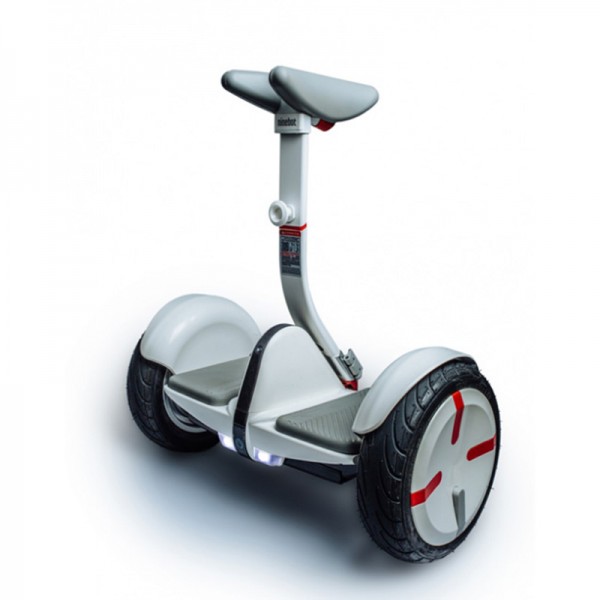

NINEBOT MINI PRO Blanco

It\'s called Ninebot Mini Pro, and it\'s a portable Segway. It\'s a little bit of a small size. The team has Segway\'s soul in part because the company was acquired by Xiaomi a few months ago, thus being the first product since the acquisition. It has 400W engine and 320Wh battery. With it we can reach a speed of more than 18 km / h, rise slopes of 15 degrees and travel up to 30 km with a load.

It stands out for its portable design, as it has removed the classic vertical bar from the Segway we knew, and instead has included a small removable mast that will serve as a support point for the knees and at the same time as a grip area to transport it. It also has a telescopic arm that serves to carry it without having to lift the equipment. This compact design allows for example that we can comfortably transport it in the car trunk, and also offers a central unit that we can update by means of future firmwars, as well as monitor the speed, route and state of the system through the mobile phone.

Dynamic

• Max. Speed: Aprox. 18km / h (11.2 mph)
• Autonomy: Aprox. 30 km
• Max.Torque (engine torque): 70Nm
• Nominal power Motor: 400Wx2
• Max. Power: 2100W
• Engine Control Mode: Senoidal vector wave control, algorithm (the current + speed closed-loop control algorithm)

Driving

• Max. Up angle: Aprox. 15 °
• Application ground: pavement, ground flat road, cost less than 15 °, jumps not more than 1cm, channels less than 3cm wide
• Distance to the ground: More than 80 mm
• IP: IP54 (weather, can be used in the rain)

Energy system

• Battery structure: 30 x 18650 high-power lithium battery units LG / Samsung
• Autonomy: Aprox. 30 km
• Nominal Power Loader: 120W
• Nominal input voltage: 100-240V, 50 / 60Hz
• Nominal output voltage: Aprox. 63V
• Load time: Aprox. 4H
• Smart BMS: Overvoltage / Low voltage / Short circuit / Overheating protection, Auto-Sleep / Wake-up, detailed battery information can be checked with APP-Ninebot
• Standard power consumption: 1,1 Kw / h per 100 km

Brake shock absorption

• Braking distance: 3.4m on dry ground
• Brake mode: somatic energy absorption of the engine brake and energy recovery
• Damping mechanism: High elasticity vibration absorption, magnesium alloy fuselage + damping pads

Bastille

• Material: magnesium alloy
• Tyres: 10.5 inches with low pressure chamber
• Shift: 6 inches magnesium alloy
• Steering control arm: Adjustable height in three heights, removable with one click, telescopic push handle

Lighting system

• Visual panel: White LED panel, battery level sample, bluetooth signal, computer lock, speed imitator indicator
• Headlights: double LED 3W x 2 headlamp for environmental lighting
• Pilot: automatic induction brake light, turn signal lud, also generates color atmosphere (full-color), the color pattern is adjustable through the APP

Smart system

• Smart adaptive learning algorithm: according to the weight and driving habits of the user, the output power, direction and safety limit parameters are automatically optimized as sensitivity, gradually adapting to the user\'s driving style
• APP: Instrument Panel, Automatic Fault Diagnosis, Remote Control Driving, Firmware Updates, Customized Settings, Community Interaction List
• Smart early security alert: Overvoltage / Low voltage / Short circuit / Overheating protection, Auto-Sleep / Wake-up, detailed battery information can be checked with APP-Ninebot

Driver requirements

• Beginner mode: Beginner mode limits vehicle speed until 1 km. After this tour, it automatically returns to normal mode. You can activate the beginner mode from the APP
• Recommended age: 16 ~ 50 years
• Recommended user height: height: 1,20 ~ 2 m
• Max. Load: 100kg
