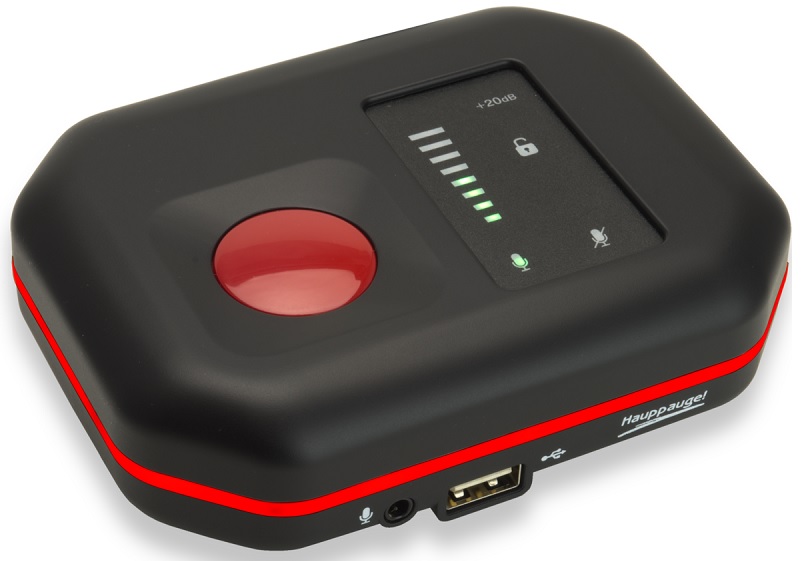

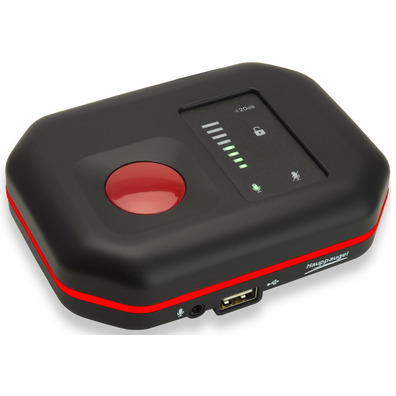

Hauppagge HD PVR3 Rocket

Technical specifications

 Hardware encoder:

• H.264 AVCHD high definition video encoder, video encode up to 1080p30 from HDMI or component video.

No delay HDMI pass through:

• HDMI or component in to HDMI out.

Recording data rate:

• 1 to 18 Mbits/sec.

Recording formats:

• MP4 in standalone mode, TS in PC connected mode

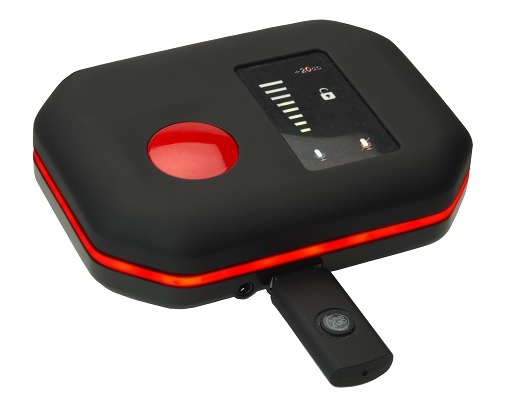

• USB thumb drive compatibility
• USB 2.0 or USB 3.0
• Size: from 1GB to 32GB
• Minimum transfer rate: 2.5 Mbytes/sec
• External hard disc compatibility: any self powered external storage drive with at least 2.5Mbytes/sec transfer rate

Audio mixer:

• Mixes game audio with microphone audio
• Supports both powered and unpowered microphones

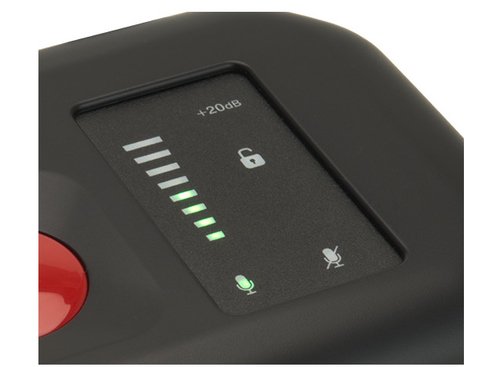

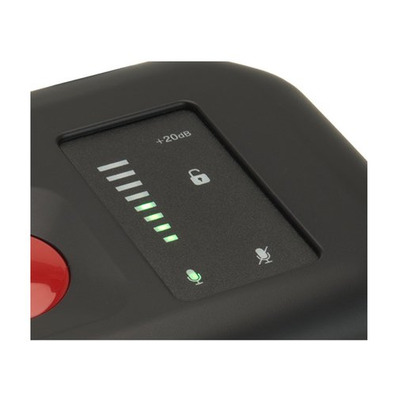

• Microphone volume adjust, +20db boost and mute

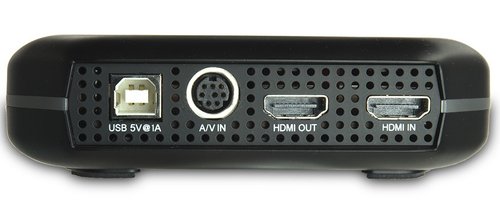

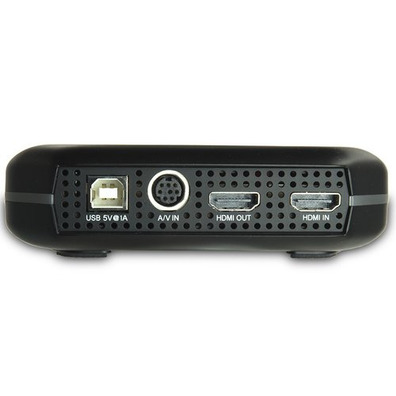

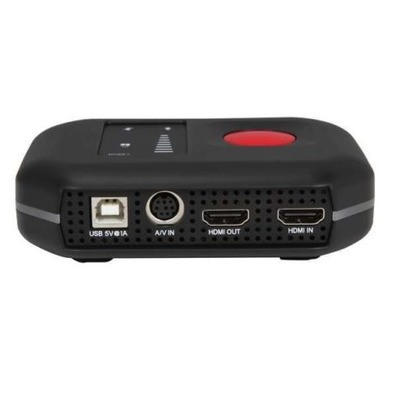

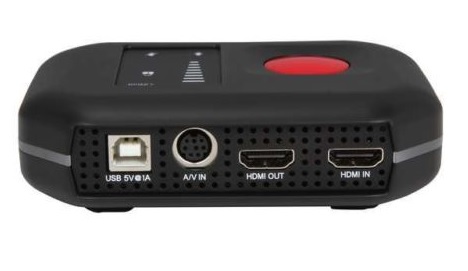

Input/output connections:

• HDMI from Xbox, PC game systems or other HDMI sources without HDCP
• Component video in from a PS3 with stereo audio

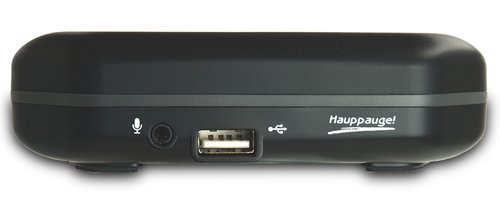

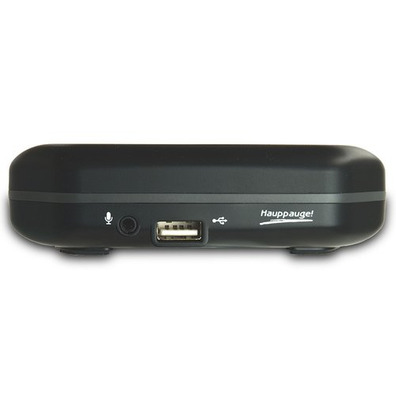

• 3.5mm microphone jack
• USB thumb drive connector
• HDMI output

Size:

• 4.75 inches x 3.5 inches x 1.5 inches
• Power: 5v @ 0.9 amps
• Weight: 4.6 oz

Bundled with Hauppauge Capture software applicaiton:

• Record your game play to your PC
• Record game commentary with game audio
• Fast trim
• Upload to YouTube

System Requirements

Connected to PC:

• Laptop or desktop PC with 3.0 GHz single core or 2.0 GHz multi-core processor (or faster)
• Microsoft Windows 8, Windows 7, Windows Vista with 1 GB RAM or Windows XP Service Pack 3 with 512 MB RAM
• HD TV set with HDMI input
• Graphics card with 256 MB memory
• Sound card
• 220 MB free hard disk space
• (Optional) CD-ROM drive (software can also be downloaded from here)

Stand-alone mode:

• USB Memory stick.
• A USB port for power (can be powered by a games console).
