Source of Seasonic G12 GC850 ATX 850W

Seasonic G12 GC850 ATX 850W Feed Source

The G12 GC series is available in the form factor ATX est &aetundar and in powers that are the common &aemats for a PC system. The series Seasonic G12 GC reaches the 80 PLUS Gold standard of providing at least 87%, 90% and 87% efficiency in the use of energy at 20%, 50% and 100% of operating loads, respectively. This efficiency, combined with the active power factor correction, allows the G12 GC series feed sources to reduce energy waste to, resulting in savings in energy costs to its users.

Adem &aUtits to be very efficient, G12 GC drives use the ñ or resonant converter LLC and the intelligent and silent fan control (S2FC) l &iaceruder in the industry.

Specifications:

• Regulatory Approvals
  • Acorde RoHS: S í
  • Certification &oatun 80 PLUS: 80 PLUS Gold
  • Certificate Energy Star: S &iaceras
  • Connectivity
    • Factor of form: ATX

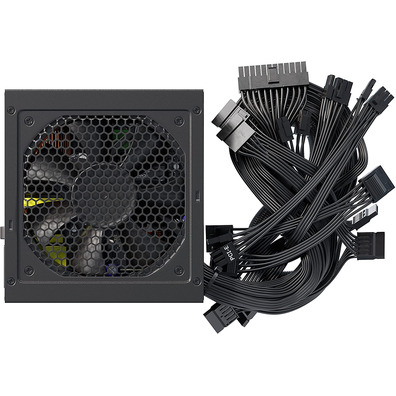

    • Type of cabling: Fixed
    • Power feeder &iacto for motherboard: 20 + 4 pin ATX
    • Power connector &iuteres to EPS (8-pin): 3
    • PCI Express power connectors (6 + 2 pin): 4
    • N Number of power connectors to SATA:
  • Weight and dimensions
    • Height: 86 mm
    • Width: 150 mm
    • Depth: 140 mm
  • Details t &eicnics
    • Color: Black
    • Integrated Power-On/Off Switch:   S &iute;
  • Power Control &iute; to
    • Nominal Power: 850 W
    • Output Current (+ 12V): 70 A
    • Maximum output (+ 5V): 15 A
    • Maximum output current (+ 5Vsb): 2.5 A
    • Output top (-12V) stream:   0.3 A
    • AC input frequency: 50-60 Hz
    • Power protection functions: Cortocircuit, Overcurrent, Overcurrent, &oatecn
    • M &axime power &iacties to: 850 W
    • Combined power (+ 12 V): 840 W
    • Combined power (+ 5 VSB): 12.5 W
    • Combined power (+ 3.3 V): 100 W
    • AC input voltage: 100-240 V
  • Cooling
    • fan: 120 mm
    • N fan number of fans: 1
    • Cooling type: Active
  conditions
  • Operating temperature interval: 0-50 ° C

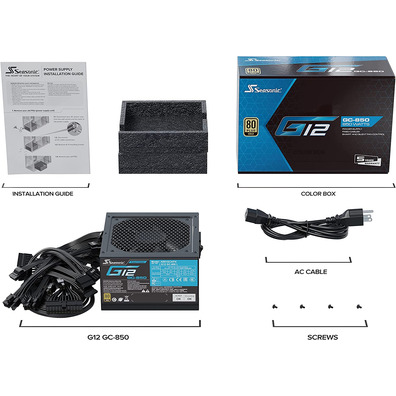

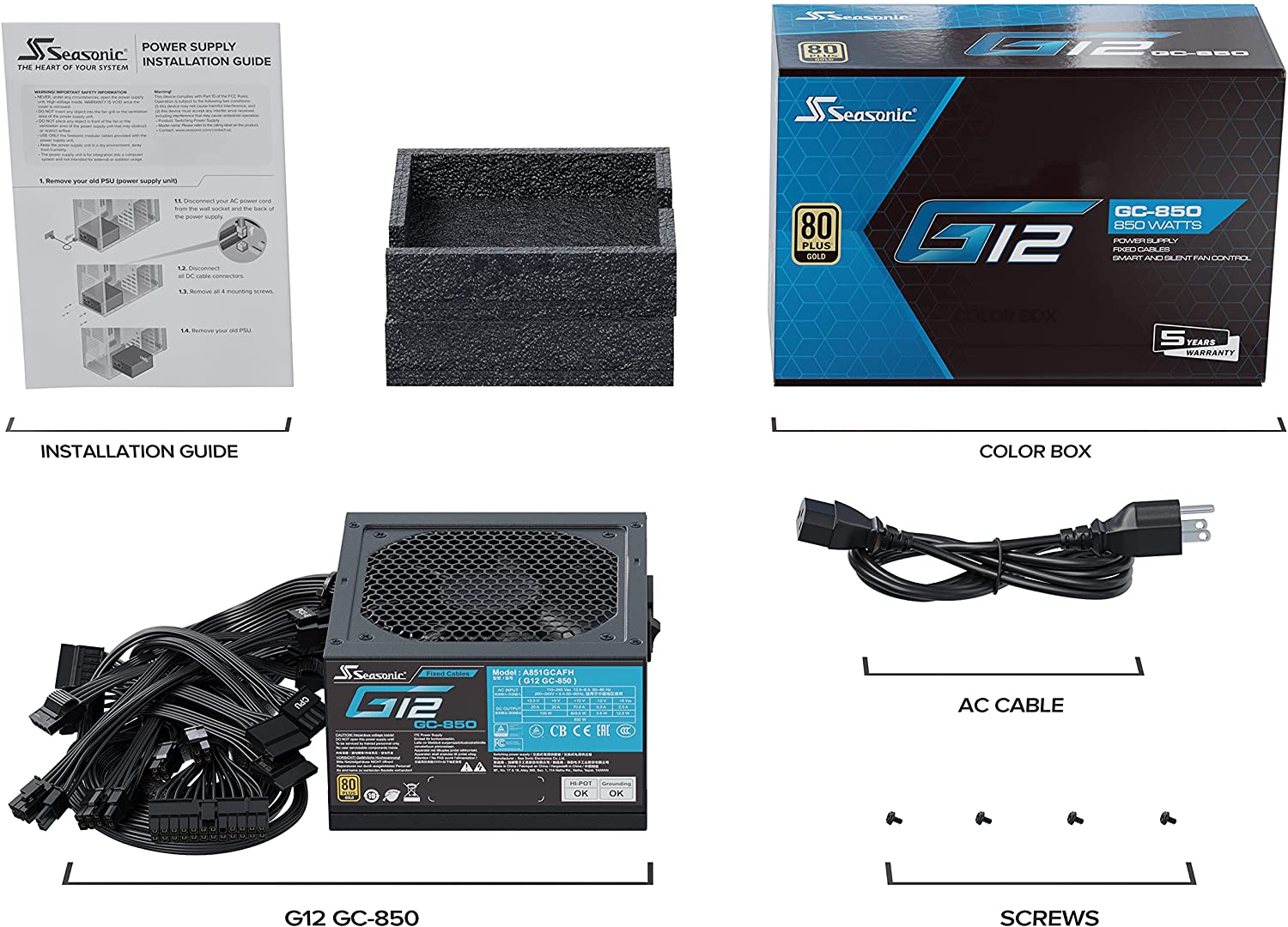

  • Packaging contents
    • User manual:   S &iute;
