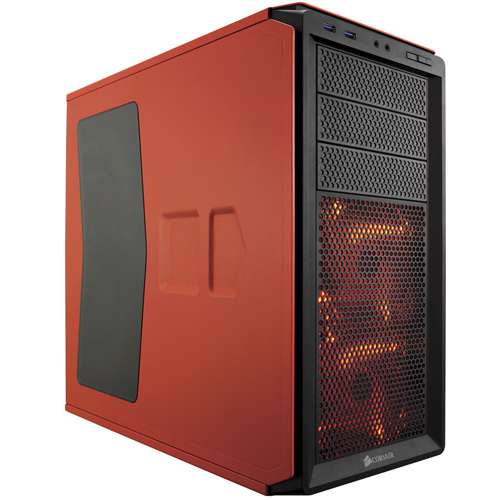

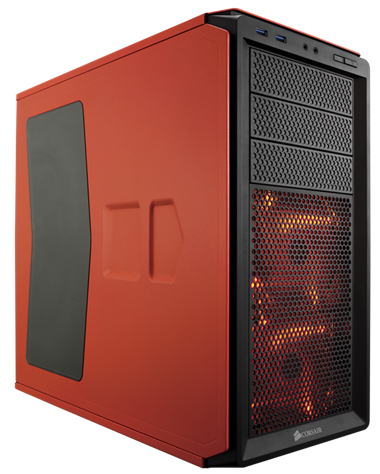

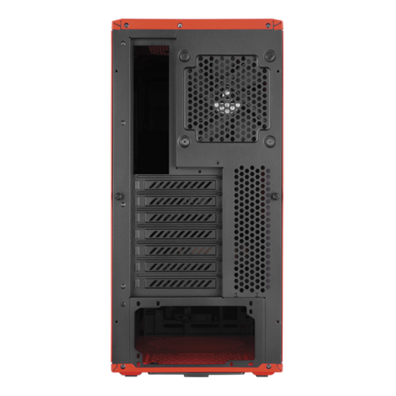

CORSAIR Graphite 230T Windowed Orange Tower

CORSAIR Graphite 230T Windowed Orange Tower

A quick and simple system assembly with a spectacular design

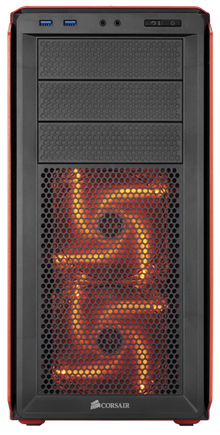

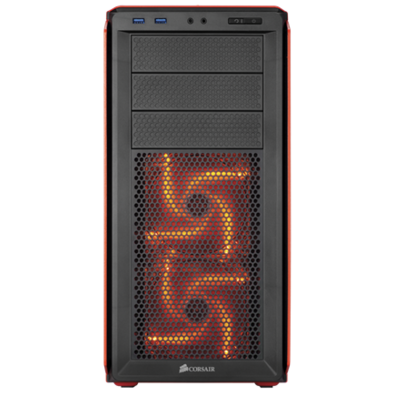

In Corsair we believe that, whatever your budget, the assembly of your PC must be simple and with excellent visual results. Choose the Graphite Series 230T chassis and the only time you will use a screwdriver will be when setting the base plate. Your custom-assembled PC will show an aggressive but refined look, with USB 3.0 and headphone front connectors for quick access. To all this we have to add the two LED front input fans for excellent cooling.

Whether you\'re assembling a PC for games or just replacing the boring old box, you\'ll be proud to own a spectacular design system that you will have assembled yourself..

Vanguard style
The Graphite Series range is at the intersection of high performance and spectacular design. The front inlet fans are covered with a soft LED light and the preformed exterior allows you to quickly assemble a fast system that is not only so, but also that looks so.

Refrigeration flexibility

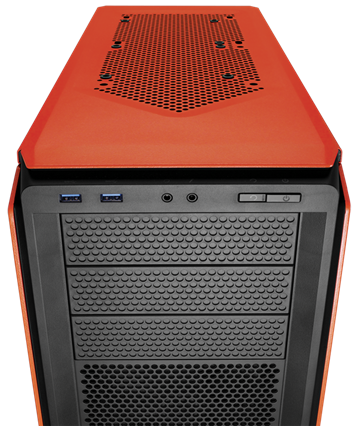

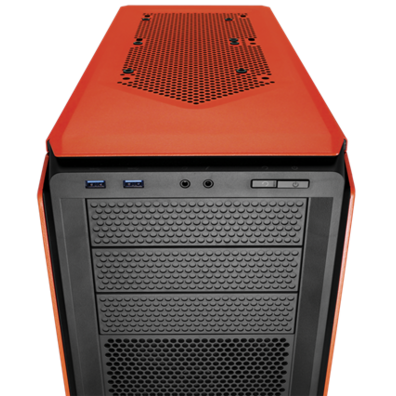

The 230T chassis includes two 120 mm front input fans with LED lighting and a 120 mm rear output fan. And there is room to add two 120 mm or 140 mm fans at the top, and a 120 mm or 140 mm fan at the bottom.

Assembly, maintenance and easy system updates

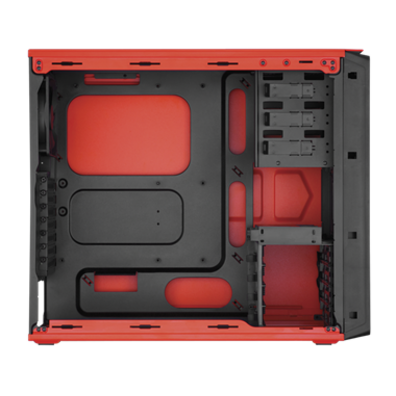

Side panels, PCI-E expansion slots and disk bays need no tools. Its innovative cable management system allows cleaner assemblies and better air circulation, and the space for the CPU allows for cooling extensions without having to remove the base plate. Input fan filters allow to remove dust from the inside and are easy to remove for cleaning.

dedicated SSD bay
The 230T chassis includes four bays for 2.5 "units for the storage of solid state units. And this in addition to the four bays of 3.5" and three bays for optical discs of 5.25. "

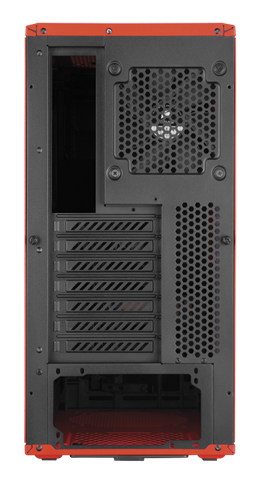

Seven expansion slots PCI-E
There is space for multiple GPU configurations for powerful game systems. Slots do not need tools, so exchanges and updates are faster.

Package content and specifications

• Compact chassis semitorre Graphite Series 230T
• Quick Start Guide
• Box of accessories with screws, flanges and other parts for assembly.
• Compatibility
• Mini ITX, micro ATX and ATX base plates
• Technical specifications
• Two 120 mm front LED fans and a 120 mm rear output fan
• Front panel for USB 3.0
• SSD, HDD and ODD installation without tools
• Preperforated holes for cabling management and space for CPU backup plate
• Seven PCIe slots with manual adjustment screws and space for 320 mm long GPUs

• Install up to four units of 3.5 "and four units of 2.5" simultaneously, without tools
• Up to six fan units for optimal cooling potential
• Dust filters for front input and PSU
• Space for up to PSU ATX 200 mm (not included)

Specifications

• Guarantee 2 years
• Weight 6,05kg
• Color Rebel Orange
• Mid-Tower chassis format
• Dimensions 505mm x 210mm x 440mm
• Base plate support of the Mini- ITX chassis, MicroATX, ATX
• Maximum length of GPU 360mm
• CPU 165mm maximum refrigerator height
• Maximum length of PSU 200mm
• Chassis expansion slots 7
• Bays for chassis discs (x3) 5.25in
• (x4) 3.5in
• (x4) 2.5in
• Steel chassis material
• ATX chassis power supply (not included)
• External connections (x2) USB 3.0
• (x1) Headphone Port
• (x1) Microphone Port
• Front fan mounting points: (x2) 120mm
• Top: (x2) 120 / 140mm
• Rear: (x1) 120mm
• Bottom (x1) 120 / 140mm
• Front included fans: (x2) 120mm
• Rear: (x1) 120mm
• Top radiator mounting points: 240 / 280mm
• Rear: 120mm
• Compatible with liquid refrigerators Corsair H55, H60, H75, H80i
