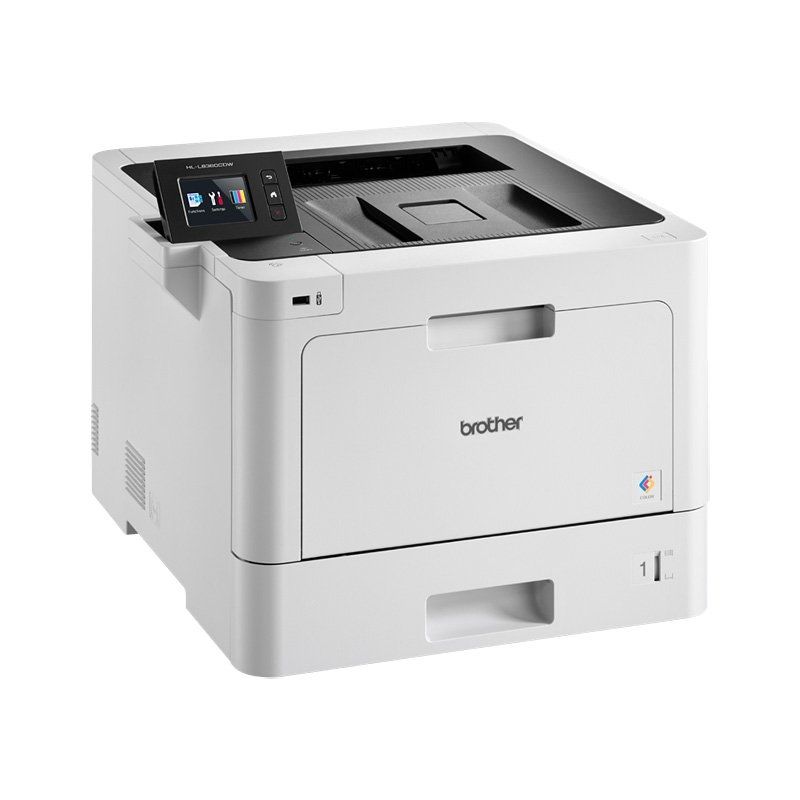

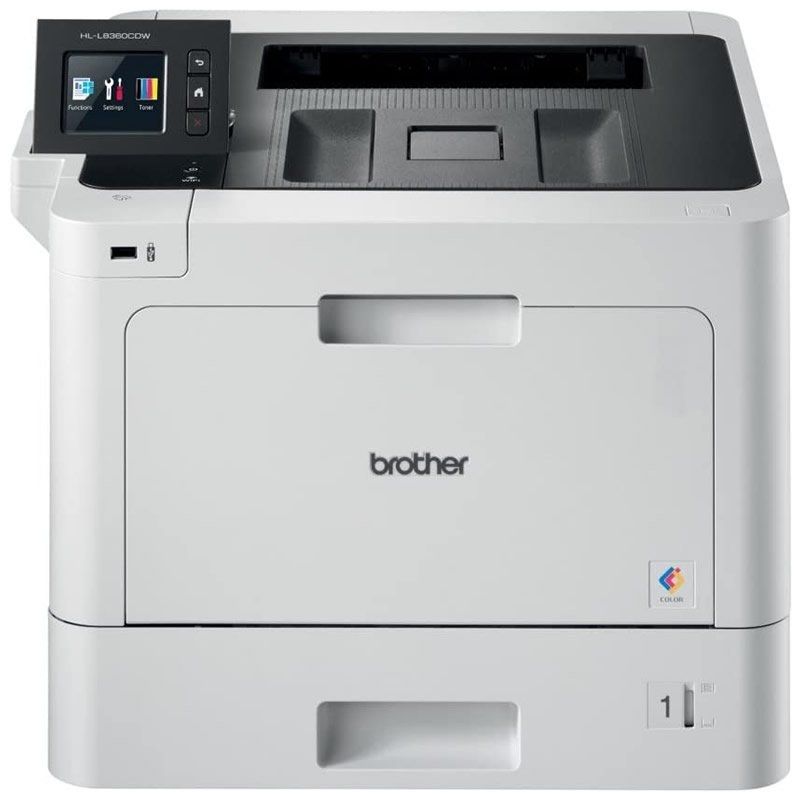

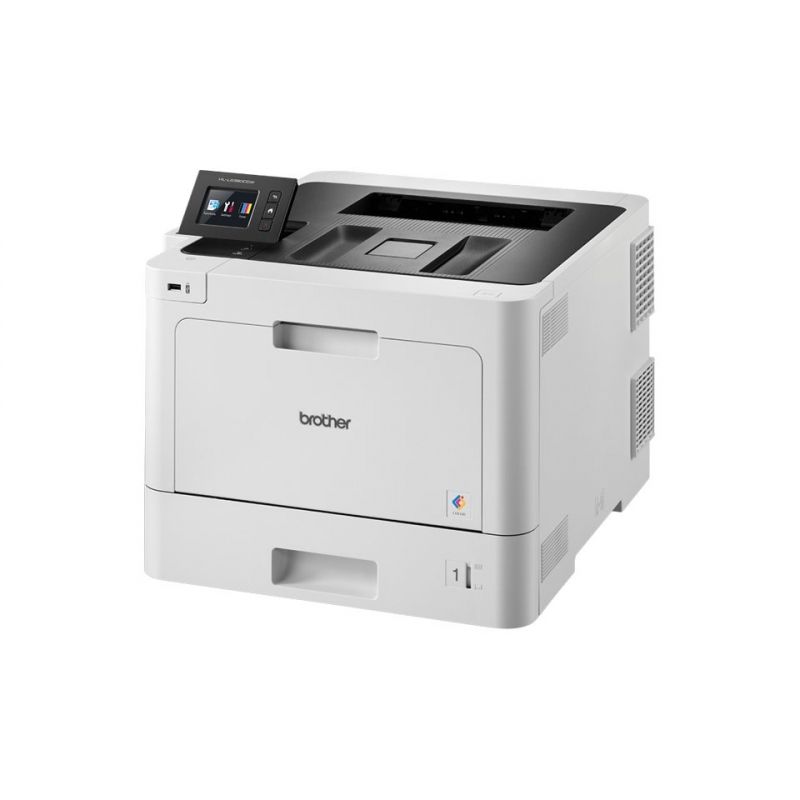

Brother HL-L8360CDW Wifi / White Duplex Laser Printer

Brother HL-L8360CDW Wifi / White Duplex Laser Printer

The printer HL-L8360CDW is recommended for high production environments, with total printing requirements up to 4000 pages per month. The printing speed of up to 31 pages per minute, 512MB memory, 800MHz main processor and 133MHz secondary processor dedicated exclusively to color printing. Double-sided printing for documents in prospectus format, reducing paper consumption. Your network connection options (wiring or WiFi) allow the printer to be used by several users without jamming or waiting. It has a USB slot on the front to print without computer or from USB Flash memory cards. Easy to use thanks to its 6.8cm color touch screen. It allows printing from mobile devices using iPrint & Scan from Brother, or one of the different applications available such as Airprint, Google Cloud Print or Modria.

Security

• Safe printing: protect the confidential documents, simply by introducing a PIN code to print the works.
• It has NFC reader for user authentication.

Paper handling

It has a paper tray with capacity for 250 leaves and an output capacity of 150 leaves. Optional 250-leaf trays (max.3), 500-leaf (max.2) or a 4-leaf trays tower can be added to increase paper capacity (up to a maximum of 2330 leaves). It also has a multi-purpose tray with capacity for 50 sheets that allows to work with different paper formats, such as envelopes or thicker papers.

Consumers

Brother consumables provide professional printing quality, with excellent results. The printer can use toner with different capabilities to fit the duration to the printing needs:

• Toneres Cian, Magenta and Yellow, of 1,800 pages (included with equipment), of long duration of 4,000 pages each color or of super long duration of 6,500 pages.
• Black toner of 3,000 pages (included with equipment), long duration of 6,500 pages or super long duration of 9,000 pages.
• In the event that one of the color toners is exhausted, it allows to continue printing in black and white until the black toner is exhausted ("only BK" mode).

Specifications:

• General
  • Type of printer: Color
  • Functions: Printing
  • Technology: Laser
  • Screen size: 6,8 cm
  • Laser classification: Laser Product Class 1 (IEC60825-1: 2007)
  • Memory: 512 MB
  • Processor: Main: 800MHz - Sub: 133MHz
• Connectivity
  • Connectivity: Cable network, WiFi, USB
  • Wireless network interface: IEEE 802.11b / g / n
  • NFC: Yes
  • USB interface: Hi-Speed USB 2.0 (USB 3.0 compatible)
  • Wi-Fi Direct: IEEE 802.11g / n
  • Cable network interface: 10Base-T / 100Base-TX / 1000Base-T
• Mobile connectivity
  • Compatible: AirPrint, Android Print Service Plugin, Google Cloud Print 2.0, iPrint & Scan, Mopria, WiFi Direct
• Dimensions and weights
  • No box: 441 (An) x 486 (F) x 313 (Al) mm
  • Weight: 21.9 kg
• Energy consumption
  • Operation: 580 watts
  • Silent mode: 340 watts
  • List mode: 70 watts
  • Hibernation: 1.5 watts
  • Energy consumption: 580 watts
  • Off: 0.03 watts
  • Energy saving: Yes
  • Sound power level: 49 dB
  • Sound pressure level: 6.56 dBA
  • Toner Savings: Yes
  • Electric consumption: 1.8 Watts
• Includes
  • Content: Toner, drum, drag belt, residual toner container, power cable, software and controllers for Windows ®, quick configuration guide. PC connection cable not included
• Specifications of support
  • Types and grasses: Standard tray - normal paper, recycled, coloured and letterhead (between 60 - 105g / m2). Multipurpose trays - normal paper, recycled, bond, coloured, letterhead and glossy (between 60 - 163g / m2).
  • Tasks: Standard trays - A4, Letter, A5, A5 (longitudinal), A6, Executive, Legal, Folio, Mexico Legal. Multipurpose Tray - Width: 76.2mm to 215.9mm x Long: 127mm to 355.6mm.
• Network
  • Safe printing: Yes
  • Wi-Fi Direct: Yes
  • Network security: SMTP-AUTH, SSL / TLS (IPPS, HTTPS, SMTP), SNMP v3, Kerberos, IPSec, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TLS)
  • WiFi network security: WEP 64 / 128 bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES), SMTP-AUTH, SSL / TLS (IPPS, HTTPS, SMTP), SNMP v3, Kerberos, IPSec, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
  • Secure function block v2: Restrict printing of individual users or groups on the network. Can be used with the PC username up to a maximum of 200 users
  • Cable network: Ethernet 10Base-T / 100Base-TX / 1000Base-T
  • WiFi applications: Yes
  • WiFi network: IEEE WiFi 802.11b / g / n (Infrastructure / Adhoc mode)
  • Support WiFi configuration: Yes
• Operating systems and software
  • Software included - Windows: Software and controllers for Windows
• Paper handling
  • Paper entry: 250-leaf tray. 50-leaf multi-purpose tray.
  • Paper output: Face down - 150 leaves. Face up (direct output of paper) - 1 sheet
• Printing
  • A4 printing speed: 31 pages per minute
  • Monochrome A4 printing speed: 31 pages per minute
  • Double-face A4 printing speed: up to 14 pages per minute
  • A4 printing speed: up to 31 pages per minute
  • Resolution: 2.400ppp (2.400 x 600ppp), 600 x 600ppp
  • Printing speed color to double face A4: 14 pages per minute
  • Single-chromium printing speed on double side A4: up to 14 pages per minute
  • Automatic double-sided printing: Yes
  • Emulations: PCL6, BR-Script3 (PostScript3TM Language Emulation), PDF 1.7, XPS
  • Printing time 1st page: Less than 15 seconds
  • Recommended monthly volume: Up to 4,000 impressions
• Solutions
  • Compatible: AirPrint, Android Print Service Plugin, b-guard, Box, Brother Apps, BSI, Dropbox, Google Cloud Print, Google Drive, iPrint & Scan, Managed Print Services, Mopria, OneDrive
• Comfortable and accessories
  • Accessories: LT330CL: Optional 250-leaf tray (max. 3). LT340CL: Optional 500-leaf tray (max. 2). CH1000: Card reader support. ZUNTBC4FARBLASER: White pedestal table
  • Long-term toner: Black toner (TN426BK) - 9,000 pages. Tóner cian (TN426C), Tóner magenta (TN426M) and Tóner yellow (TN426Y) - 6,500 pages
  • Toner included: Toner black - 3,000 pages. Tóner cian, magenta, yellow - 1,800 pages
  • Optional bottom tray: LT330CL: Optional 250-leaf tray (max. 3). LT340CL: Optional 500-leaf tray (max. 2).
  • Comfortable: Tambor (DR421CL) - Aprox. 50,000 pages (at 3 pages for work). Aprox. 30,000 pages (at 1 page per job). Beam belt (BU330CL) - Aprox. 130,000 pages (at 3 pages per job). Aprox. 50,000 pages (at 1 page per job). Waste toner container (WT320CL) - up to 50,000 pages.
• Direct printing / scanning
  • Print from: Print directly from a USB flash memory. Compatible formats: PDF version1.7, JPEG, Exif JPEG, PRN (created by the printer\'s own controller), TIFF (scanned by a Brother computer), XPS version 1.0
• WEB CONNECT
  • Print from: Yes
  • Scanning to: No
