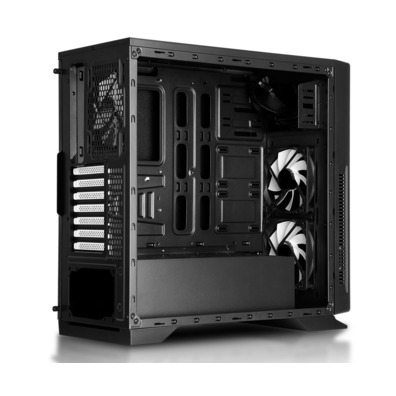

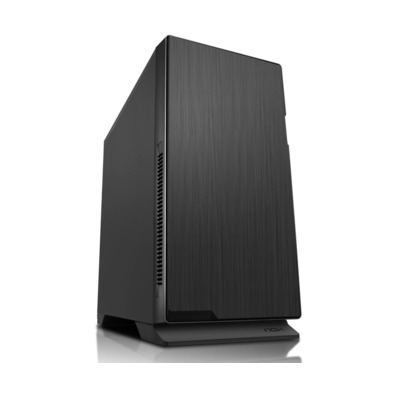

ATX NOX Hummer ZN Black 3.0

Hummer ZN
The Hummer series is extended with Hummer ZN, a quiet tower with wide possibilities inside, a large cooling system and a well-maintained and elegant aesthetic.

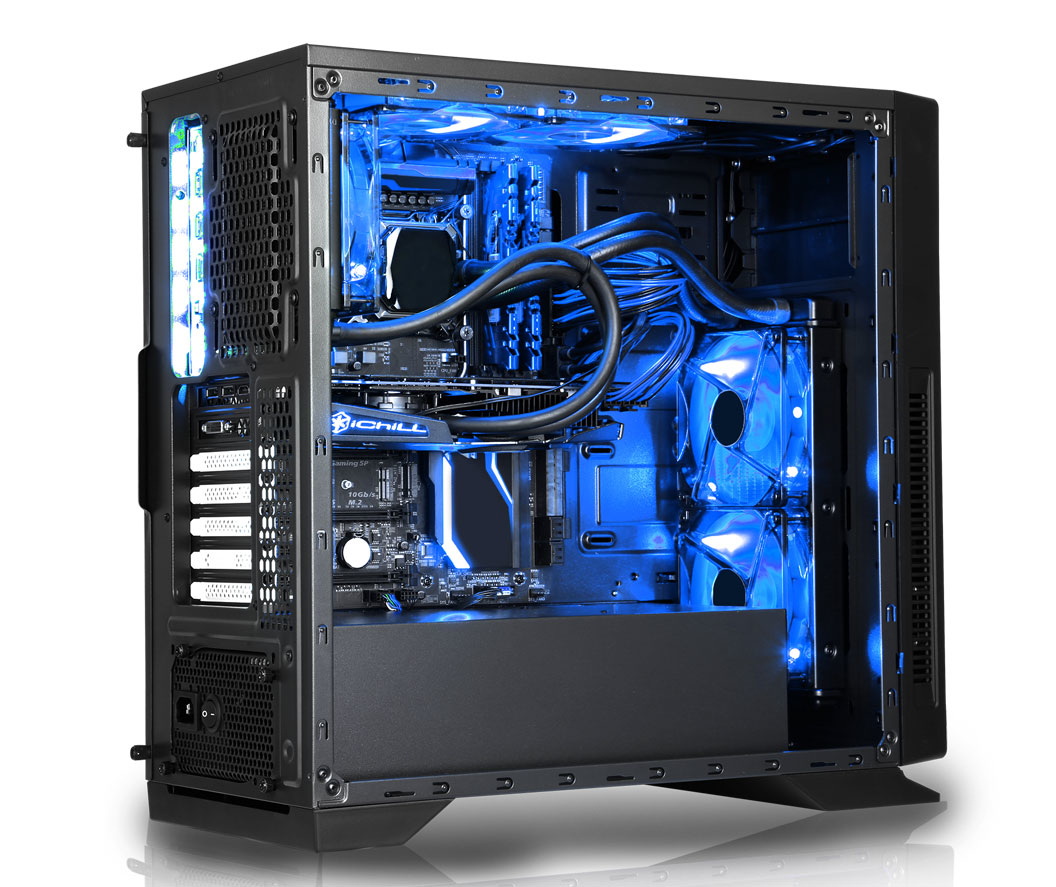

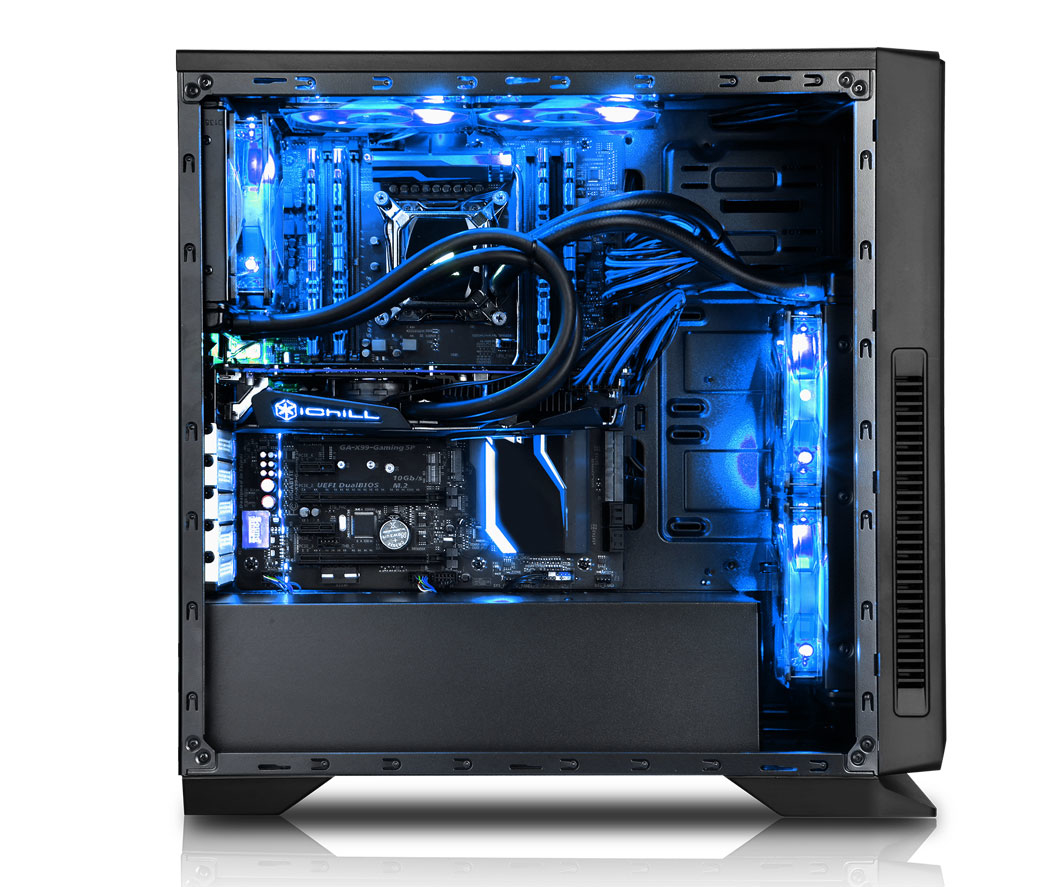

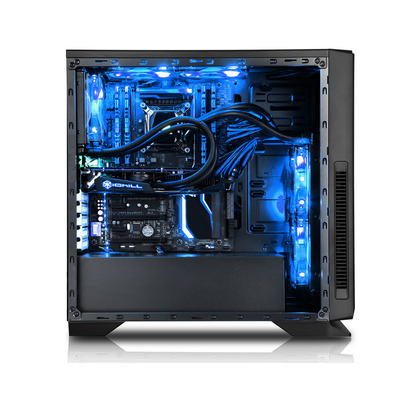

A high-performance equipment requires superior cooling, which allows to maintain the operation of all the components in perfect condition, so Hummer ZN offers the possibility to house in its interior liquid cooling systems, as it incorporates among other hollow details pass tubes.

Hummer ZN has space to mount 3 radiators, a 120 / 240 mm front, a 120 / 240 mm top and a 120 mm rear, so it offers infinite combinations to house a superior cooling system.

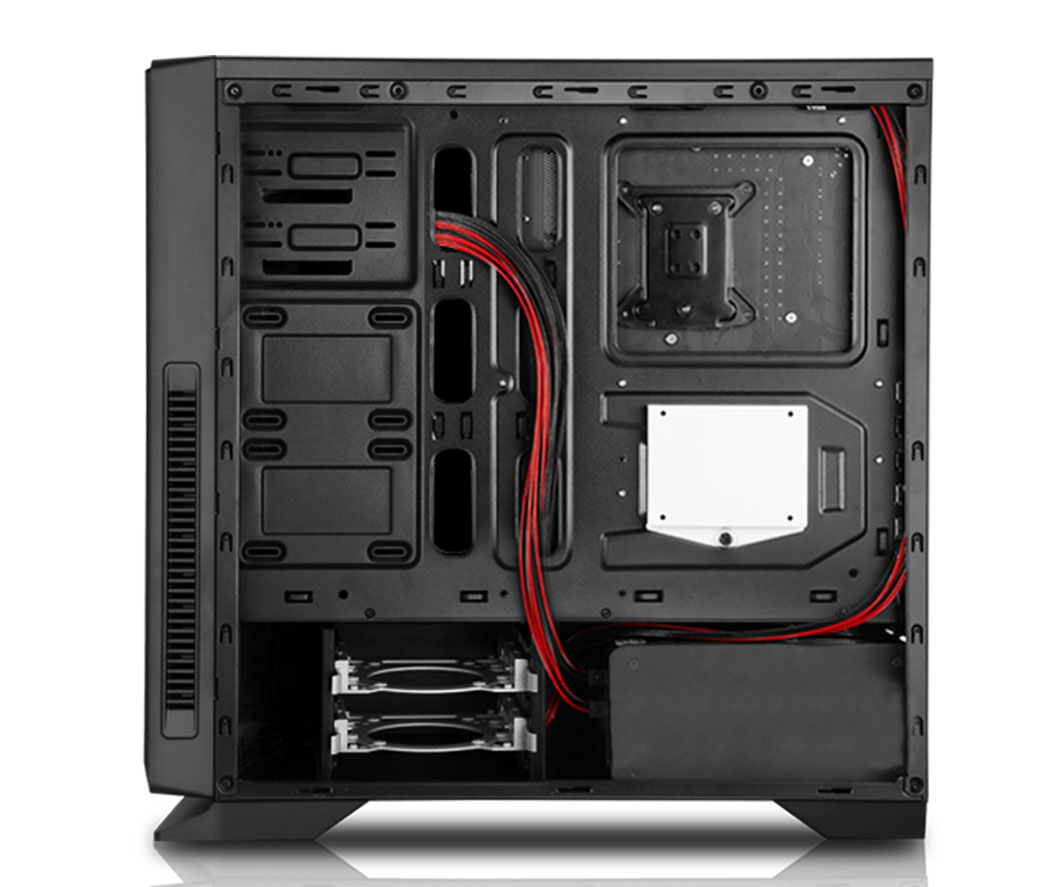

On the other hand its side has the space necessary for a proper management of the cabling, so it is possible to make a clean and orderly assembly, so that nothing influences the air circulation.

Large storage capacity

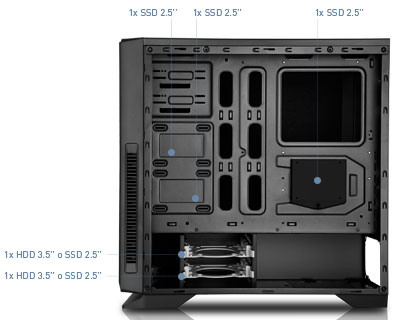

Hummer ZN has room to install up to 7 storage units, as it has two external bays of 5.25 "and capacity for five more units inside, two of 3.5" on the bottom and three SSD of 2.5 "on the sides.

This Hummer ZN particularity allows you to install three SSD on the chassis side panel, behind the base plate, making better use of the inner space and helping to improve the air flow. In addition, it is possible to take advantage of the lower bays of 3.5 "by installing a 2.5" SSD in place.

Greater comfort and simplicity. Hummer ZN has two removable trays for installing hard drives without tools.

• Spam for damping the sound on front, side and top panels
• Elegant matt finish
• Isolated PSU and hard drive compartment for optimal cooling performance
• Card reader
• Speed controller for up to 5 fans
• Dust filters
• Great choice for liquid cooling systems
• Includes 3 120 mm fans
• High-speed USB 3.0 connection
• Excellent system to order the cables
• Space to install up to 5 fans
• Compatible with large graphics


Elegant design

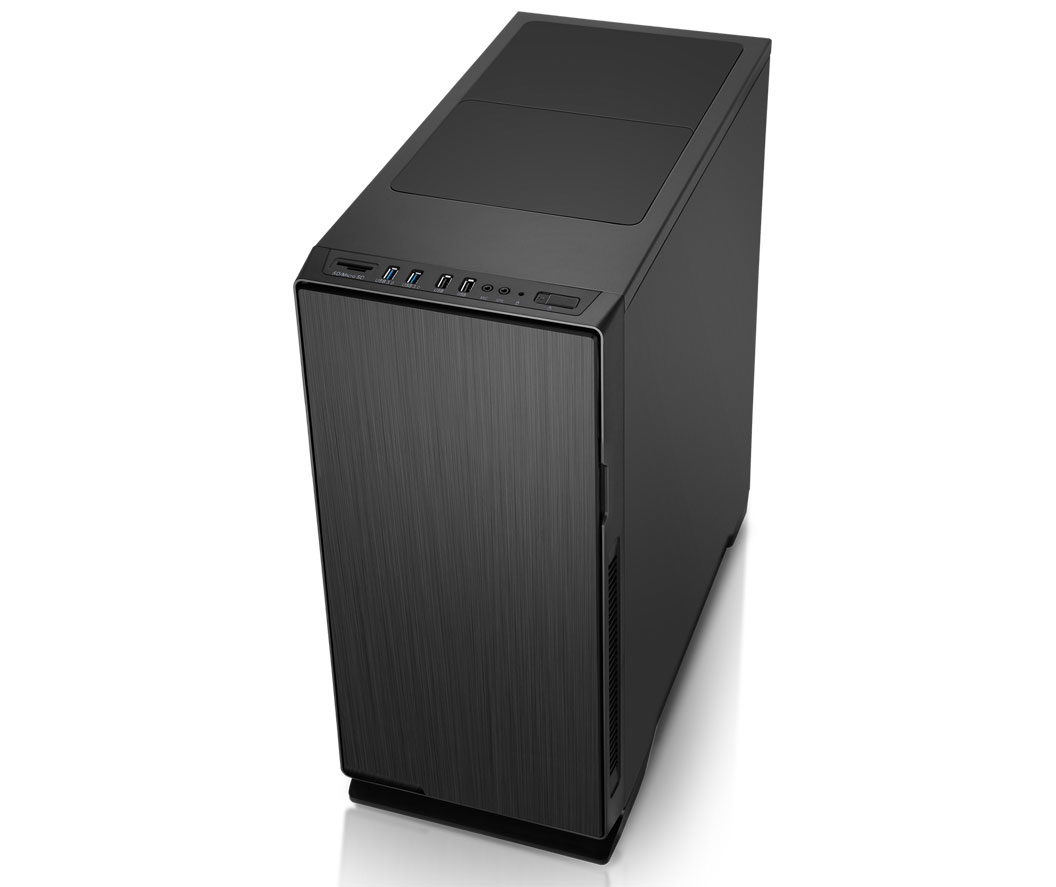

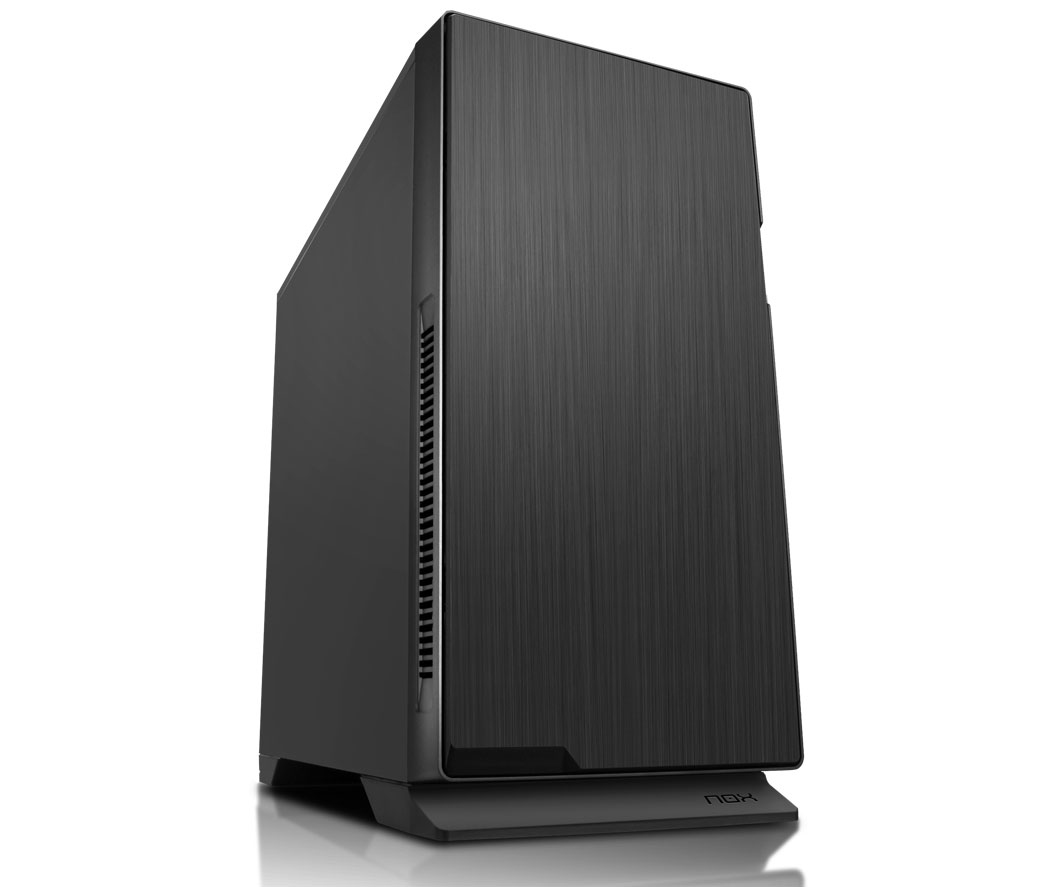

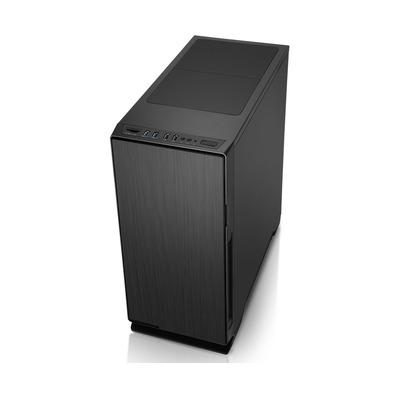

Hummer ZN has been designed for those who need a high-performance team, but silence is essential. It is a chassis in semitorre, robust and sober format, designed completely in black, both on its exterior and inside.

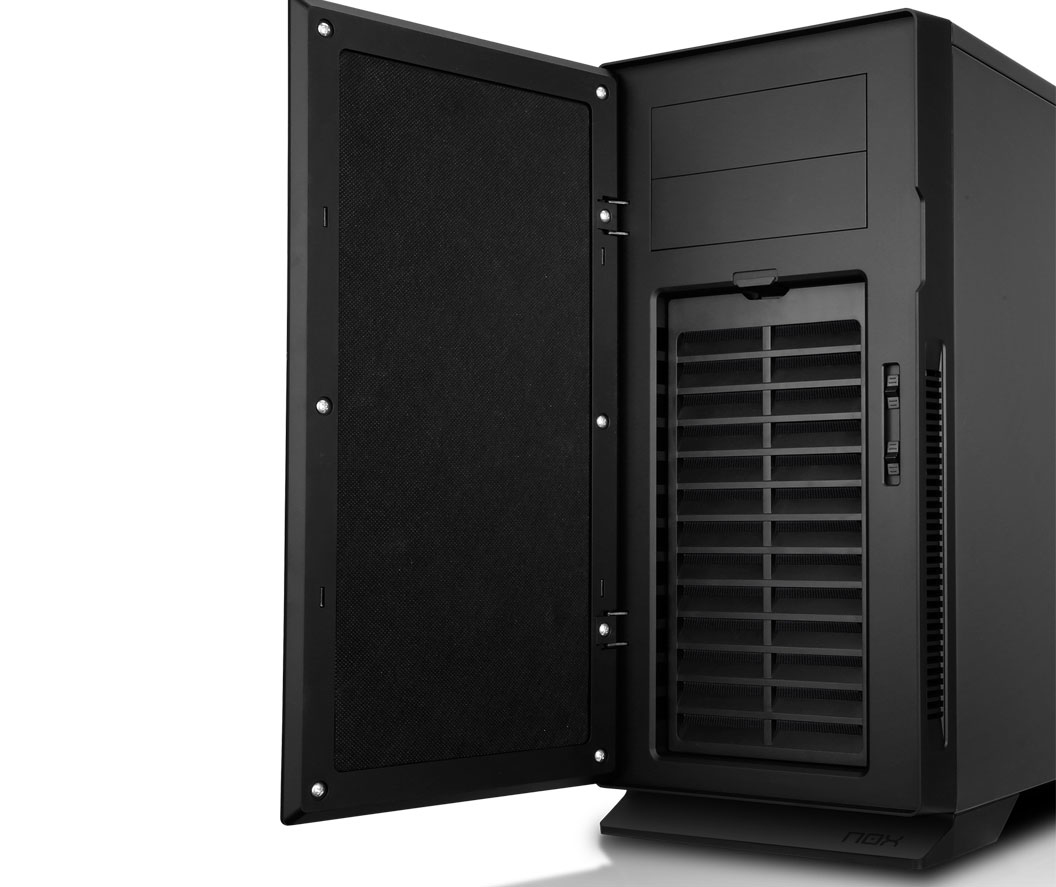

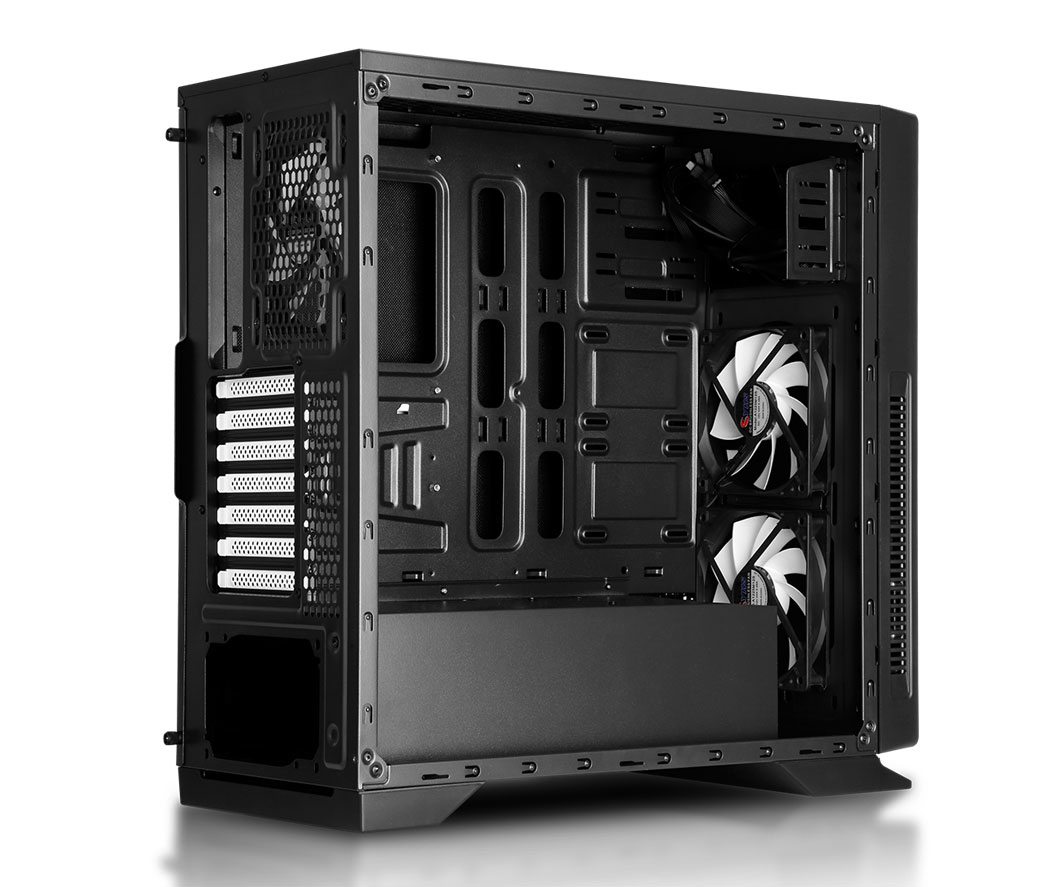

Its front has a brushed aluminium finish, making it an elegant chassis of excellent finishes. After its front door, there are the two 120 mm pre-installed fans and the controllers to regulate their speed.

Easy access

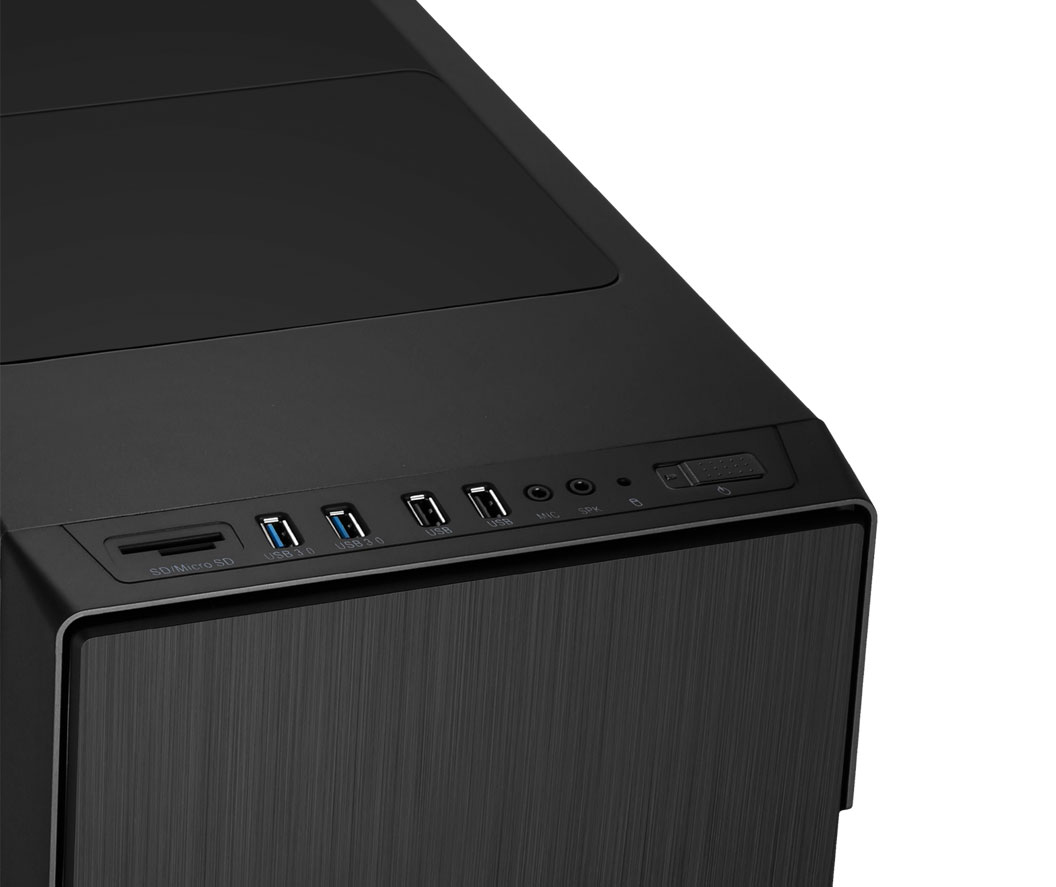

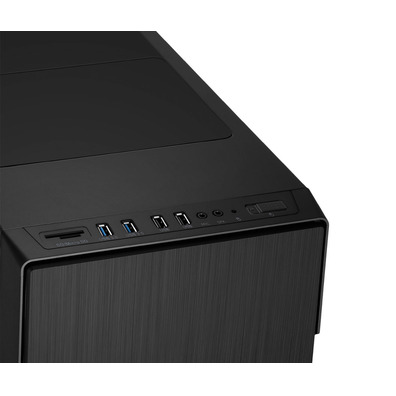

In the top panel we find two USB 2.0 ports and two USB 3.0 ports, as well as audio connections. In addition, Hummer ZN has an extra; micro SD and SD card reader, which allows a comfortable and accessible data transfer to the equipment at all times.

Isolated compartment

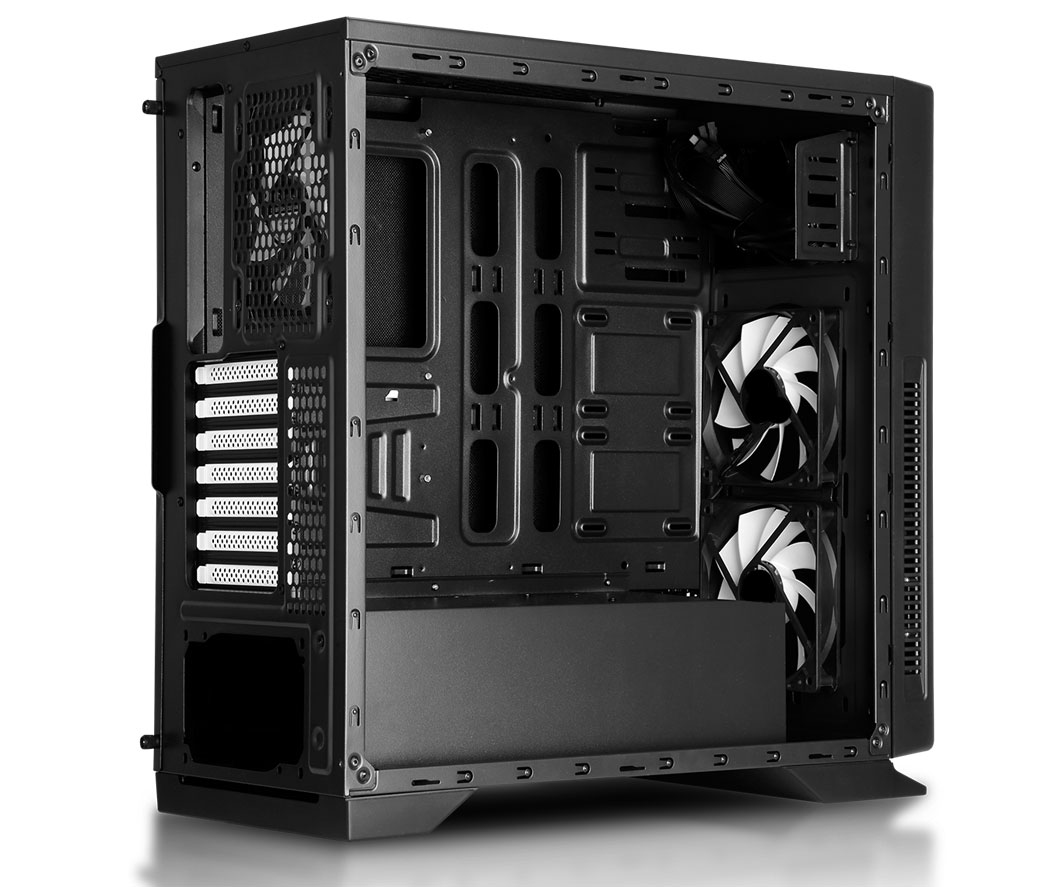

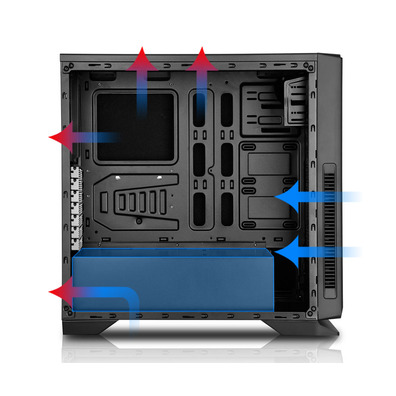

Hummer ZN has been designed to make the air flow within the equipment optimal. It has three 120 mm pre-installed fans, two on the front and one on the back. In addition, it is possible to install two additional 120 or 140 mm fans at the top.

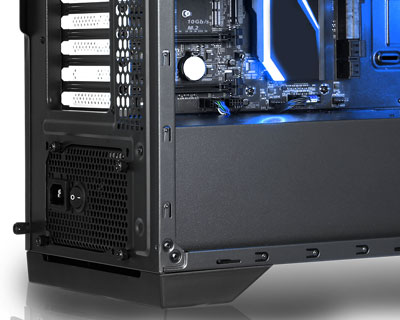

It has a compartment at the bottom to locate the PSU and hard drives, so that the heat released by them is not transferred to the other components.

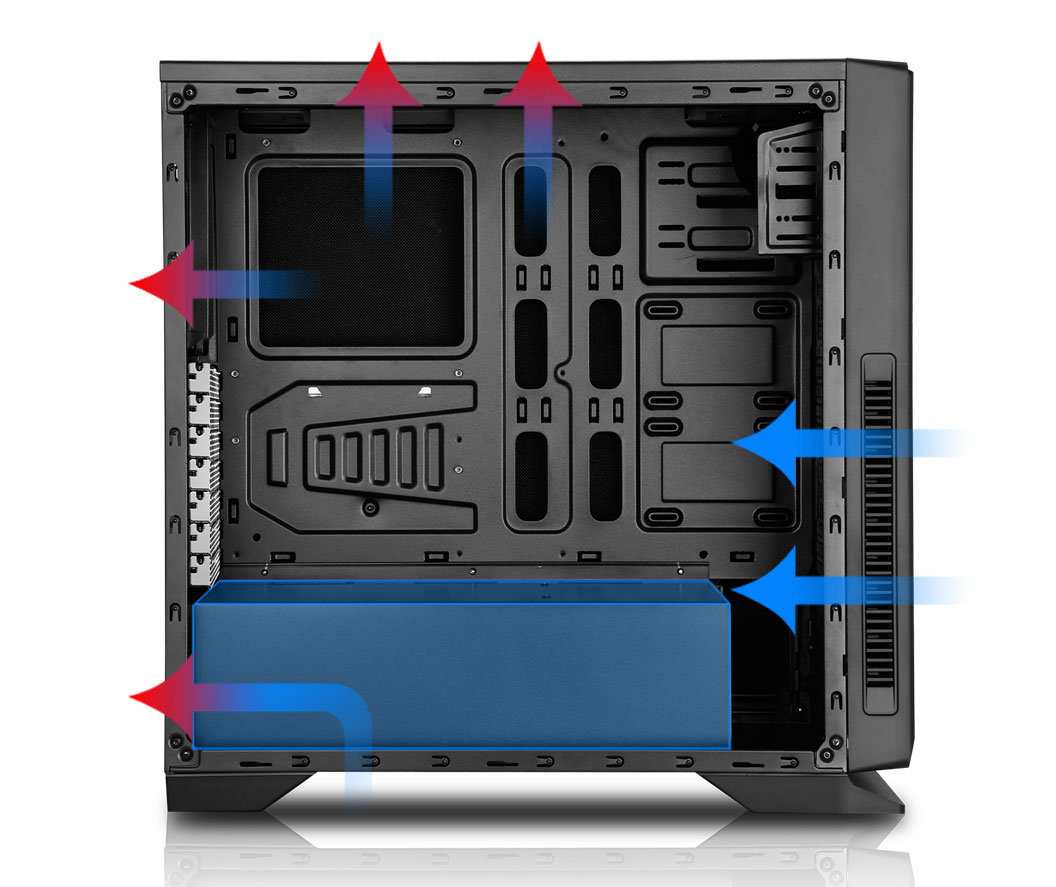

Thanks to the front grid and fans, the cold air flow rate will enter directly inside to refrigerate the graph and other components. The disposition of the PSU and the rear fan will help to drive all the heat outside, allowing an effective air flow.

Silent chassis

Hummer ZN is an extremely silent chassis. This is possible thanks to the soundproofed panels that it incorporates on both sides as well as on the front and top panel, which will absorb any noise or vibration that the components produce.

Specifications:

ATX base plate; ATX Micro
Ventilation system • Frontal: 2x 120 mm (included)
• Back: 1x 120 mm (included)
• Higher: 2x 120 / 140 mm (not included)
External bays 2x 5.25 "
Internal bays 2x 3.5 "; 3x 2.5"
Material • SPCC 0.7mm steel chassis
• ABS plastic front panel
Expansion slots 7
2x USB 3.0 ports;
2x USB 2.0; HD Audio; Mic
Black
Power supply Standard compatible ATX source (not included)
Space • Cooler CPU: 175 mm (maximum height)
• VGA: 415 mm (maximum length)
Dimensions 230 x 467 x 483 mm (AN x AL x PR)
Weight 8.3 Kg
